Clark CLXC-P Series Single Jet Totalizing Water Meter 5/8 x 3/4 1 Pulse Per 10 Gal

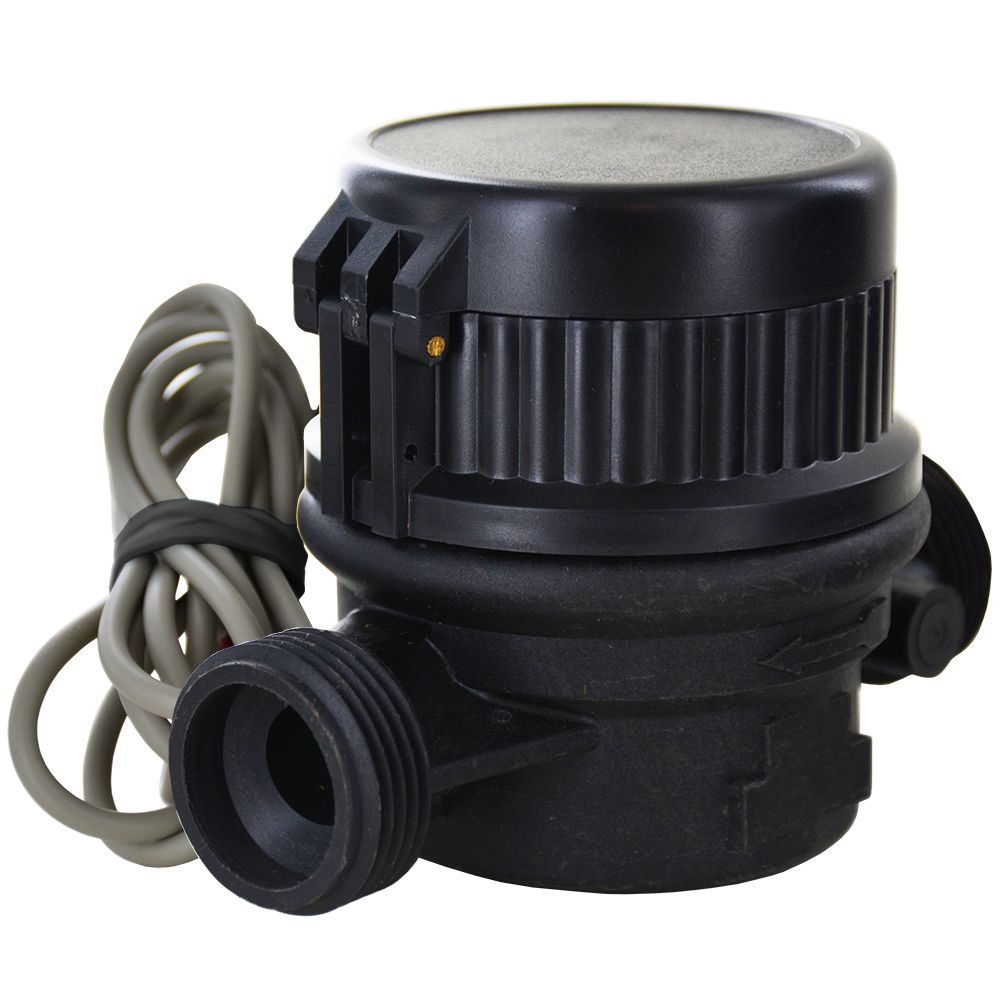

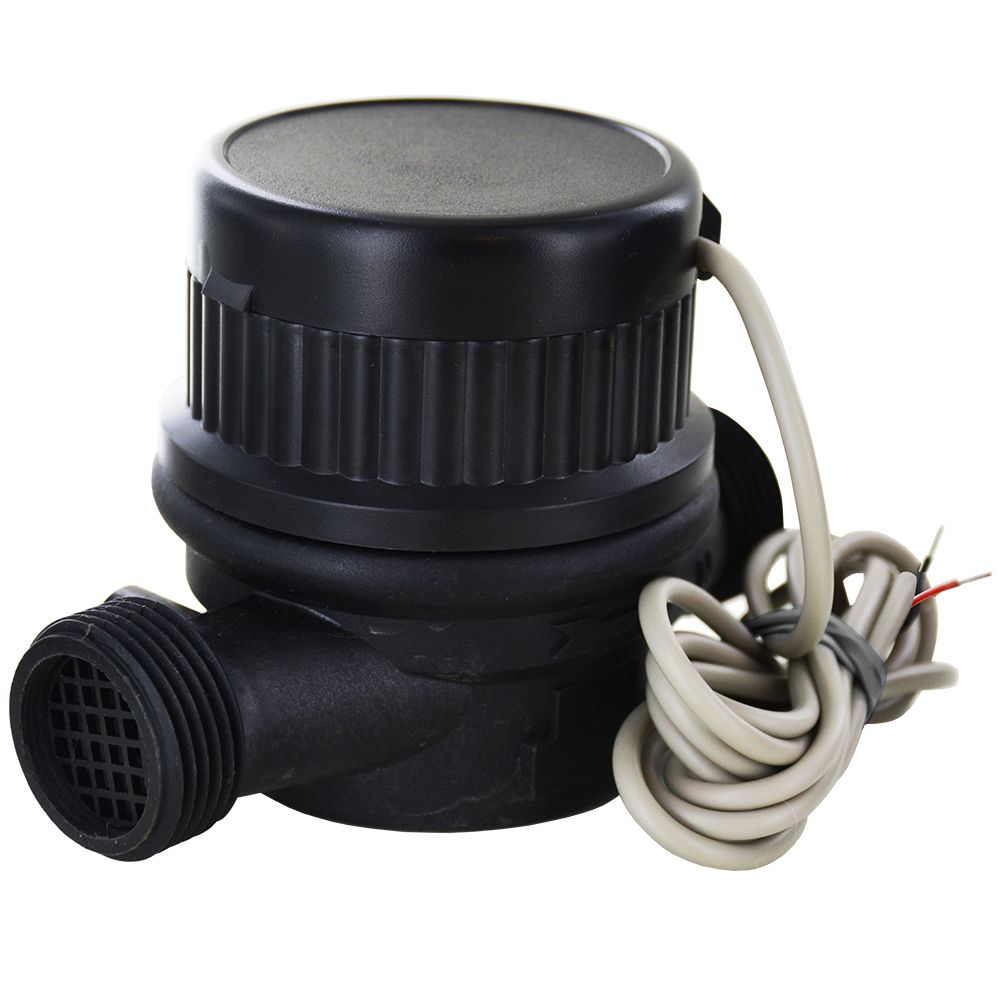

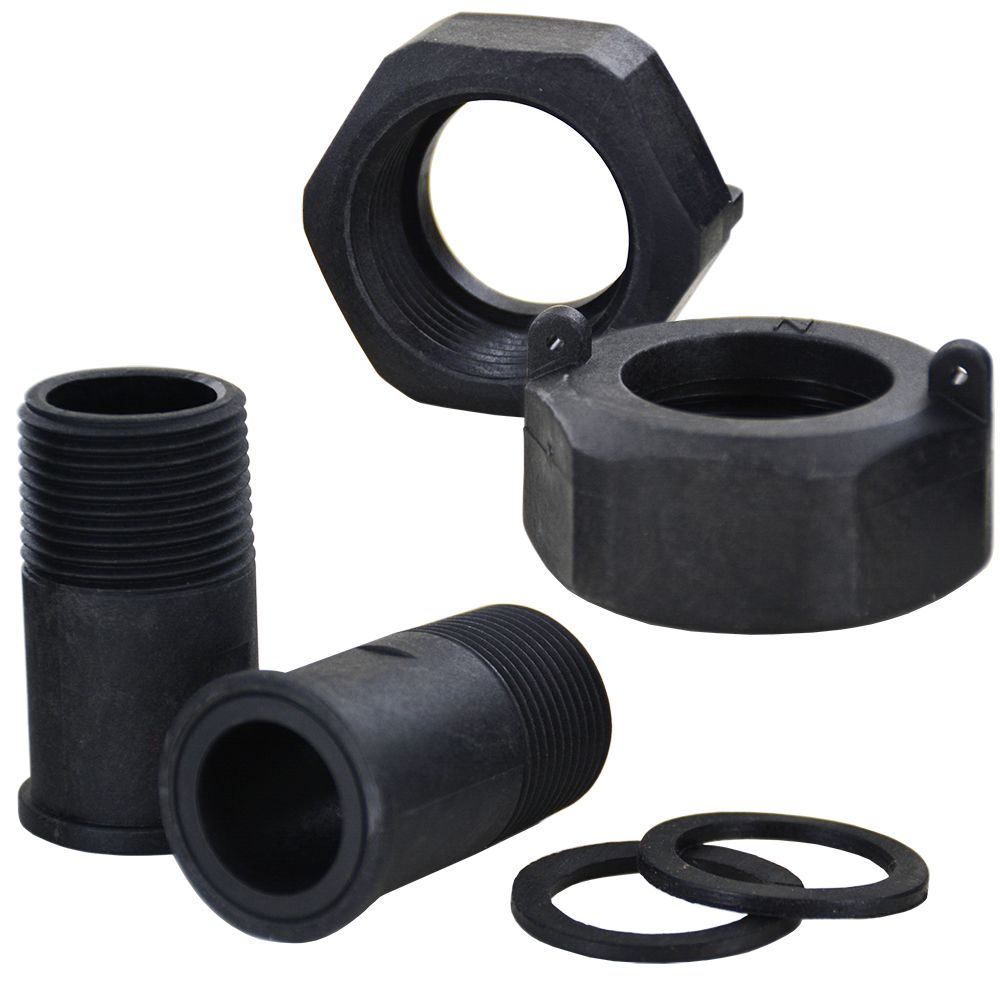

The CLXC-P-20D-C-S10 Cold Water Meter is a single-jet dry type totalizing water meter. These accurate and reliable meters are an ideal choice for a range of sub-metering applications for apartment and commercial buildings, as well as marinas, RV and camping parks. It is highly recommended to install it at a horizontal orientation. Each meter is supplied with a coupling (tailpiece) set that includes two couplings and 2 gaskets.
This meter has been tested and certified by the Water Quality Association to meet ANSI/NSF Standard 61 for materials safety. It has also been tested to ANSI/NSF Standard 372 for lead free compliance.
This meter offers a quality and reliable water meter at an affordable price compared to alternative water meters on the market. In addition to be an economical choice, having a water meter installed can also save you money on your water bill by allowing you to be charged only for the water you use, and making your more aware of your water usage.

Features and Specifications:

Cold Water Meter
Lead free
Accurate & Reliable
WQA certified to ANSI/NSF 61 & 372
Produced in a ISO9001 certified facility
Nominal Flow Rate: 11 GPM
Flow Rate: 0.22 - 22 GPM
Max. Operating Pressure: 150 PSI
Max. Pressure Drop: 15 PSI
Pulse: 1 pulse per 10 gallons
Major Dial Division Reading: 0.01 - 9999999 Gallons
Max. Media Temperature: 122°F
Materials of Construction: GV-5 FWA
Measuring Principal: Single jet
Meter Size: 5/8" x 3/4"
Tailpiece Set: 1" NPS female nut to 3/4" NPT male union

California residents Prop 65 Warning

warning symbol

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	GV-5 FWA
Inlet Connection	5/8" MPT 3/4" MPT
Max Flow Rate	22 GPM
Max Pressure Drop	15 PSI Max
Max Pressure (Psi)	150
Max Temp (°F)	122
Outlet Connection	5/8" MPT,3/4" MPT
Size	5/8" 3/4"
Connection Type	Male (MPT)
Flow Rate	11 GPM
Type	Series Single Jet
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.25
