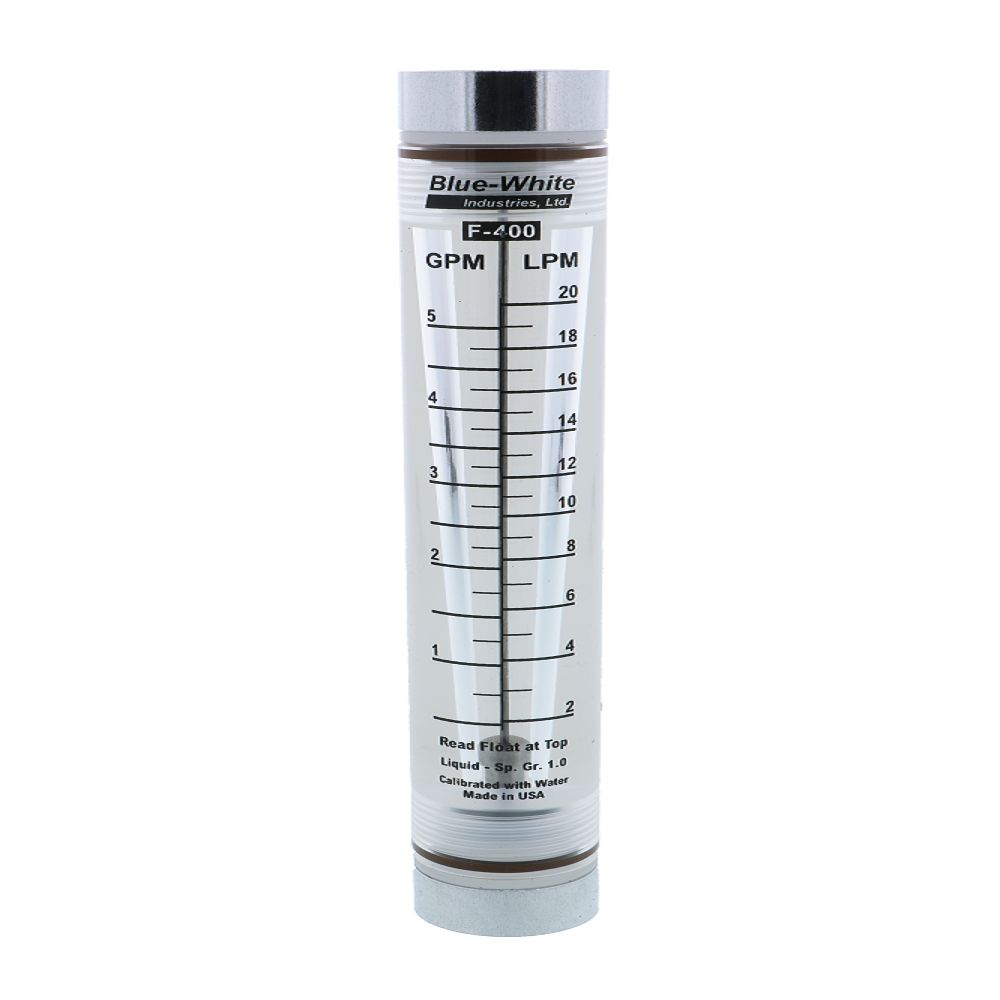

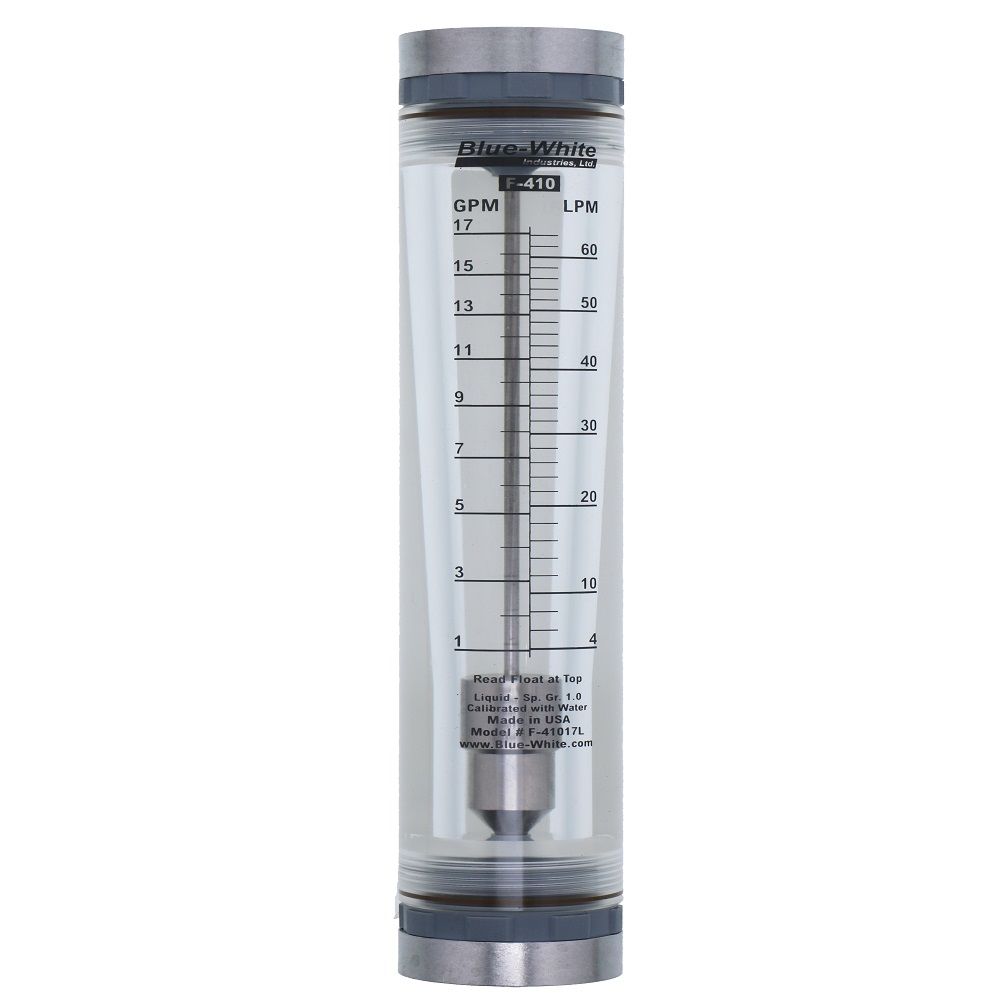

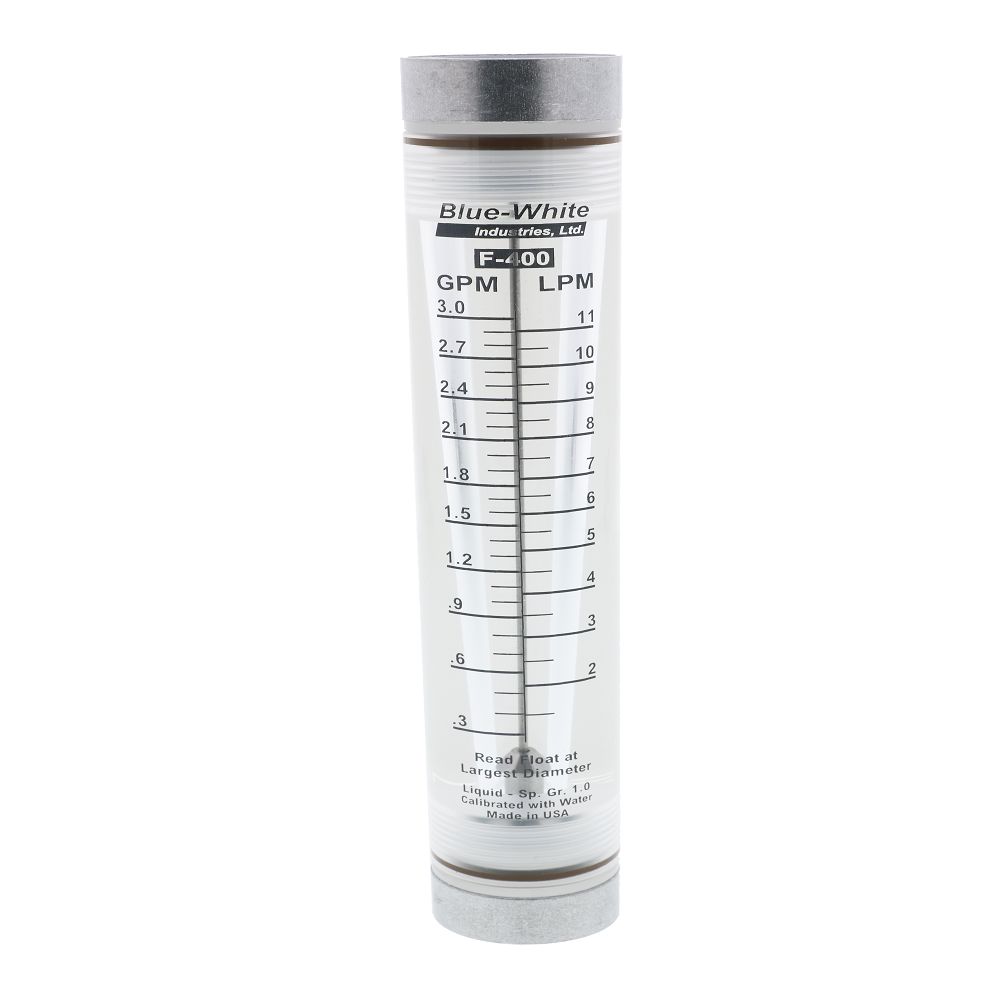

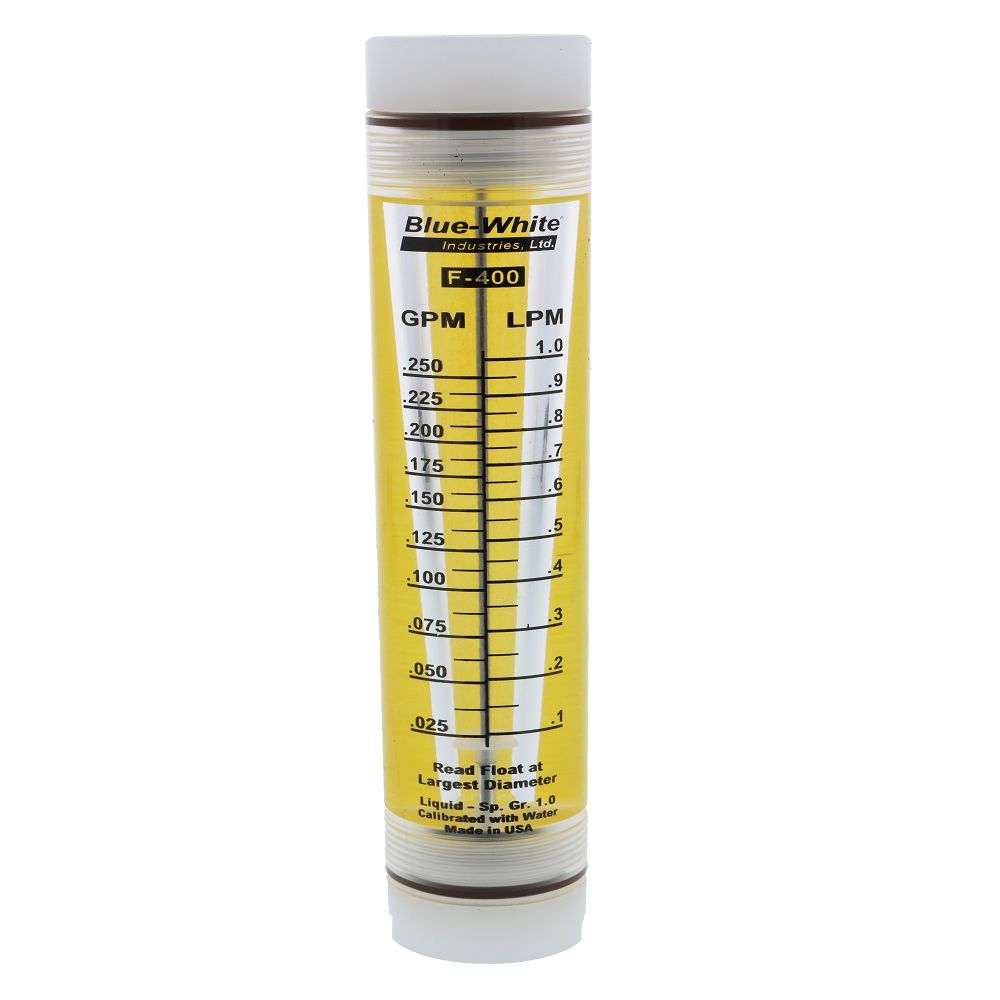

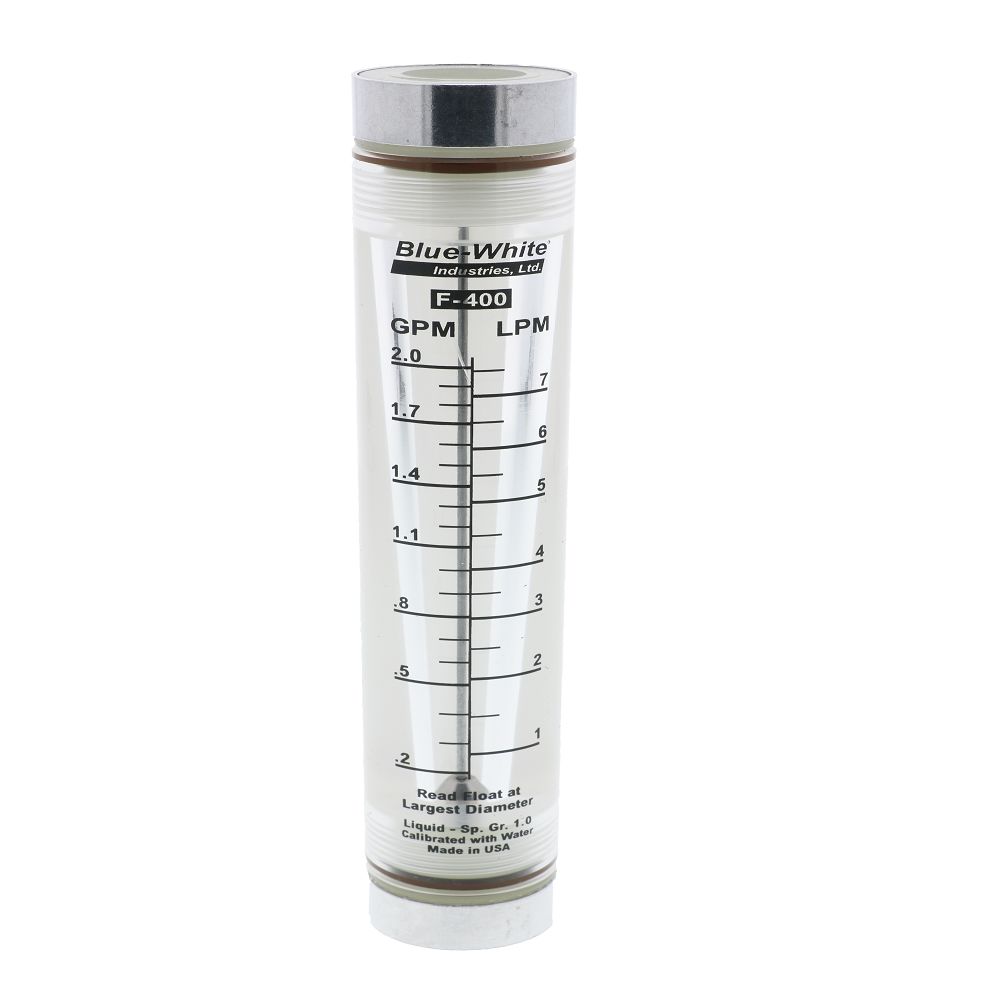

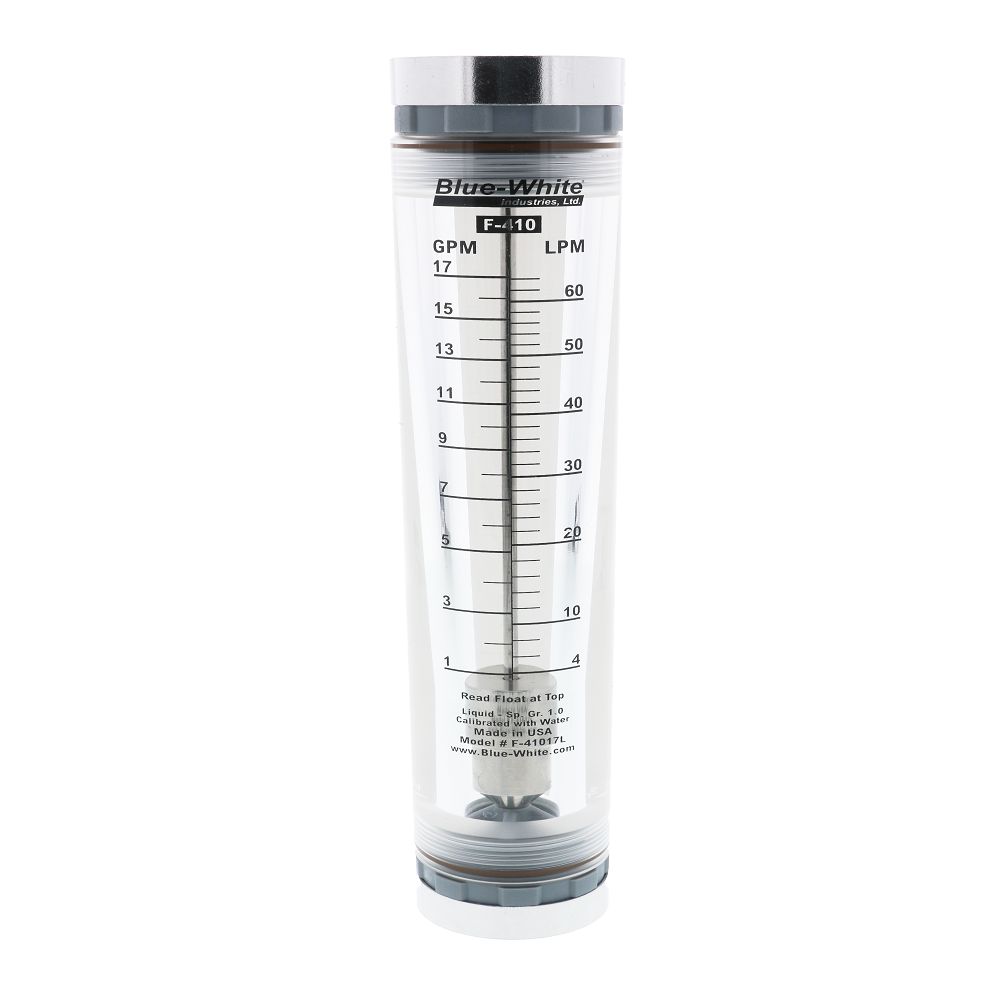

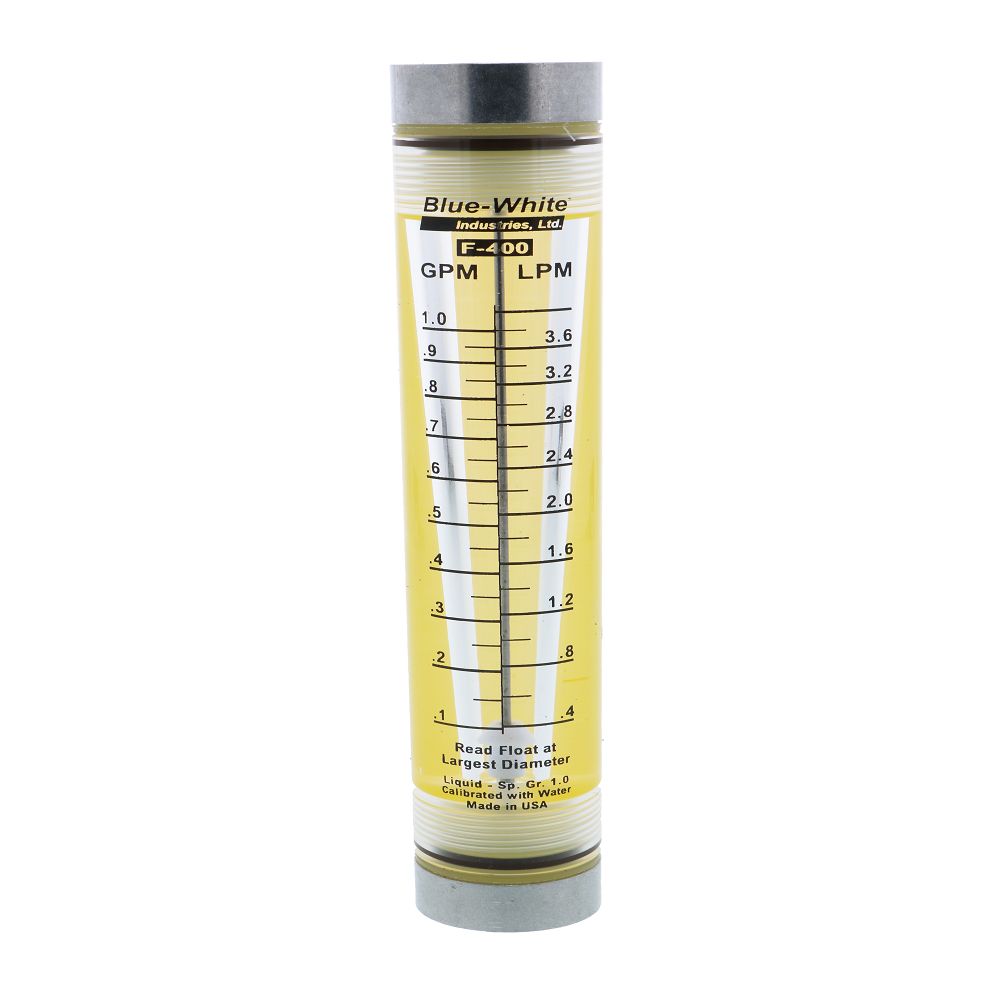

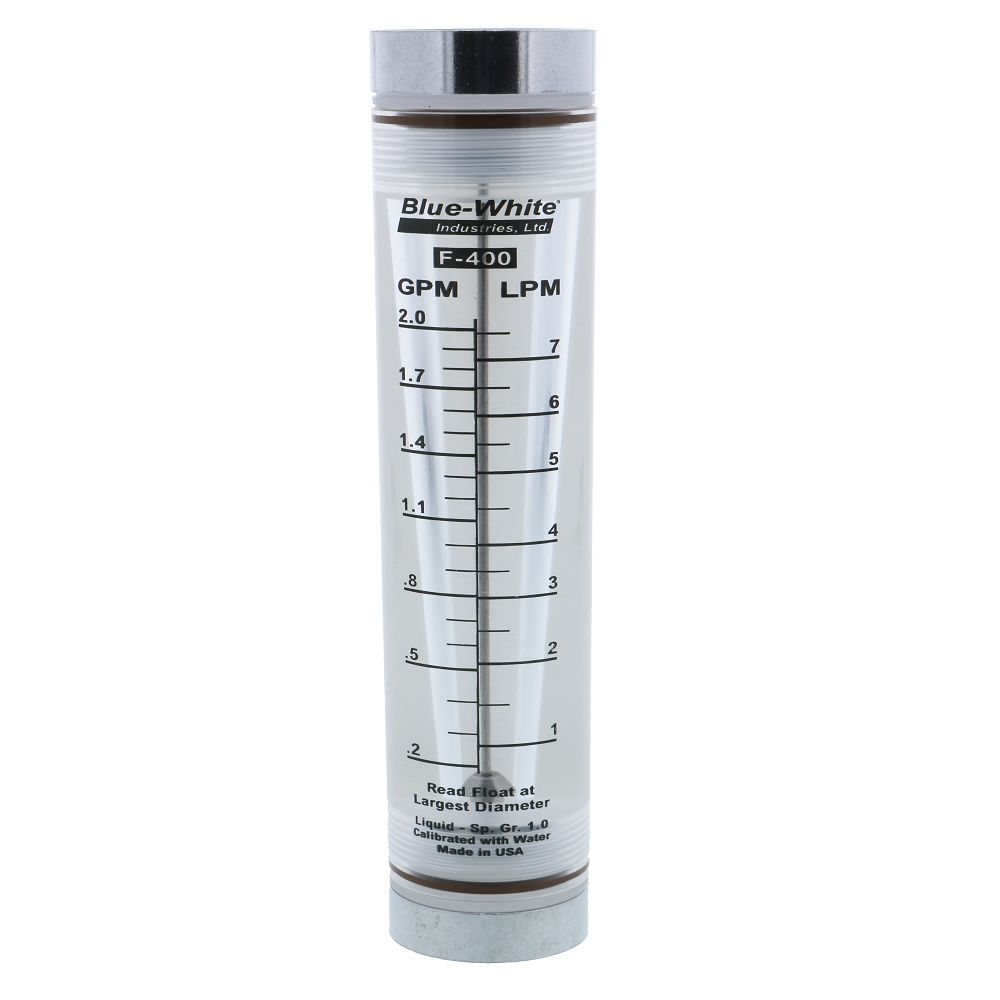

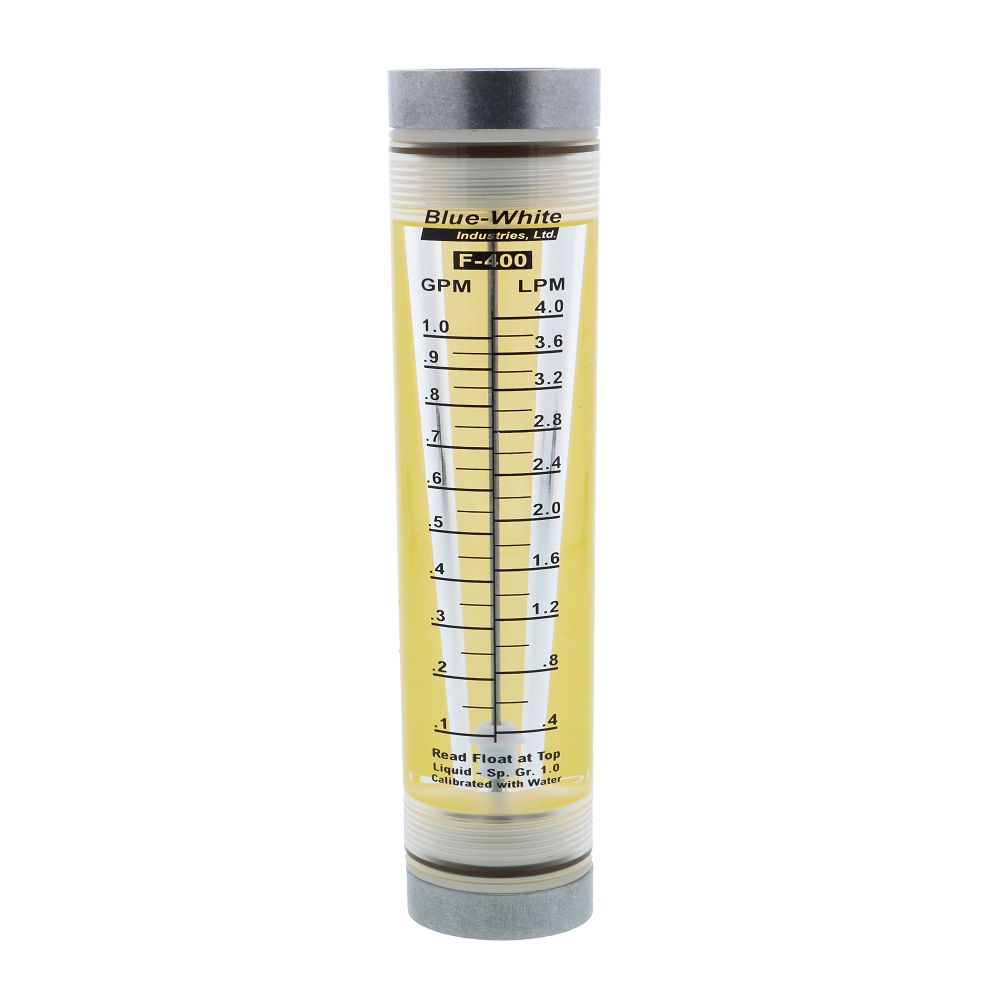

Blue White F-400N INLINE Rotameter

Features:

• Machined from high quality acrylic, polished to a clear finish
• Annealed for added strength and chemical resistance
• Acceptable for outdoor installations (direct sunlight okay)
• Designed for in-line installation
• Easy to read scale

Neo-Pure Compatibles For Blue White

Inline Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.1-1.0 GPM	1/2" FPT	F-40375LN-8	FMS1-011-08
0.2-2.0 GPM	1/2" FPT	F-40376LN-8	FMS1-022-08
0.5-5.0 GPM	1/2" FPT	F-40500LN-8	FMS1-055-08

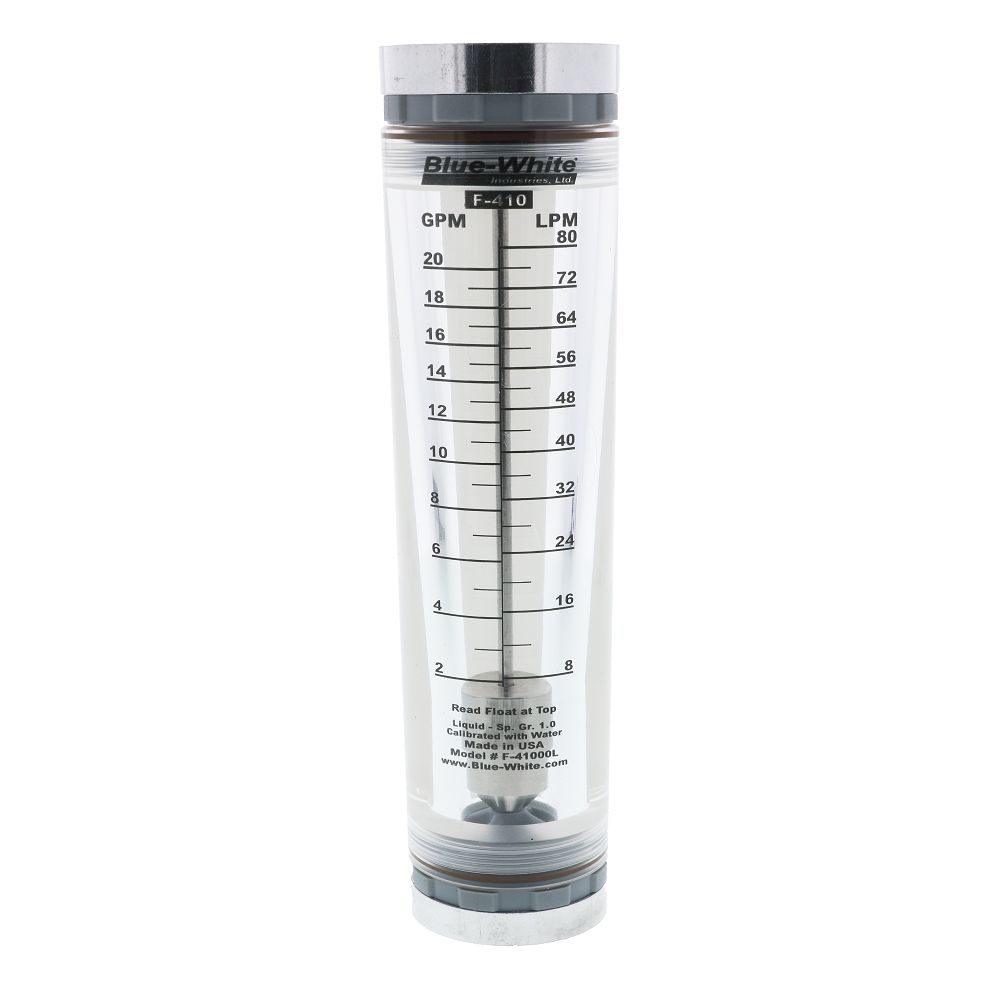

2.0-20 GPM	3/4" FPT	F-41000LN-12	FMS1-220-16
2.0-20 GPM	1" FPT	F-41000LN-16	FMS1-220-16
2.0-20 GPM	1" FPT	F-451002LHN	FMS1-220-16
3.0-30 GPM	1" FPT	F-451003LHN	FMS1-530-16



Panel Mounted Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.2-20 GPM	1" MPT	F-55200L*	FMP0-216-16*
0.2-2.0 GPM	3/8" MPT	F-55376L	FMP0-022-06
0.5-5.0 GPM	1/2" MPT	F-55500L	FMP0-055-08
0.1-10 GPM	3/4" MPT	F-55750L	FMP0-210-12



Adjustable Panel Mounted Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.2-20 GPM	1" MPT	F-55200LA**	FMP1-216-16**
0.1-1.0 GPM	3/8" MPT	F-55375LA***	FMP1-011-04***
0.2-2.0 GPM	3/8" MPT	F-55376LA	FMP1-022-06
0.5-5.0 GPM	1/2" MPT	F-55500LA	FMP1-055-08
0.1-10 GPM	3/4" MPT	F-55750LA	FMP1-210-12



Please note: While all Neo-Pure listed are direct replacements for Blue White, the following panel mounted flowmeters differ in mounting spread.

Blue White:
F-55200L* - 8 inch
F-55200LA** - 8 inch
F-55375LA*** - 6.5 inch

Neo-Pure:
FMP0-216-16* - 6.5 inch
FMP1-216-16** - 6.5 inch
FMP1-011-04*** - 5 inch

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	150
Max Temp (°F)	150
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.2
