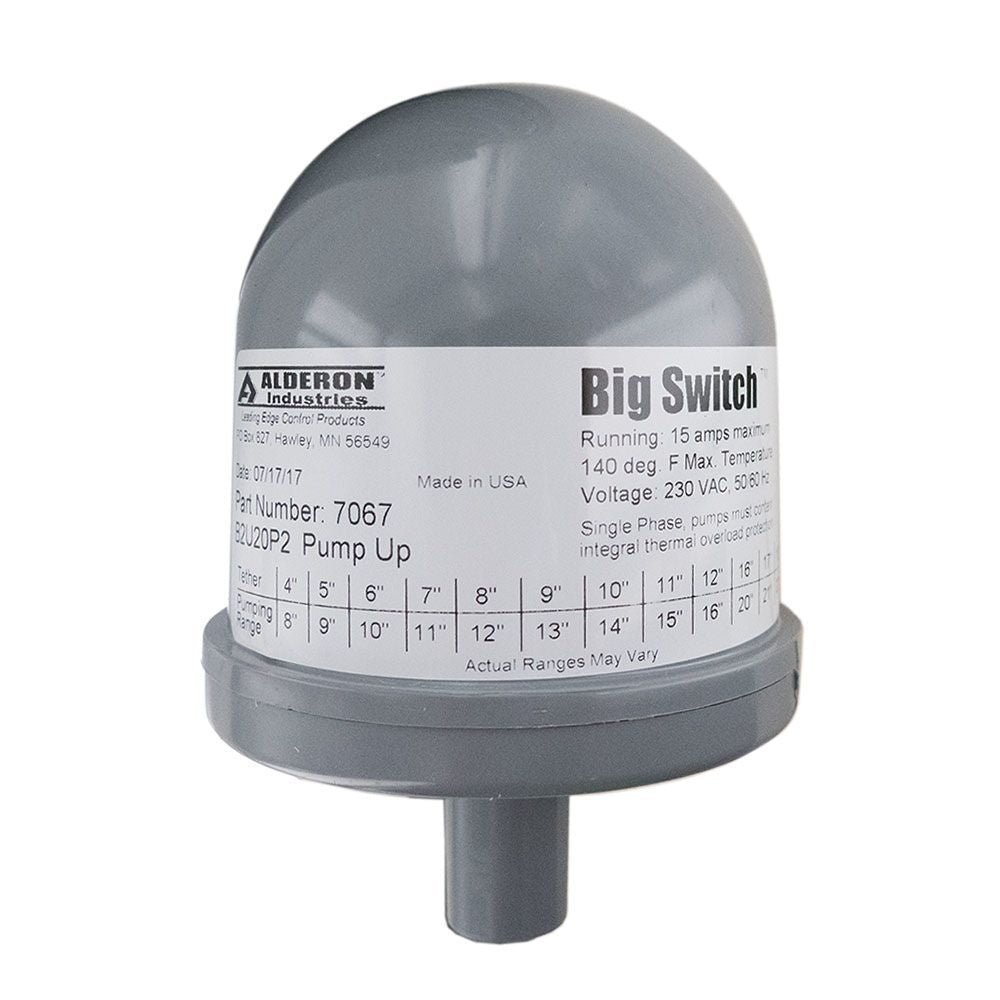

Alderon 200919 Pump Up Series Float Switches

Big Switch Float Switches are rated at 15 amps, which allows the switches to be used on both small and large horsepower pumps.Normally Closed (Pump Up) Switch turns on (closes) when the float is 45 degrees below horizontal, turning on the pump, and turns off (opens) when the float drops 45 degrees above horizontal, turning off the pump.

Features:

• Amperage: 15 amps @ 220V
• Operating Temperature - 0 to 140 °F
• Float Housing: 3.25" x 4.50´´
• Housing: High Impact PVC
• Switching Differential: 90 degrees Pump Range 8-22 inches
• Cable Length: 20 ft
• Certifications: UL Listed
• Warranty: 3 Years
• Patented Mechanical Design
• PVC Float Housing
• Heavy Duty Cable
• Omni-Directional

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	15 Amps
Housing Material	PVC
Max Temp (°F)	140
Min Temp (°F)	0
Voltage	220 V
Warranty & Certifications
Warranty	3 Year
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	4 in.
Product Weight & Dimensions
Approx Depth	3-1/4"
Product Length	4-1/2"
Product Weight (lbs)	3
