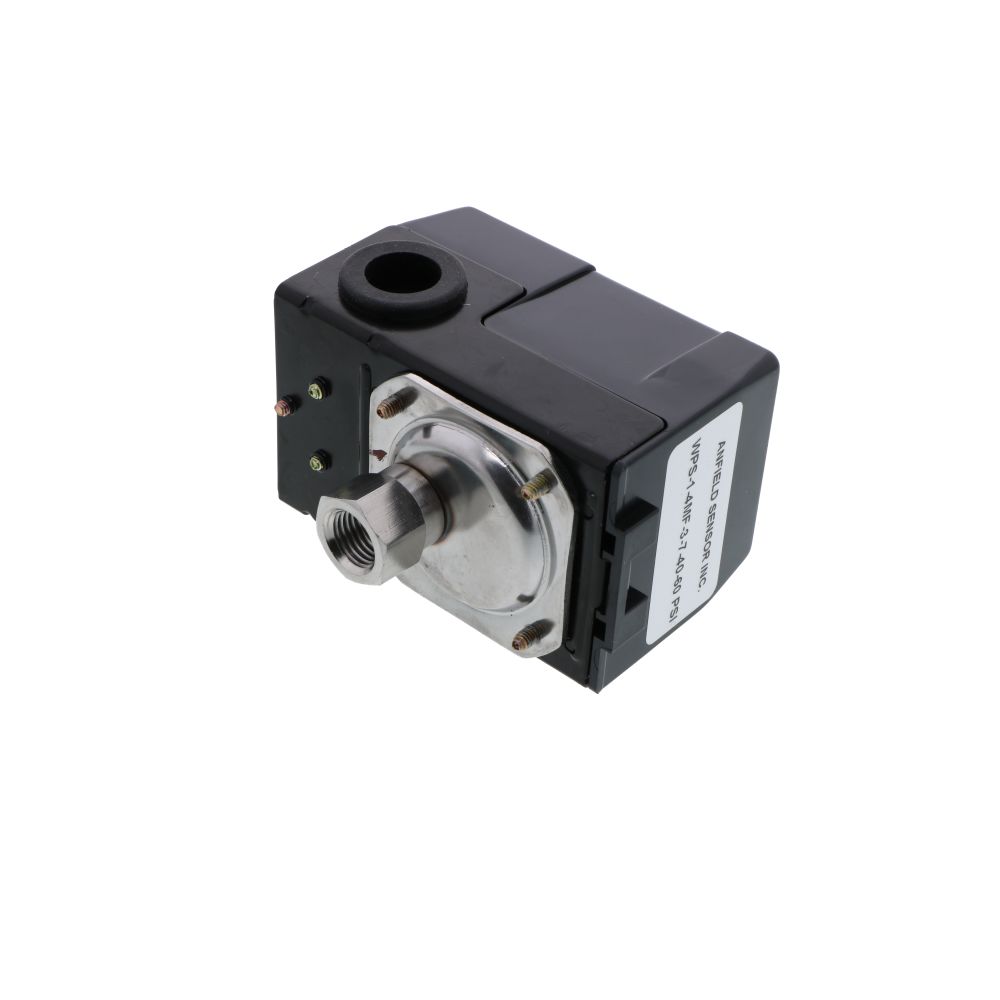

Axeon 200907 Normally Closed High Pressure Switch 40-60 PSI

The Axeon 200907 is a versatile pressure switch suitable for automatic water systems. This switch includes a low pressure cut-off feature, which prevents damaging of the pump should there be an unexpected drop in the outlet pressure.
Features:

• Easy installation
• Universally interchangeable
• Male connection
• Low pressure cut off
• Manual reset lever
• Applications:
• Potable Water Pumps
• Irrigation Pumps
• Well Pumps

Specifications:

• Factory Set Cut-In Pressure: 40 psi
• Factory Set Cut-Out Pressure: 60 psi
• Adjustment Range: 15 - 80 PSI (1.0-5.5 bar)
• Connections: 1/4" MPT (304 Stainless Steel)

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	10 Amps
Diaphragm Materials	Buna-N
Max Pressure (Psi)	60
Min Pressure (Psi)	40
Power	1.5 HP @ 115 VAC (1-phase) 2 HP @ 115 VAC (3-phase) 3 HP @ 230 VAC (3-phase) 1 HP @ 460/575 VAC (3-phase)
Connection Type	Screw Clamp
Voltage	115V 230V
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Approx Depth	2.78"
Product Height	2.80"
Product Width	3.76"
Product Weight (lbs)	1.05
