Davey BT14-30 Booster System with Torrium2 - +30 psi 14 gpm

The Davey BT14-30 Single Impeller Booster Pump System is an economical, compact booster system driven by quiet, efficient stainless steel pumps. All B-Series Pumps do flows of 20gpm and as high sd 45 gpm, and can be installed in parallel for higher flows. These pumps operate extremely quiet, featuring low noise between 54 and 56 dBa. The BT14-30 is ideal size for a small residences, mobile homes, cottages and yachts.

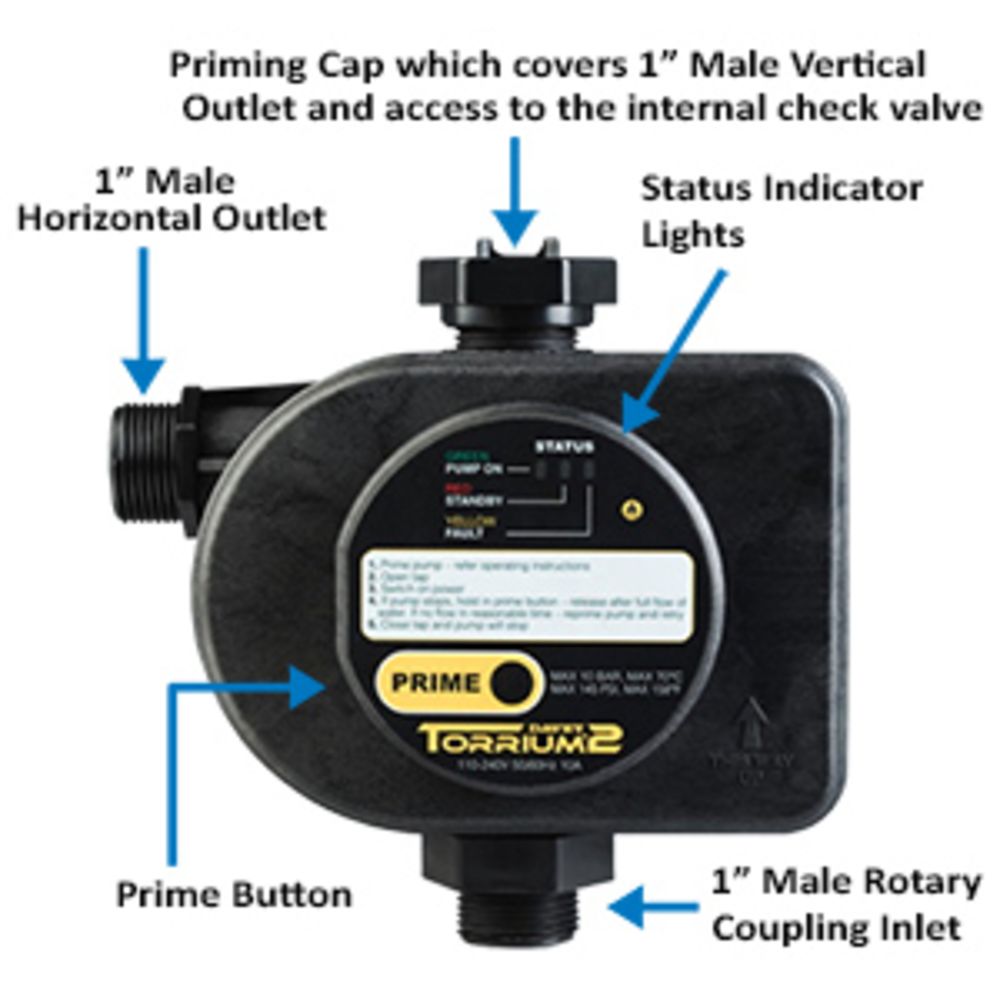

Torrium 2: Smart controller with adaptive cut-in knows to come on for even constant pressure Needs no adjustment - comes on with half gallon flow or a 20% pressure loss Swivels 360 degrees with top and side discharge Built-in spring loaded check valve and accumulator - no tank required

Features:

• Dry run protection & automatic restart below 60°C Water leakage detection which minimises pump cycling High current shutdown & low voltage indication High water temp protection Built-in check valve No tank necessary
• Applications: Residential water supply Light commercial Irrigation Water Transfer Washing systems Pressure boosting
• Economical Choice. The Davey BT14-30 Booster Pump System features a cut-out at low flow and cut-in at 80% of the cut-out pressure providing a constant, even pressure flow of water. The system also has automatic recognition of small pressure loss (RO, ice makers, etc.) to reduce needless cycling. Providing you with smooth, even pressure for showers, sprinklers and all your household water needs.
• Dependable & Safe. This pump has a built in sacrificial varistor for electrical power surges, high current shutdown, low voltage indication, and dry run protection with sequential automatic re-start. The system also features a water leakage detection system, which will minimize you pump´s cycling. Additionally, high water temperature protection and automatic restart below 60℃ is built-in.
• Variety of Applications. Homes with low incoming municipal water supply pressure, automatic water transfer, domestic, light industrial, and garden irrigation, and applications where pressure "cycling" must be avoided or where the pump may have interrupted water supply.
• Quality Construction. This product is made from 304 stainless steel and corrosion-resistant materials, and has selectable vertical and horizontal delivery outlets. It also features an LED operation and fault indicator, which displays system operating status.

NOTE: 100% Compatible with: Amtrol RP10, DuraMac 17035R, and Grundfos MQ3-35 Systems. Formerly known as HS12-40HT1.

Are you experiencing low water pressure issues?
The Davey BT14-30 Booster Pump can solve your problems. The system will give you a stronger and even water pressure by boosting your exisisting pressurized water supply. You will no longer struggle with water pressure fluctuations when someone flushes a toilet or have low pressure in a bathroom faucet.
Opposite to flow switch controllers that require a minimum flow before they will operate, Davey BT pumps will begin as soon as the faucet is opened and keeps running until the water is no longer needed. But that´s not all! The Torrium 2 Pressure System Controller automatically adapts to changing conditions because it has a built-in ´brain´ that can out smart every-day problems. This also means far less installation and maintenance issues. The Torrium2 ensures that a steady, reliable flow of water is available day after day, year after year.

BT Home Pressure System	Max System Pressure	Max Boost	Nominal Flow	Voltage	Usage	Single / Multi Stage
BT14-30	100 PSI	40 PSI	14 GPM	120V/1	Small homes or Weekenders	Single Impeller
BT14-45	100 PSI	60 PSI	14 GPM	120V/1	Small two stories or long runs	Mulitistage Centrifugal Pump - has suction lift of 25´
BT20-30	100 PSI	50 PSI	20 GPM	120V/1	Large homes	Mulitistage Centrifugal Pump - has suction lift of 25´
BT20-40	100 PSI	80 PSI	20 GPM	220-240V/1	Average to large homes with two stories or large runs	Mulitistage Centrifugal Pump - has suction lift of 25´
BT30-30	100 PSI	50 PSI	30 GPM	220-240V/1	Large homes	Single Impeller

Compatible with:

Grundfos Scala1 3-45-1 115V 60 HZ 99631742

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	Max 120 °F
Housing Material	Polyester
Inlet Connection	1-1/4" FPT 1" MPT
Liquid Temperature	Max 150 °F
Outlet Connection	1-1/4" FPT,1" MPT
Power	1 hp 1 kW
Pump Max Flow Rate (Gpm)	14
Pump Max Pressure (Psi)	100
Series	BT
Size	1-1/4" 1"
Suction Lift	Max 25 Feet
Voltage Type	AC
Connection Type	Female (FPT) Male (MPT)
Voltage	120VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but no more than 36 months from date of manufacture.
Shipping Dimensions
Shipping Length	21.5 in.
Shipping Width	12 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Height	10 in.
Product Length	21.5 in.
Product Width	12 in.
Product Weight (lbs)	30
