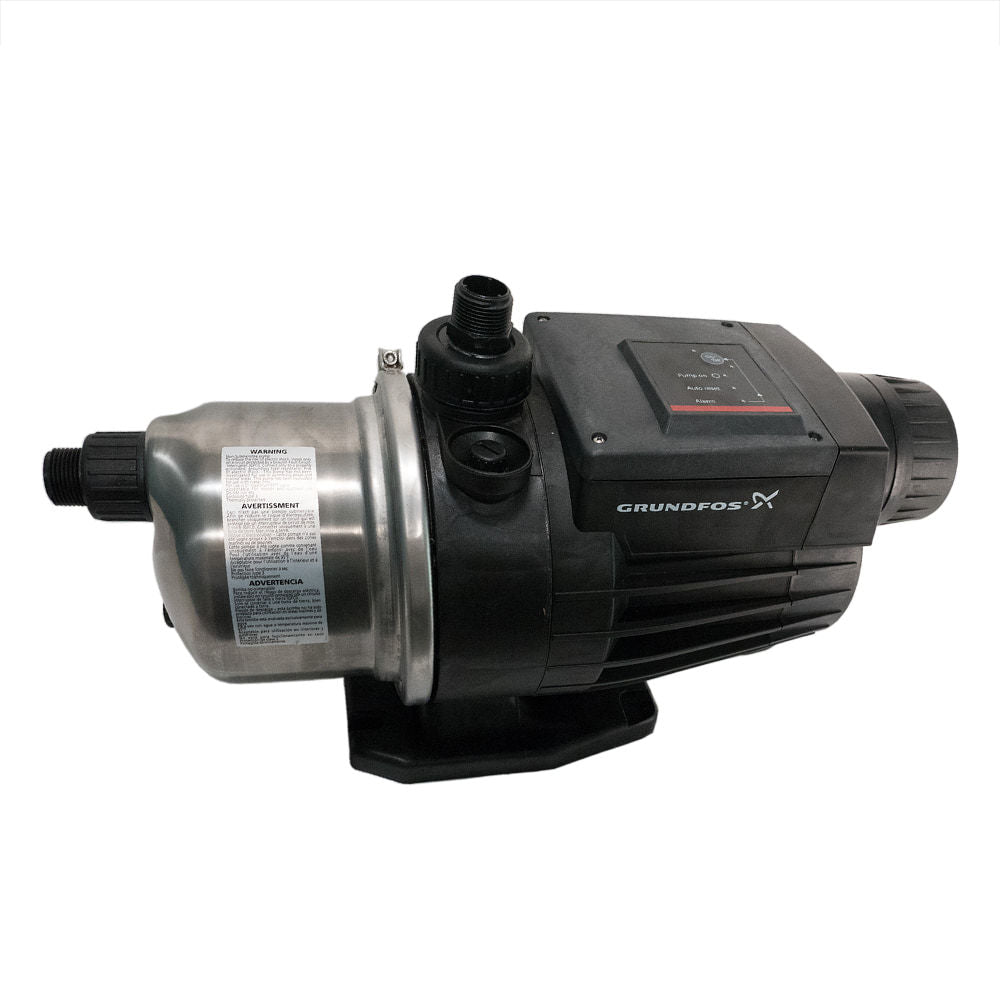

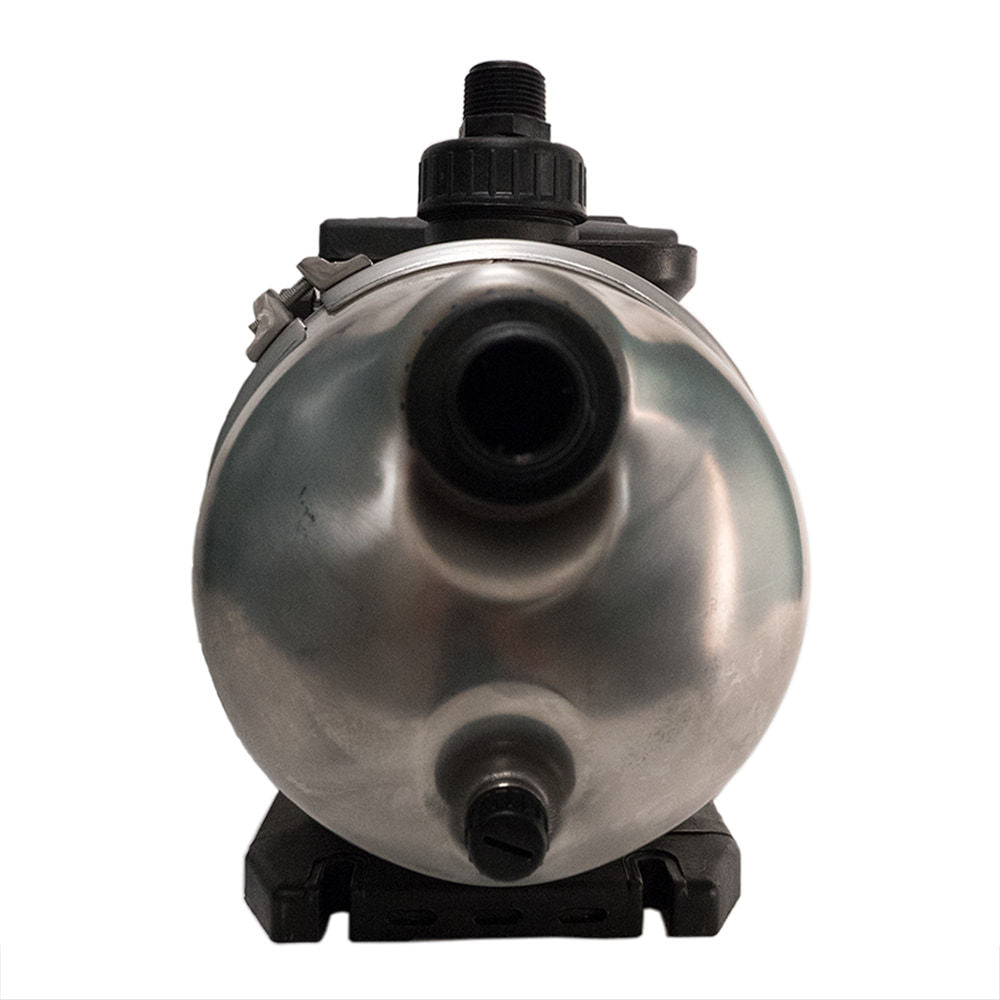

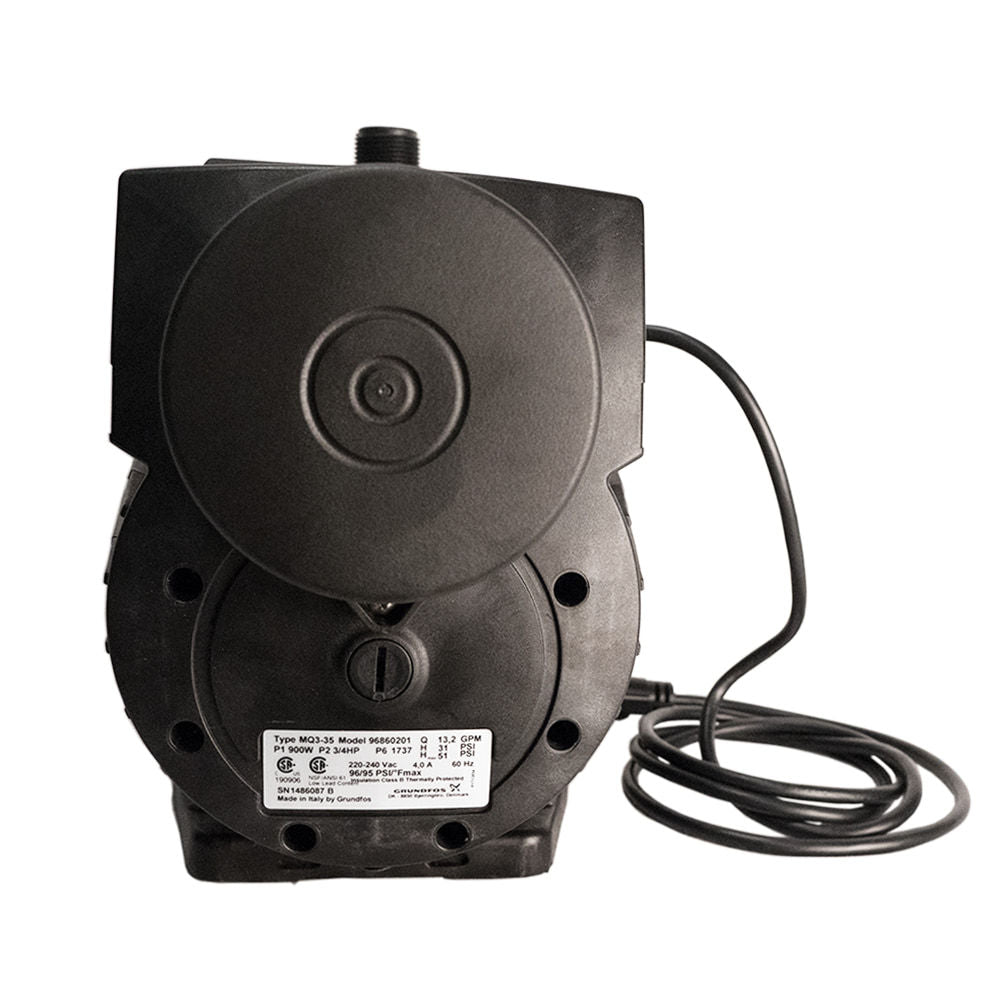

Grundfos MQ3-35 (115V) 3/4 HP Pressure Booster Pump - 96860172

The Grundfos MQ is built for trouble-free operation. It´s constructed from non-corrosive materials, safe to use for clean water. The anti-cycling feature prevents the water pressure booster from repeatedly starting and stopping if you have a leaky faucet or plumbing.

Features:

• Easy installation and little space required
• All-in-one design featuring a water pump, motor, tank, flow controller, and check valve
• Stop and start prevention to protect motor during dry running or increased temperature
• User-friendly control panel

Additional Features:

• Class A capacitor to increase the length of operation
• More robust printed circuit to increase capacity to function during power fluctuations
• Potting material added to protect printed circuit board components
• High torque motor
• Advanced diffuser design for improved hydraulic performance

NOTE: Placing your booster pump in freezing temperatures WILL void the Grundfos warranty.

Compatible with: Davey BT14-45, Amtrol RP15, DuraMac 17052R


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	32-113 °F
Inlet Connection	1" MPT
Inlet Pressure	44 PSI
Liquid Temperature	32-95 °F
Outlet Connection	1" MPT
Power	3/4 hp 585 Watts
Pump Max Flow Rate (Gpm)	22
Pump Max Pressure (Psi)	108
Series	MQ3
Size	1"
Suction Lift	26 ft Max
Voltage Type	AC
Connection Type	Male (MPT)
Voltage	115VAC
Warranty & Certifications
Warranty	Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation.
Shipping Dimensions
Shipping Length	24 in.
Shipping Width	10 in.
Shipping Height	14 in.
Product Weight & Dimensions
Product Height	14
Product Length	24
Product Width	10
Product Weight (lbs)	34
