Grundfos MQ3-45 (115V) 1 HP Pressure Booster Pump - 96860195

The Grundfos MQ3-45 1 HP Pressure Boost Pump (115V) is compact and extremely easy to install with an updated diffuser design for an increase in hydraulic performance. The pressure switch and tank are already built into the MQ. The settings are clearly indicated on the user-friendly control panel with indicator lights for Pump on/off, auto reset, and an alarm indicating dry running or over-heating.
Grundfos MQ is built for trouble free operation. It´s construction from corrosion resistant materials means it can be used for clean water. It´s high-torque motor and Class A capacitor ensures that it will start consistently and runs dependably. The anti-cycling feature prevents the pump from repeatedly starting and stopping in the event of a dripping tap or a minor leak, while also featuring a more durable printed circuit for consistent performance during power fluctuations. If there is no water available, the pump will stop to protect itself and restart automatically when water is available again.

Features :

• Compact & Easy Installation : Due to its compact design, the pump does not take up much space and is easy to install. No space around the pump is required.

• Convenient All-In-One Design : The Grundfos MQ is a compact all-in-one pressure boosting unit, designed for domestic water supply and other boosting or lift applications.

• Built-in Protective Functions : If exposed to dry running, excessive temperature, or any overload condition the pump will stop automatically, thus preventing a motor burnout.

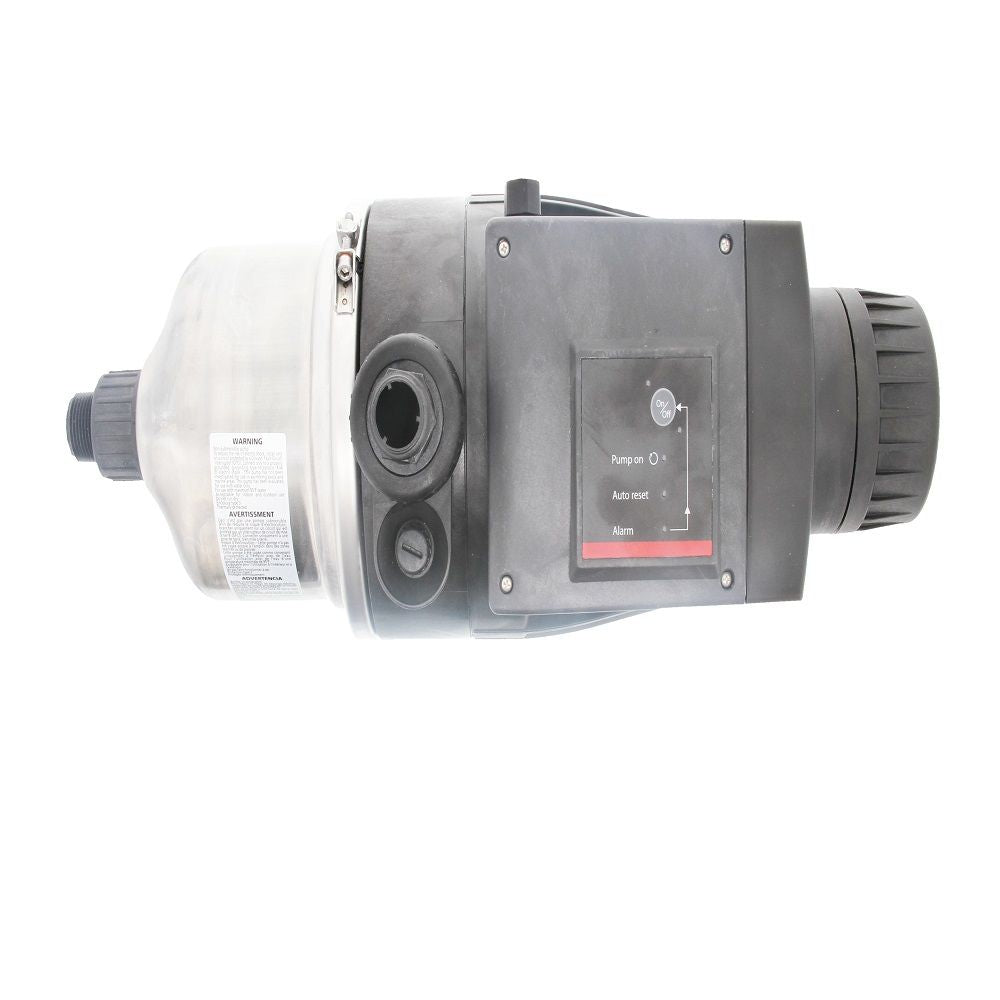

• User-Friendly & Simple Operation : The pump features a user-friendly control panel with ON/OFF button, indicator lights for indication of the operational state of the pump and low noise levels during operation.

Compatible with:

Davey BT14-45

Amtrol RP15

DuraMac 17052R

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

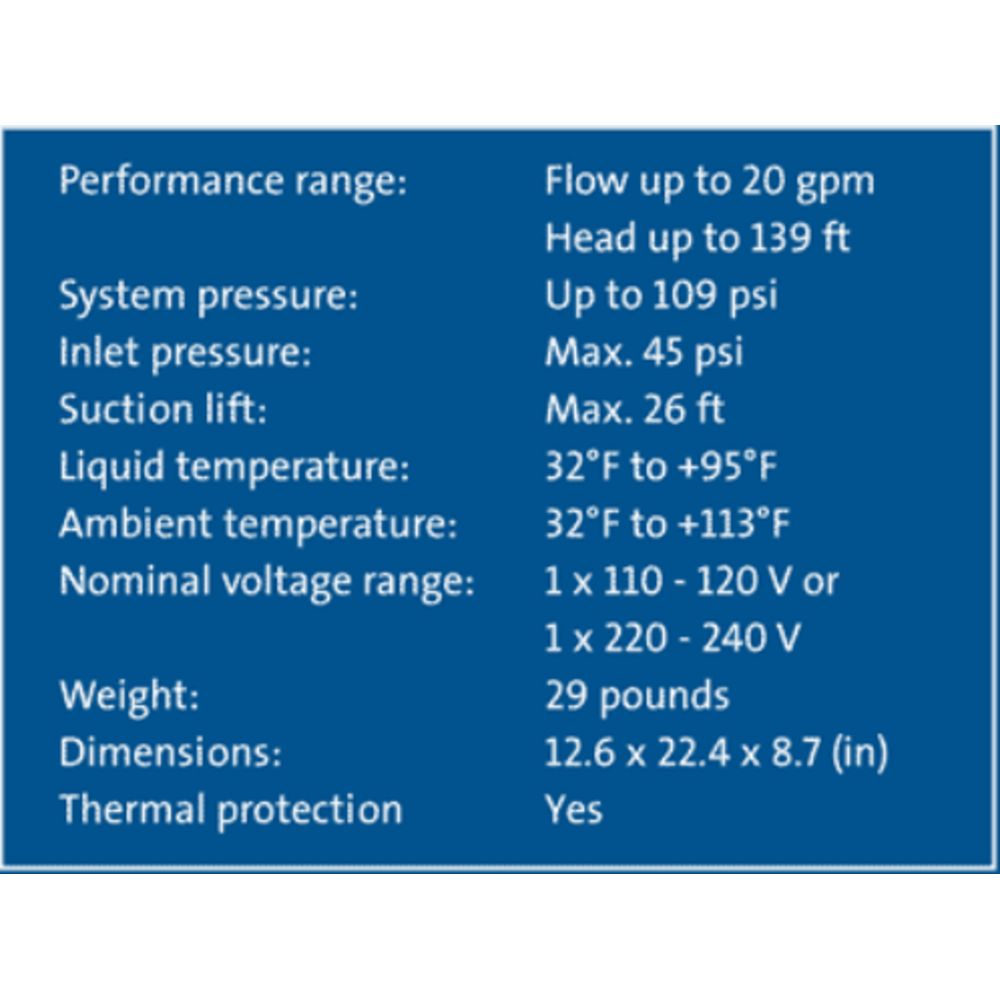

Product Details
Ambient Temperature Range	32-113 °F
Inlet Connection	1" MPT
Inlet Pressure	44 PSI
Liquid Temperature	32-95 °F
Outlet Connection	1" MPT
Power	1 hp 725 Watts
Pump Max Flow Rate (Gpm)	22
Pump Max Pressure (Psi)	108
Series	MQ3
Size	1"
Suction Lift	26 ft Max
Voltage Type	AC
Connection Type	Male (MPT)
Voltage	115VAC
Warranty & Certifications
Warranty	Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation.
Shipping Dimensions
Shipping Length	24 in.
Shipping Width	10 in.
Shipping Height	14 in.
Product Weight & Dimensions
Product Height	14
Product Length	24
Product Width	10
Product Weight (lbs)	34
