ScaleNet Salt-Free Water Conditioner High Output

Calcium creates scale in pipes, on appliances and other plumbing surfaces. This leads to higher heating and energy costs and expensive repairs to appliances, such as ice machines, coffee makers, dishwashers and cooling towers in commercial buildings.

The ScaleNet Salt-Free Water Conditioning System´s Template Assisted Crystalization (TAC) media, also known as Matrix Enabled Particularization or MEP process, transforms calcium ions into calcium crystals, which are stable and cannot attach to pipes, surfaces, hardware or heat exchanger components. The crystals are so small they are easily rinsed away by the water flow. This new media technology is also sold and marketed under a variety of other brand names like Next, Filtersorb as well as ScaleNet.
ScaleNet Salt-Free Water Conditioner Benefits:

• Scale is virtually eliminated
• Aids in removing existing scale
• No costly repairs to appliances due to scale
• No salt
• No brine tank
• No backwash
• Saves water
• No electricity
• Easy installation

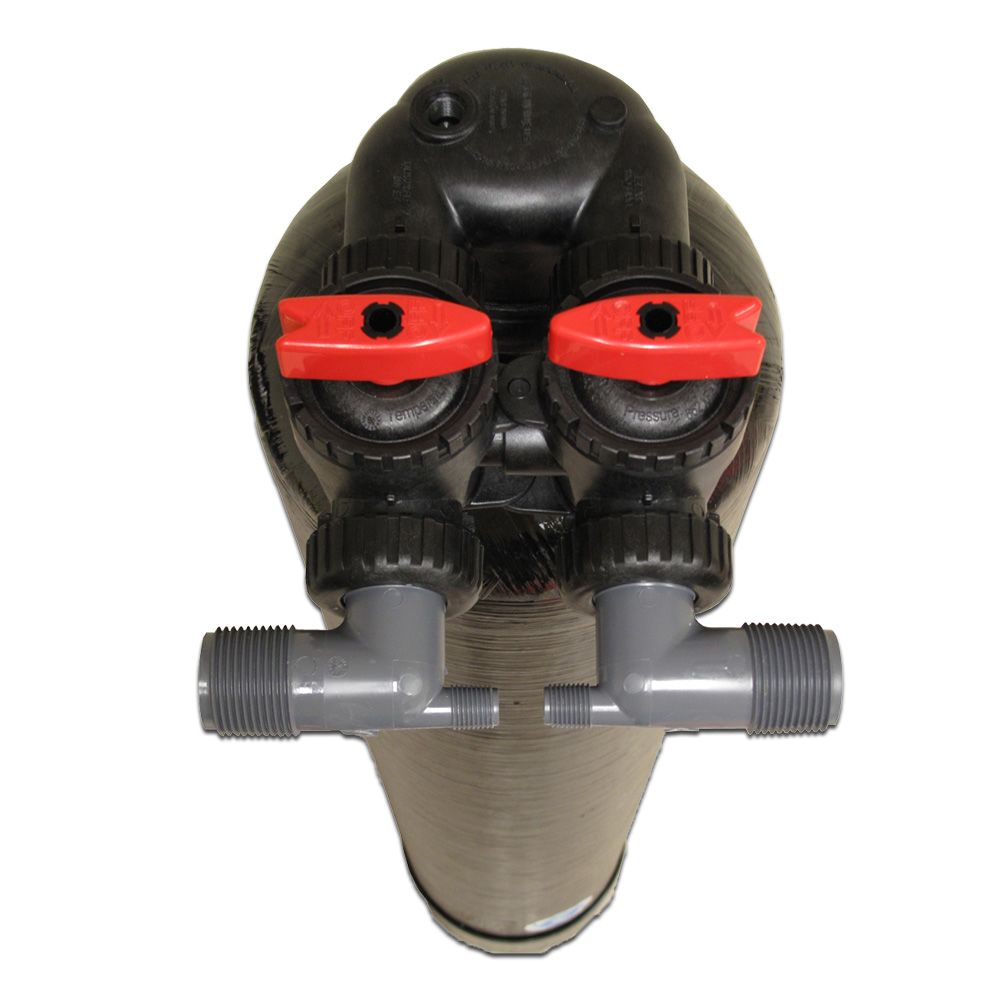

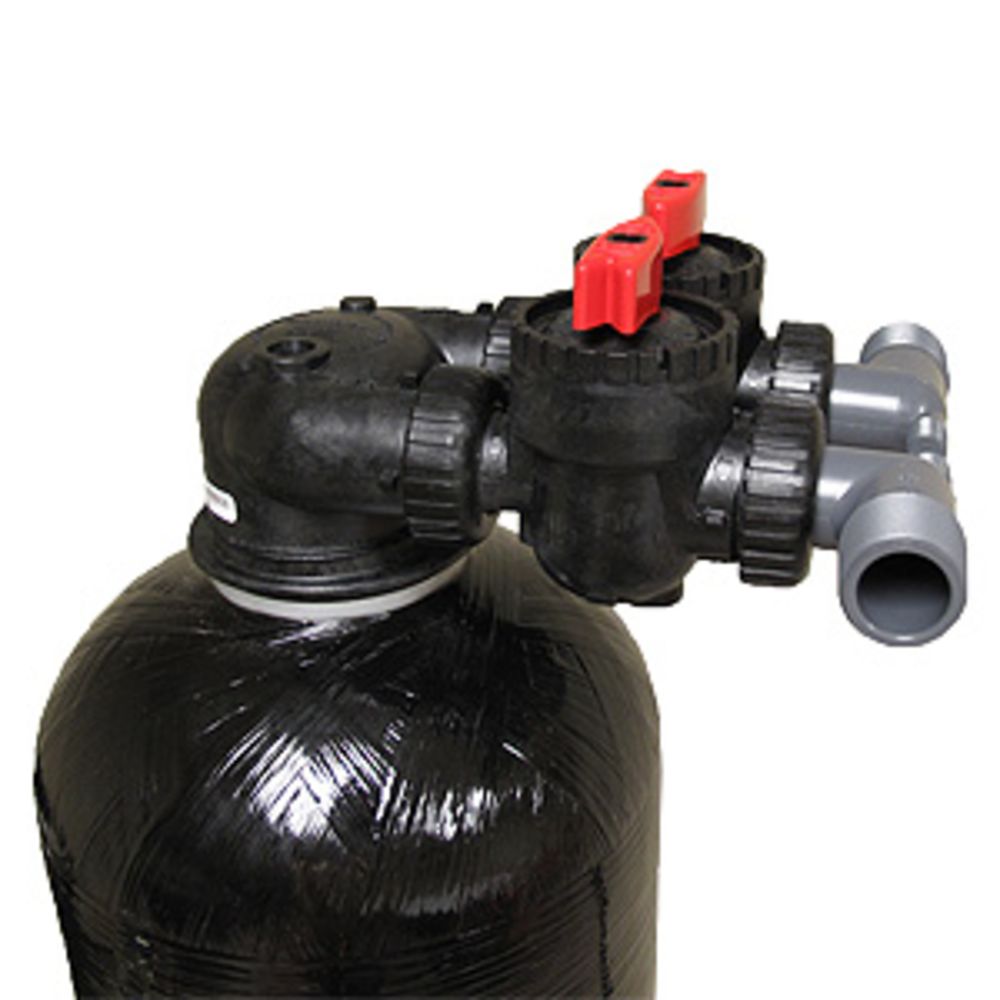

The ScaleNet High Output Systems include the V3007-01 PVC 1" NPT Male Elbow Assembly and the V3006 Bypass for the 1" Valve.

Go to Clack Parts and Accessories
to purchase other Clack Valve attachments for PVC, Lead-Free Brass Sweat, 1" Male NPT, or Brass Sharkbite Quick Connect Fittings.

SCALE
is the incrustation of calcium carbonate (CaCO3) that forms within piping.

How Does TAC (Template Assisted Crystallization) Media Prevent Scale Buildup?

• STEP 1 - The TAC MEDIA releases a TEMPLATE
• STEP 2 - The TEMPLATE attracts and captures the scale contaminants (Ca, Mg & MCO3) by turning them into crystals that stick to the TEMPLATE´S surface
• STEP 3 - The TEMPLATE carries the scale harmlessly through the piping

Disclaimer: If you are using well water, please contact our technical support staff to help you determine if this system is right for your application.

Part Number	Tank Size	Pipe Size	Media	Service Flow	Floor Space
M8407-HO	8 x 35	1"	3.0 L	10 gpm	11 x 11 x 42
M8409-HO	9 x 48	1"	4.0 L	16 gpm	12 x 12 x 42
M8410-HO	10 x 54	1"	5.0 L	20 gpm	13 x 13 x 61
M8412-HO	12 x 52	1"	7.5 L	30 gpm	15 x 15 x 59
M8414-HO	14 x 65	2"	12.5 L	50 gpm	15 x 15 x 72
M8416-HO	16 x 65	2"	19.0 L	75 gpm	17 x 17 x 72

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Chlorine Tolerance	<3 ppm
Inlet Connection	1" MPT 2" MPT
Max Temp (°F)	140
Min Temp (°F)	40
Outlet Connection	1" MPT,2" MPT
Ph Range	6 to 9 (effective range)
Size	1" 2"
Change Frequency	3-5 Years
Connection Type	Male (MPT)
Contaminants Reduced	Heavy Metals Scale
Flow Rate	0-30 GPM
Media Type	TAC
Type	Salt-Free Water Conditioner
Warranty & Certifications
Warranty	Tank: 10 years; Valve: 1 year
Shipping Dimensions
Shipping Length	53 in.
Shipping Width	16 in.
Shipping Height	16 in.
Product Weight & Dimensions
Product Weight (lbs)	15.25
