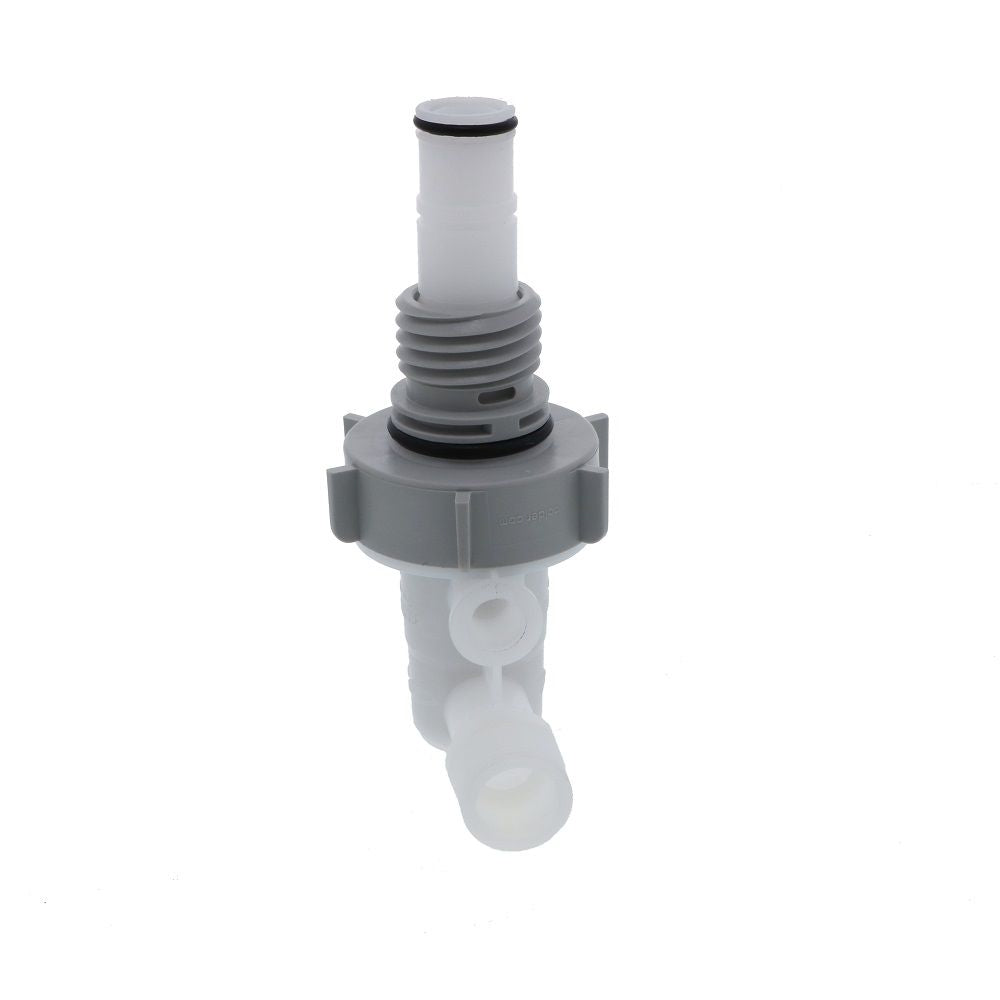

DrumQuik DQPRO120208207 PRO Elbow Coupler Viton O-Rings Hastelloy C Spring - 1/2 MNPT

DrumQuik PRO Couplers are designed with quick connect/disconnect capabilities in order to allow for faster drum change outs. These couplers come with an automatic shutoff valve and are constructed out of polypropylene. Using DrumQuik dispensing systems helps users keep a clean and safe work environment.

 Specifications:

• Material: Polypropylene
• Mounting Option: Thread
• Seal Option: Viton
• Valve Spring: Hastelloy C
• Pressure Range: 0 to 45 psig (0 to 3.1 bar)
• Temperature Range: 32ºF to 120ºF
• Sold individually
• Also available in bags of 5

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Polypropylene
Inlet Connection	1/2" MPT
Max Pressure (Psi)	45
Max Temp (°F)	120
Min Pressure (Psi)	0
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
Outlet Connection	1/2" MPT
Seal Material	Viton
Series	DrumQuik
Size	1/2"
Spring	Hastelloy C
Valve Type	Valved
Connection Type	Male (MPT)
Shipping Dimensions
Shipping Length	0.375 in.
Shipping Width	0.5 in.
Shipping Height	0.5 in.
Product Weight & Dimensions
Product Height	0.5
Product Length	0.375
Product Width	0.5
Product Weight (lbs)	0.027
