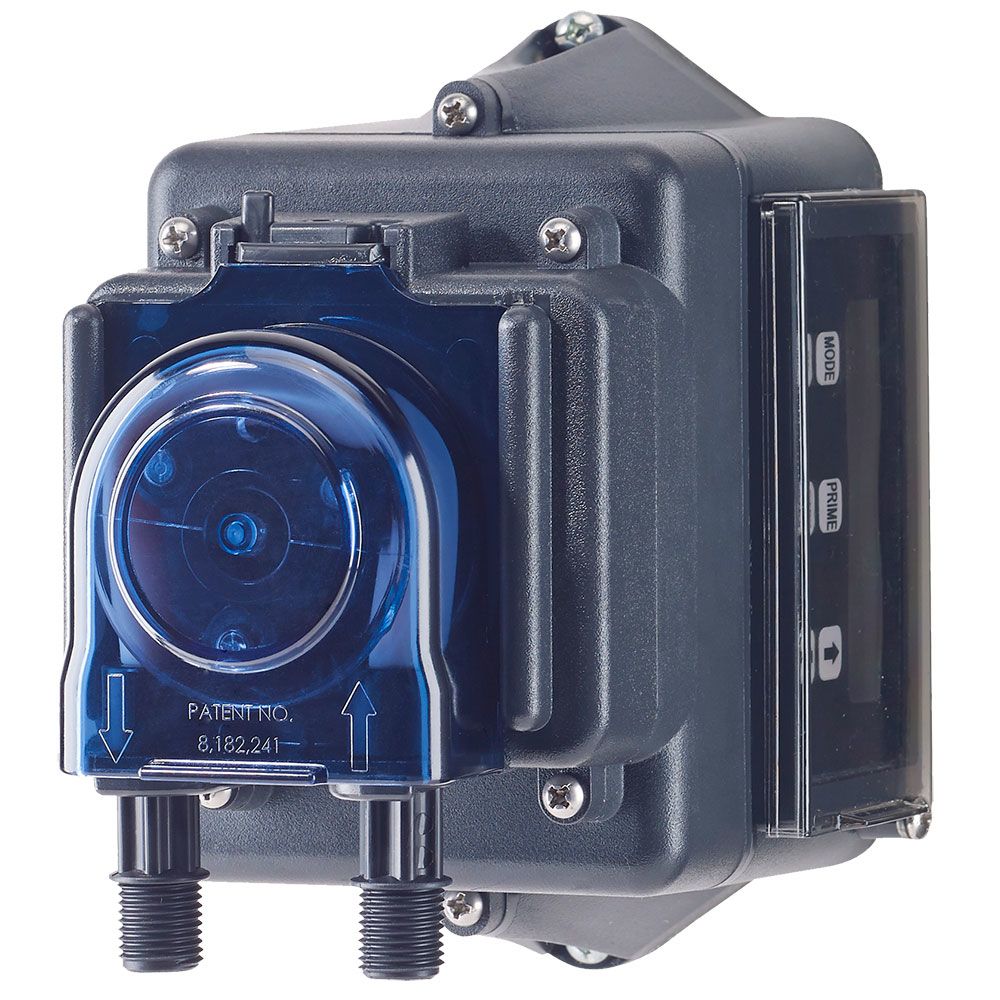

Stenner Econ FP Series Output Pump 4.5 GPD #F Tube with #11 Meter System Panel

The Stenner E20PHF81S11 Econ FP is an output pump which is specifically designed to interface with a dry contact water meter, dry contact flow switch, or a 12-24 VAC/VDC signal from any control equipment. This output pump comes with a #11 Meter System which features 1 pulse per gallon.

Features:

• The Stenner FP Series pumps are for light duty applications.
• The Stenner E20PHF81S11 Econ FP Pump is designed for light duty applications both indoor and outdoor. This pump is excellent for drinking water disinfection or pH adjustment for private water wells in homes or farms.
• The Stenner FP Series pumps feature an 6 button control pad.
• The Stenner E20PHF81S Econ FP Pump features a 6 button control pad allowing the operator to make changes at any time.
• The Stenner FP Series pumps have three operating modes.
• The Stenner E20PHF81S Econ FP pump has three operating modes. The three operating modes are Seconds, Flow Switch or Auxiliary power.
• The Stenner FP Series Meter System ships pre-assembled. For quick and easy installation the Stenner E20PHF81S11 is shipped put together for your convenience.

Specifications:

• CE Listed
• Tube Size: F
• Water Meter Size: 1"
• Cord Length: 10 feet
• Self-priming to 25 feet
• NSF Certified 61 & 372
• Pump Capacity: 16 GPD
• Max Working Pressure: 80 psi
• Output Reproducibility: ± 2%

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	Max 104 °F
Amps	0.17 Amps
Housing Material	Polycarbonate
Motor Rpm	60 RPM
Pump Max Flow Rate (Gpm)	4.5
Pump Max Pressure (Psi)	80
Series	Econ FP
Size	Tube #F
Suction Lift	Self prime up to 25 ft.
Voltage Type	AC
Sub-Type	Chemical Injecting System
Type	Single Head Pump
Voltage	120VAC
Shipping Dimensions
Shipping Length	23 in.
Shipping Width	23 in.
Shipping Height	12 in.
Product Weight & Dimensions
Product Weight (lbs)	17
