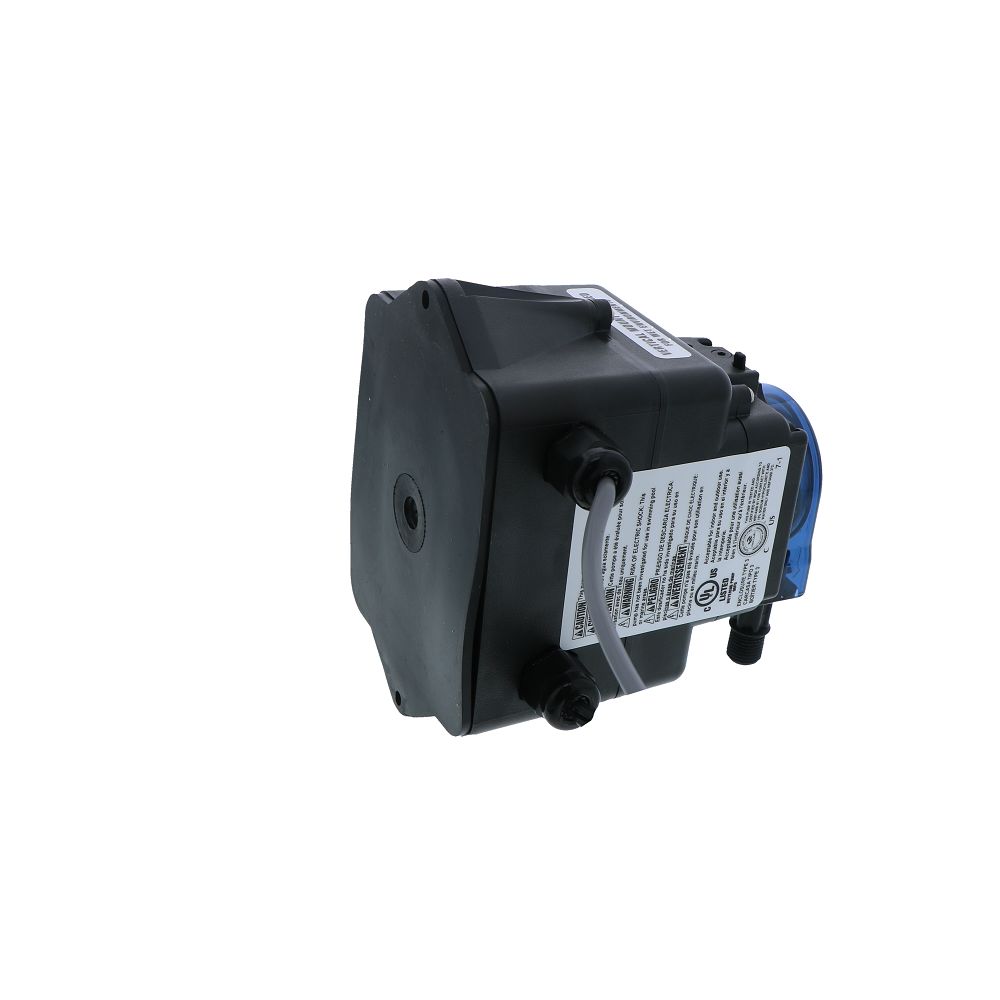

Stenner Econ FP Series Flow Activated Pump 16 GPD #G Tube 120V

The Stenner E20PHG81S Econ FP is a flow activated pump which is specifically designed to interface with a dry contact water meter, dry contact flow switch, or a 12-24 VAC/VDC signal from any control equipment. This flow activated pump can be used with meter systems or other control systems that respond to flow.

Features:

• The Stenner FP Series pumps are for light duty applications. The Stenner E20PHG81S Econ FP Pump is designed for light duty applications both indoor and outdoor. This pump is excellent for drinking water disinfection or pH adjustment for private water wells in homes or farms.
• The Stenner FP Series pumps feature an 6 button control pad. The Stenner E20PHG81S Econ FP Pump features a 6 button control pad allowing the operator to make changes at any time.
• The Stenner FP Series pumps have three operating modes. The Stenner E20PHG81S Econ FP pump has three operating modes. The three operating modes are Seconds, Flow Switch or Auxiliary power.

Specifications:

• CE listed
• Tube Size: G
• Cord Length: 10 feet
• Self-priming to 25 feet
• Pump Capacity: 16 GPD
• Max Working Pressure: 80 psi
• Output Reproducibility: ± 2%

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	Max 104 °F
Amps	0.17 Amps
Housing Material	Polycarbonate
Motor Rpm	60 RPM
Pump Max Flow Rate (Gpm)	16
Pump Max Pressure (Psi)	80
Series	Econ FP
Size	Tube #G
Suction Lift	Self prime up to 25 ft.
Voltage Type	AC
Sub-Type	Programmable
Type	Single Head Pump
Voltage	120VAC
Shipping Dimensions
Shipping Length	8.19 in.
Shipping Width	8 in.
Shipping Height	9.19 in.
Product Weight & Dimensions
Product Height	9.19 in.
Product Length	8.19 in.
Product Width	8 in.
Product Weight (lbs)	17
