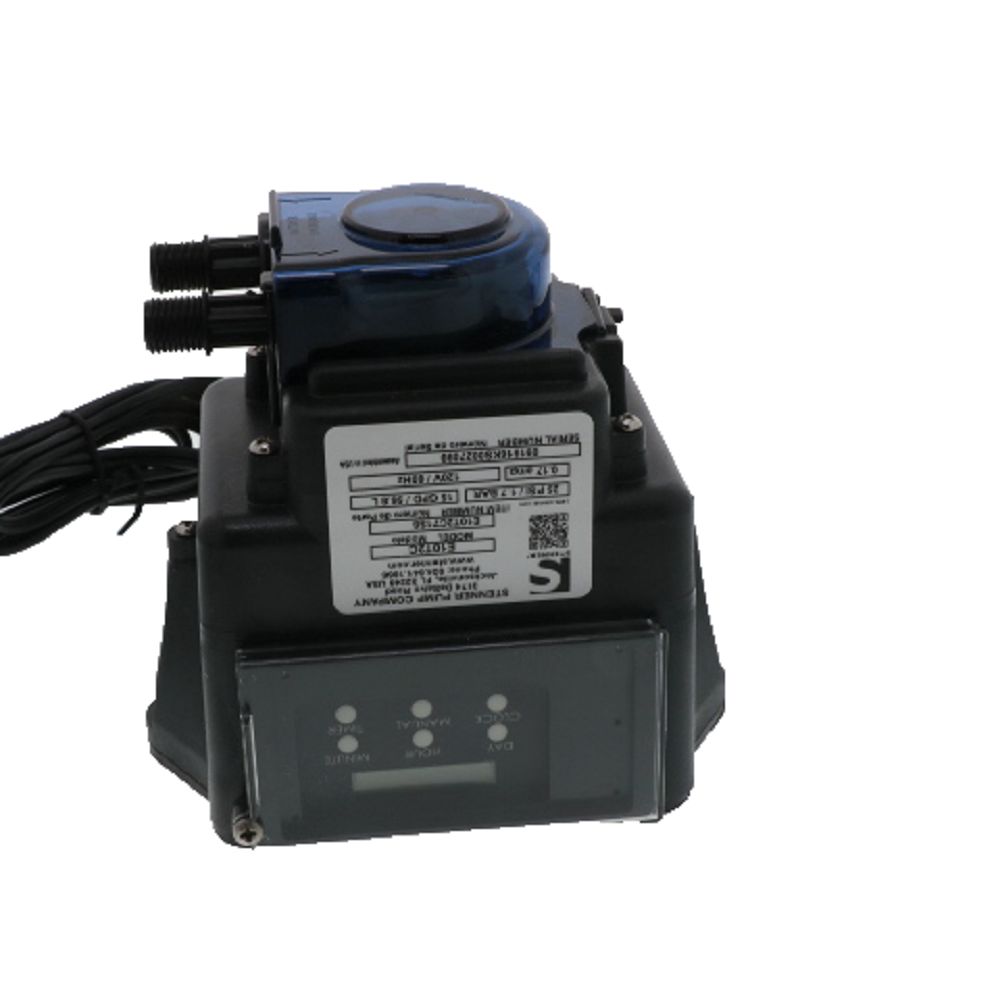

Stenner Econ T Series Timer Controlled Dosing Pump 15 GPD, Tube C 120V - 120 volt

The Stenner E10T2C71S is a peristaltic pump designed for applications that require flexible dosing times. The automatic dosing control is reliable for timed applications including injection of enzymes for drain line maintenance and biocide feed in small cooling towers or water fountains.

Features:

• Built-in Timer Control. The Econ T Series features a built-in timer control with LCD screen, making it perfect for timed chemical dosing. The timer control operates off a 24-hour clock that can be programmed for 24 separate events over a 7-day period.
• The Stenner Econ T Series require little maintenance. The Stenner E10T2C71S has a battery backup and the sliding tube head cover allows for simple tube replacement.
• WQA Certified. This product is certified by WQA against NSF/ANSI Standards 61 & 372.

Additional Specifications:

• UL Listed
• Tube Size: C
• Pump Capacity: 15 GPD
• Max Working Pressure: 80 psi
• Max Temperature: 104°F
• Housing Material: Polycarbonate
• Tube Material: Santoprene

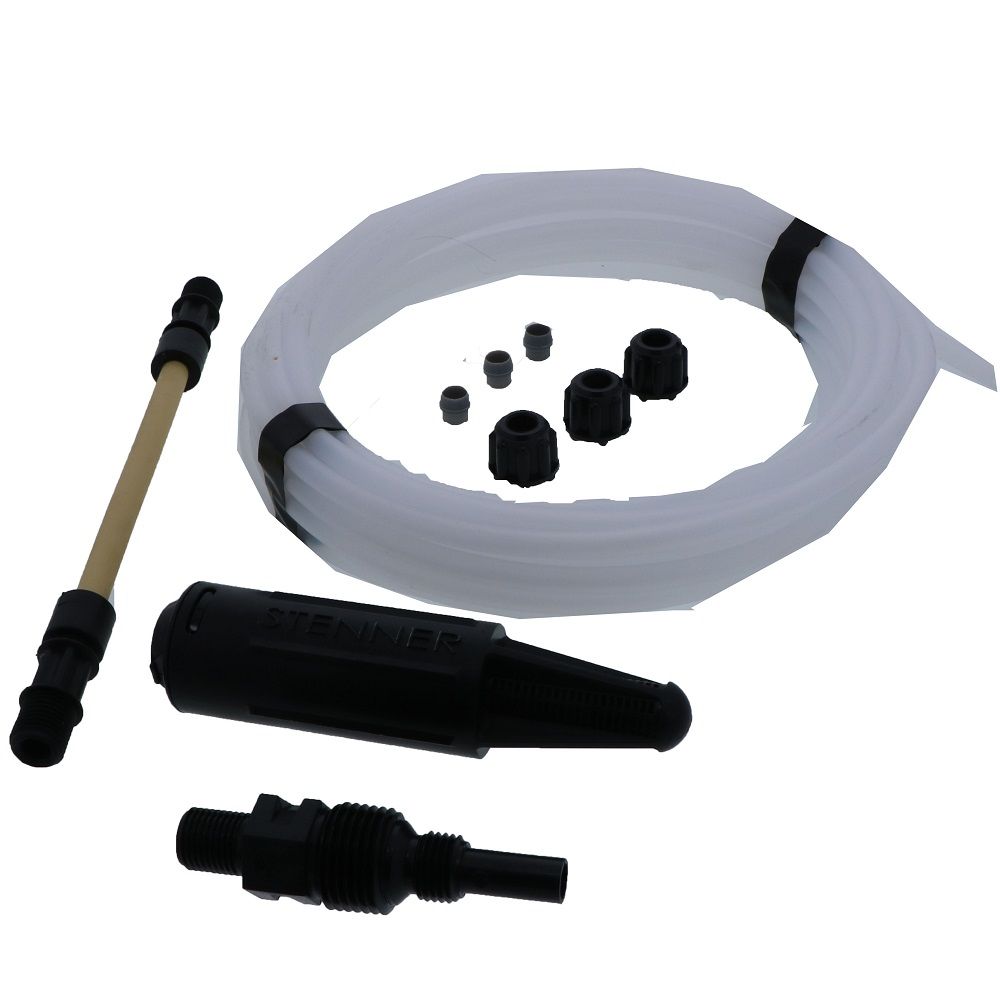

Accessory Kit

• 1/4" connecting nuts (3)
• 1/4" ferrules (3)
• Injection check valve 80 psi
• 1/4" weighted suction line strainer
• 20´ roll suction/discharge tubing 1/4"
• Additional pump tube
• Manual

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	Max 104 °F
Amps	0.17 Amps
Housing Material	Polycarbonate
Motor Rpm	9, 18, or 40 RPM
Pump Max Flow Rate (Gpm)	15
Pump Max Pressure (Psi)	25
Series	Econ T
Size	Tube #C
Suction Lift	25 ft Max
Voltage Type	AC
Sub-Type	Timer Controlled
Type	Single Head Pump
Voltage	120VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	1 Year
Shipping Dimensions
Shipping Length	8 in.
Shipping Width	8 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Height	5.8"
Product Length	5.3"
Product Width	3.6"
Product Weight (lbs)	3.8
