Stenner Econ FP Series Pump with 7.5 Gallon Tank #F Tube 4.5 GPD System - 120 volt

The Stenner S7NE20PHF81S Econ FP Pump with 7.5 gallon tank features a flow activated pump which is specifically designed to interface with a dry contact water meter, dry contact flow switch, or a 12-24 VAC/VDC signal from any control equipment. This flow activated pump can be used with meter systems or other control systems that respond to flow. The tank features a childproof lid and rain-roof. The tank is constructed from Polyethylene and NSF 61 & 372 certified.

Features:

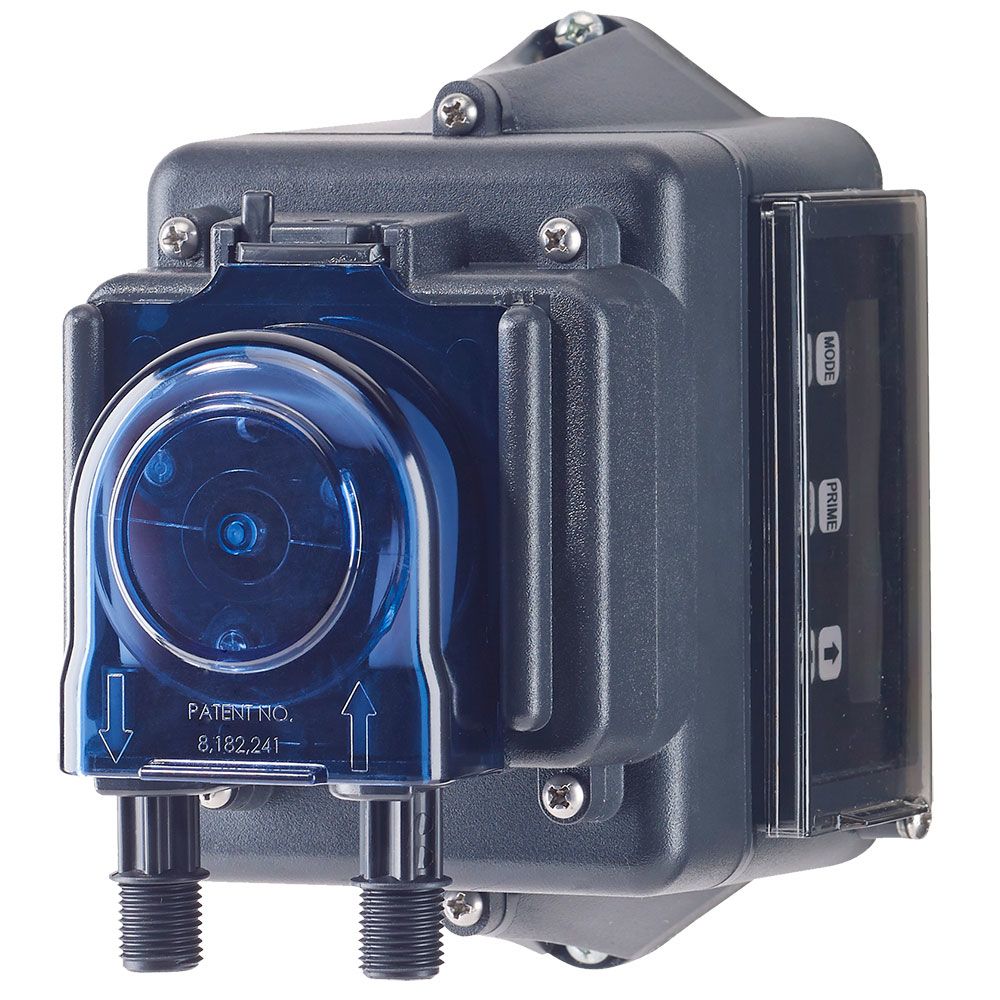

• Stenner Econ FP Series Pumps are small but powerful. The Stenner S7NE20PHF81S features the Econ FP Series Pump. This pump is built with three operating modes: seconds, flow switch, and Auxiliary. The flow rate for this pump is 4.5 Gallons per day.

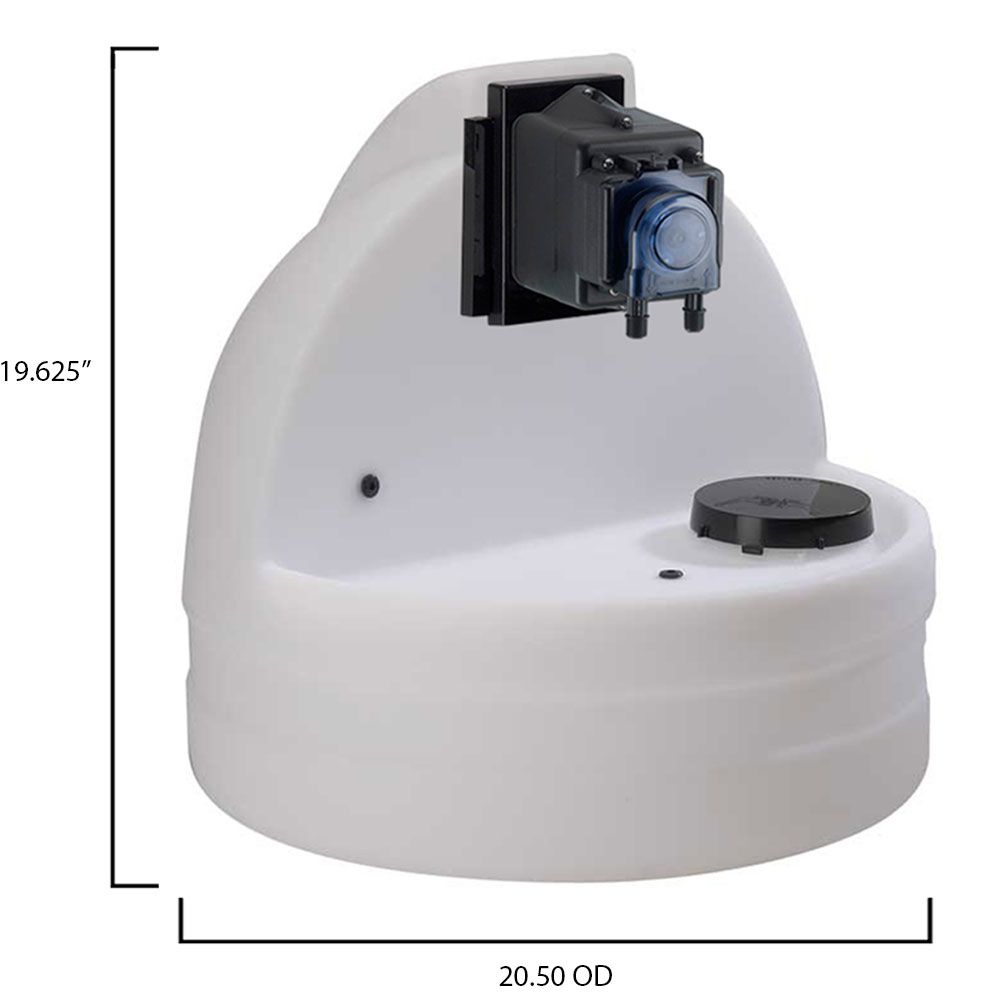

• Stenner Econ 7.5-Gallon Tank is lightweight and UV resistant. The Stenner Econ 7.5-Gallon Tank is a white UV resistant tank that features a child resistant lid. This tank is constructed of Polyethylene and is lightweight.
• Stenner Accessory Kit is shipped with each pump. The accessory kit includes 3 connecting nuts (1/4"), 3 ferrules (1/4"), 1 injection check valve, 1 weighted suction line strainer (1/4"), 1 twenty foot roll suction/discharge tubing (1/4"), 1 additional pump tube, and manual.

Specifications:

• Pump Capacity: 4.5 gpd
• Max Temperature: 104°F
• Cord Length: 10 foot
• Tube Material: Santoprene
• Tank Material: Polyethylene
• Max Working Pressure: 80 psi
• Series: FP flow activated pump
• Tank Certification: NSF 61 & 372 approved

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	Max 104 °F
Amps	0.17 Amps
Housing Material	PC (pump), HDPE (tank)
Motor Rpm	60 RPM
Pump Max Flow Rate (Gpm)	4.5
Pump Max Pressure (Psi)	80
Series	Econ FP
Size	Tube #F
Suction Lift	Self prime up to 25 ft.
Voltage Type	AC
Sub-Type	Chemical Injecting System
Type	Single Head Pump
Voltage	120VAC
Shipping Dimensions
Shipping Length	23 in.
Shipping Width	23 in.
Shipping Height	21 in.
Product Weight & Dimensions
Product Weight (lbs)	19
