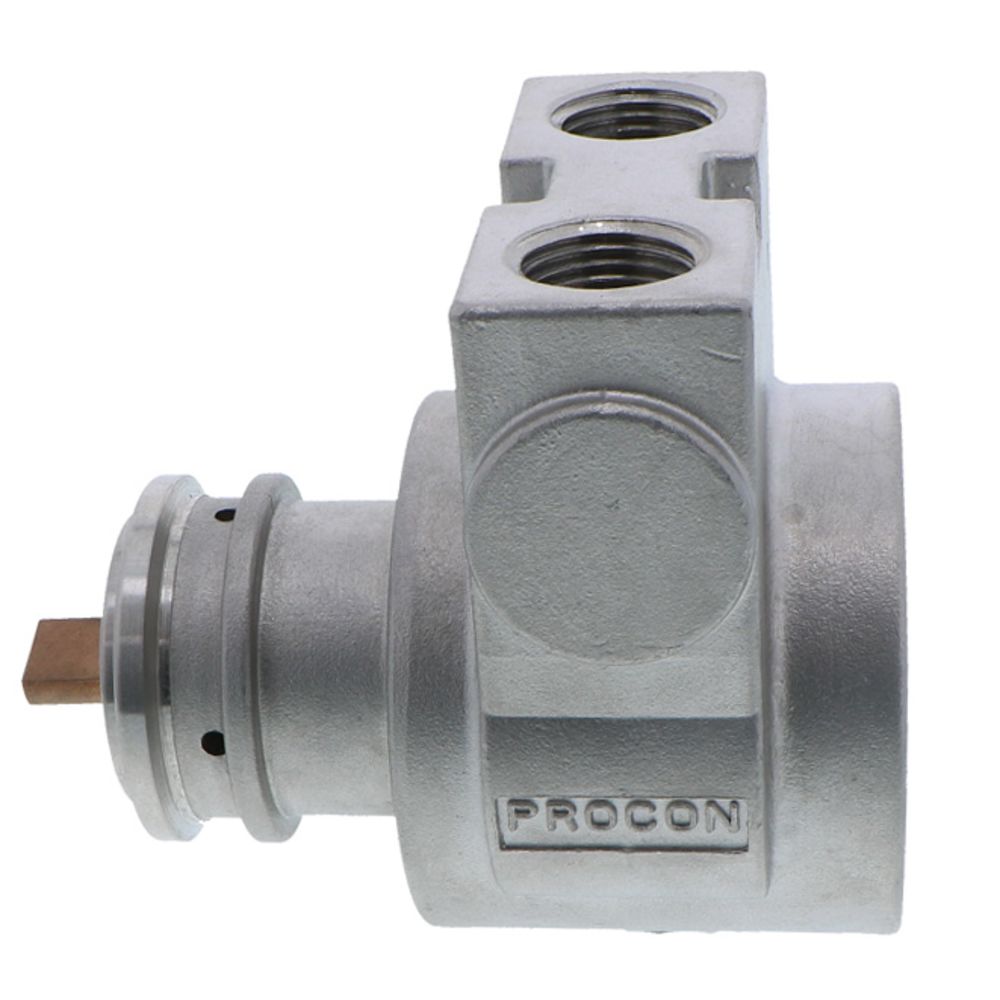

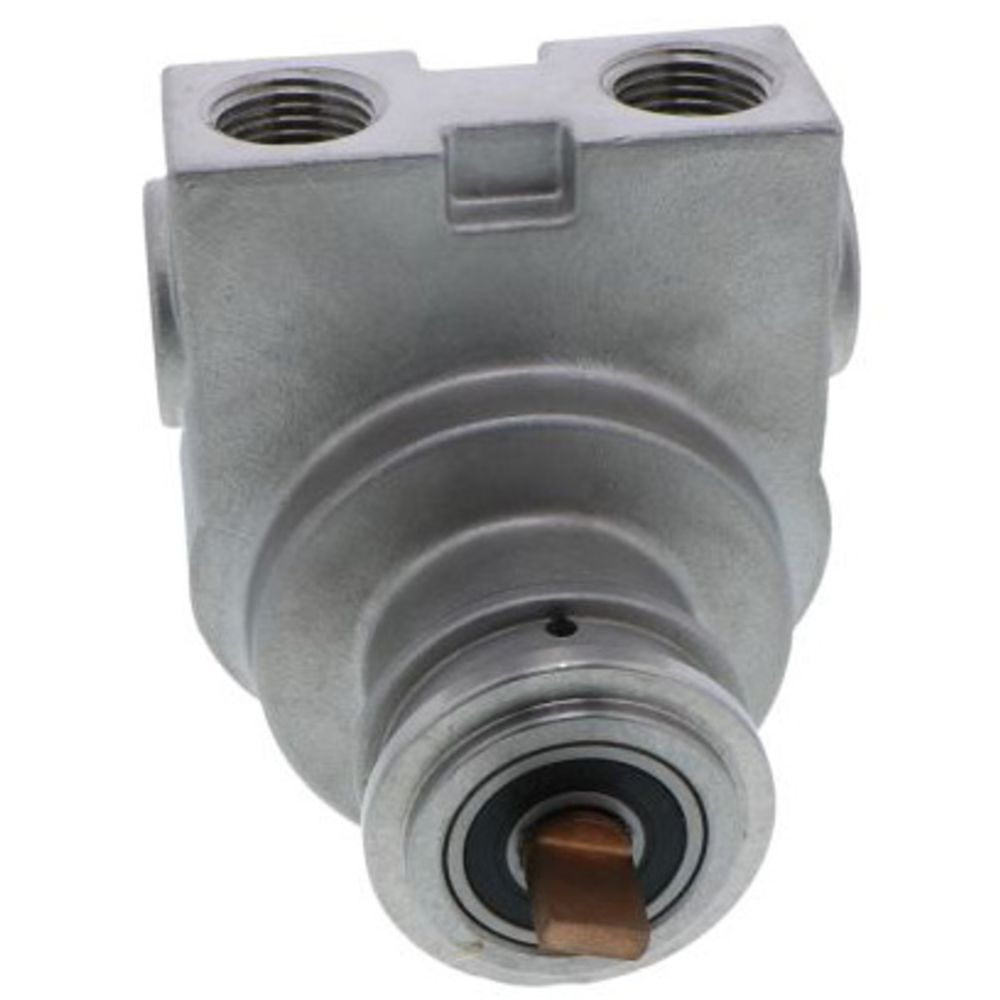

Procon Pump NSF Stainless Steel 165 GPH 1/2" NPT w/ 1143 Bronze Coupling (Clamp-on)

The Procon Pump NSF Stainless Steel 165 GPH 1/2" NPT w/ 1143 Bronze Coupling (Clamp-on) rotary vane pump is a positive displacement pump. This Series 5 Procon pump is stainless steel with 1143 Bronze Coupling. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 165 gallons per hour. The seal configuration uses FDA grade Nitrile Type 21, which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 5 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 115B165F31XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Specifications:

• Capacity: 165 GPH
• Nominal Speed: 1725 RPM
• Maximum Discharge Pressure: 250 PSI
• Rotation: clockwise/slinger
• Weight: 2.5 lbs
• Seal Configuration: FDA grade Nitrile Type 21
• Port Size: 1/2" NPT Inlet and Outlet
• NSF STD. 169 Listed
• Stainless Steel
• 1143 Bronze Coupling

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Stainless Steel
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	1/2" MPT
Mounting Options	Clamp On
Outlet Connection	1/2" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	165
Series	5
Size	1/2"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	3.75
Product Length	4.5
Product Width	3.75
Product Weight (lbs)	4.5
