Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on)

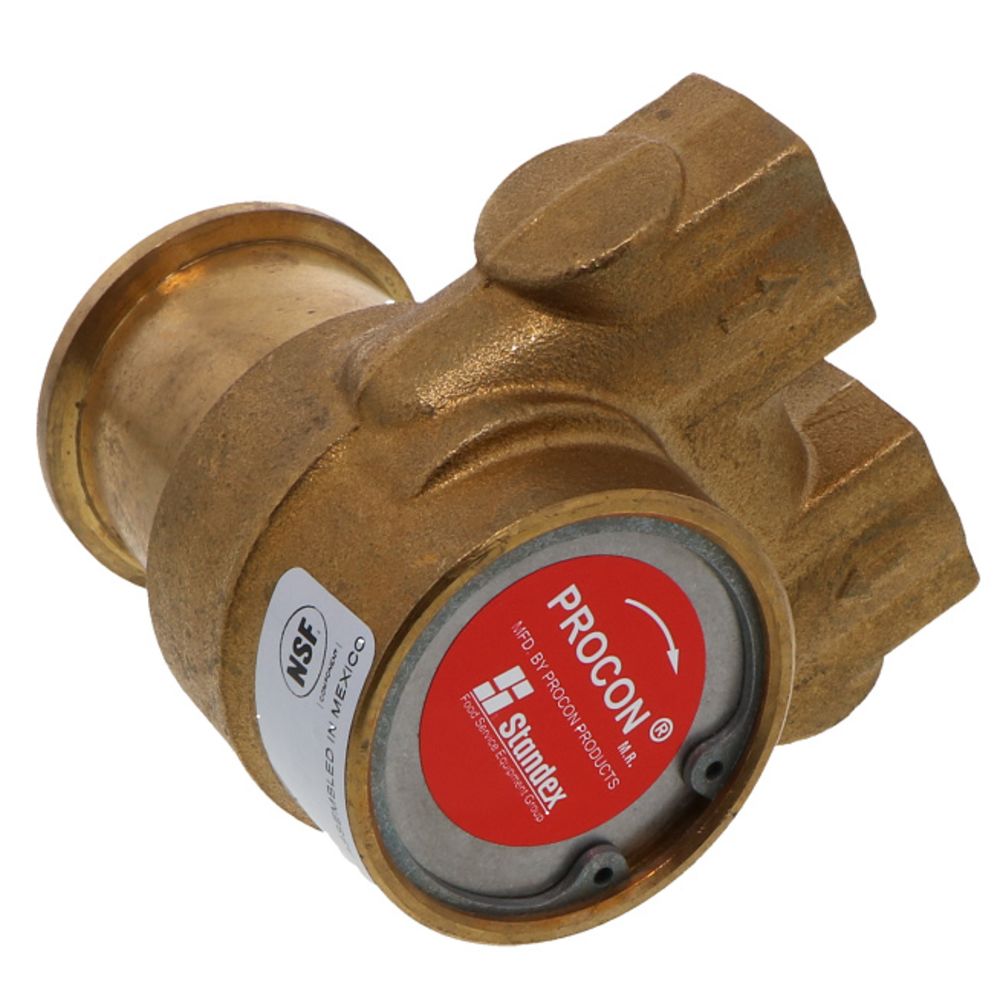

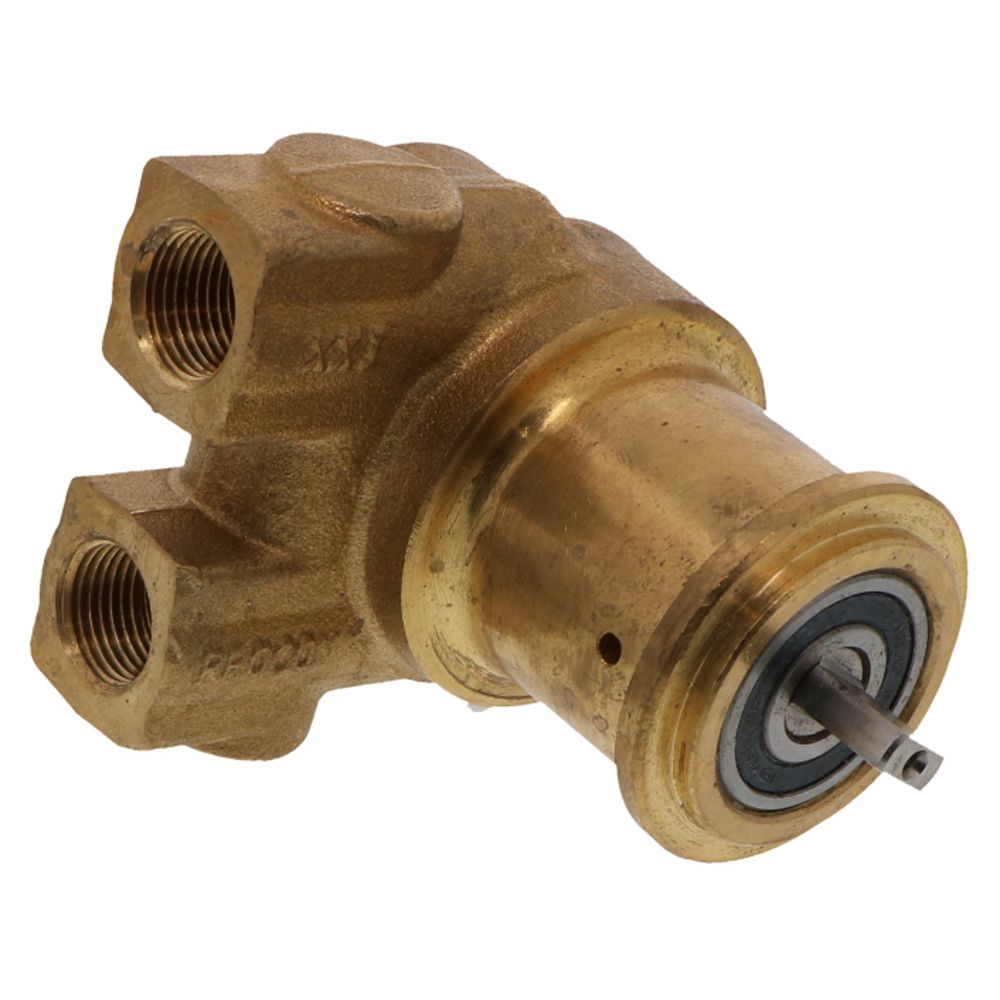

The Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on) Series 2 Rotary Vane Pump is a positive displacement pump. This Series 2 Procon pump is brass and includes a .188" Double Flat Drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 80 gallons per hour. The elastometer and seal configuration for this pump is high-quality Nitrile Type 21, which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 112B125F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.
Specifications:

• NSF Standard 169 listed
• Capacity: 80 GPH
• Nominal Speed: 1725 RPM
• Maximum Discharge Pressure: 250 PSI
• Rotation: Clockwise
• Self-priming & maintenance free
• Port Size: 3/8" NPT Inlet and Outlet
• .188" Double Flat Drive

Typical Applications:

• Carbonation
• Espresso & coffee
• Welding
• Cold carb circulation
• Reverse osmosis
• Beer chillers
• Pesticide Systems
• Solar Applications

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8" MPT
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	80
Series	2
Size	3/8"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	SPCL Clearance (1x) Liner & BRGS
Product Height	3
Product Length	4
Product Width	3
Product Weight (lbs)	2.8
