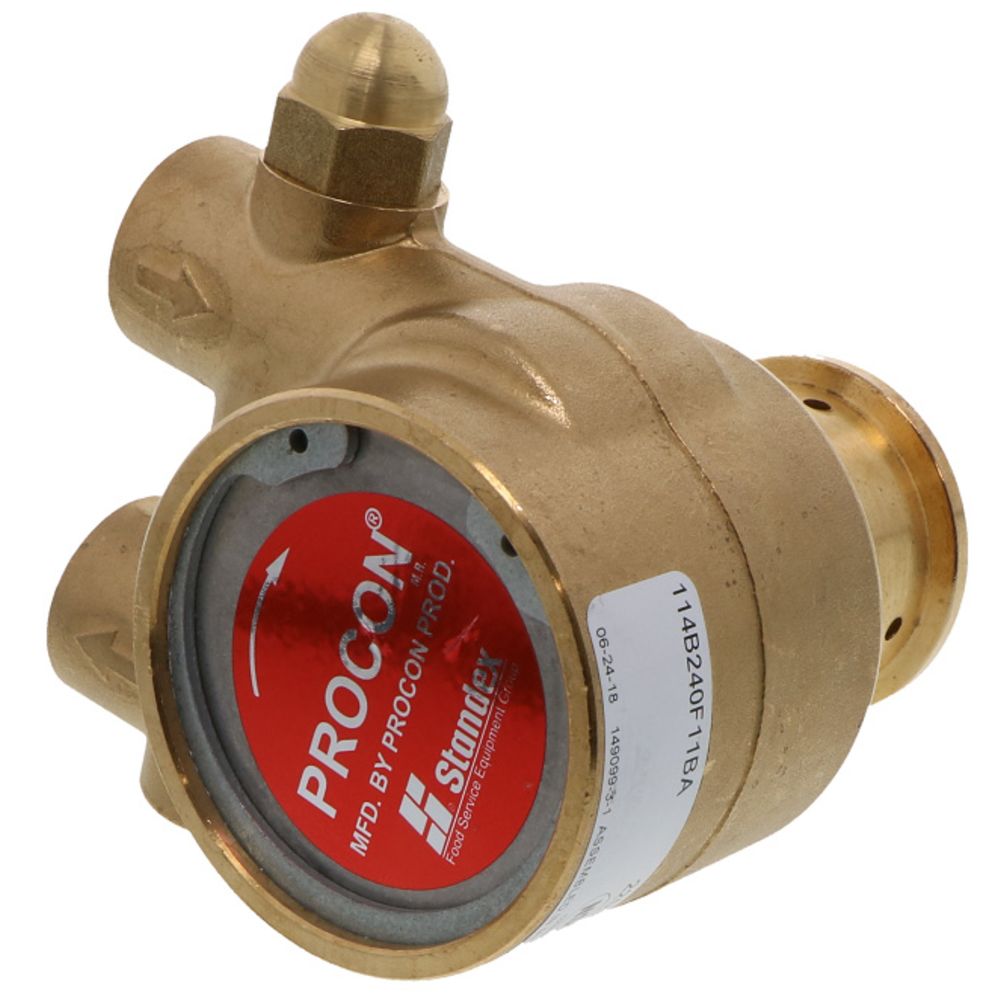

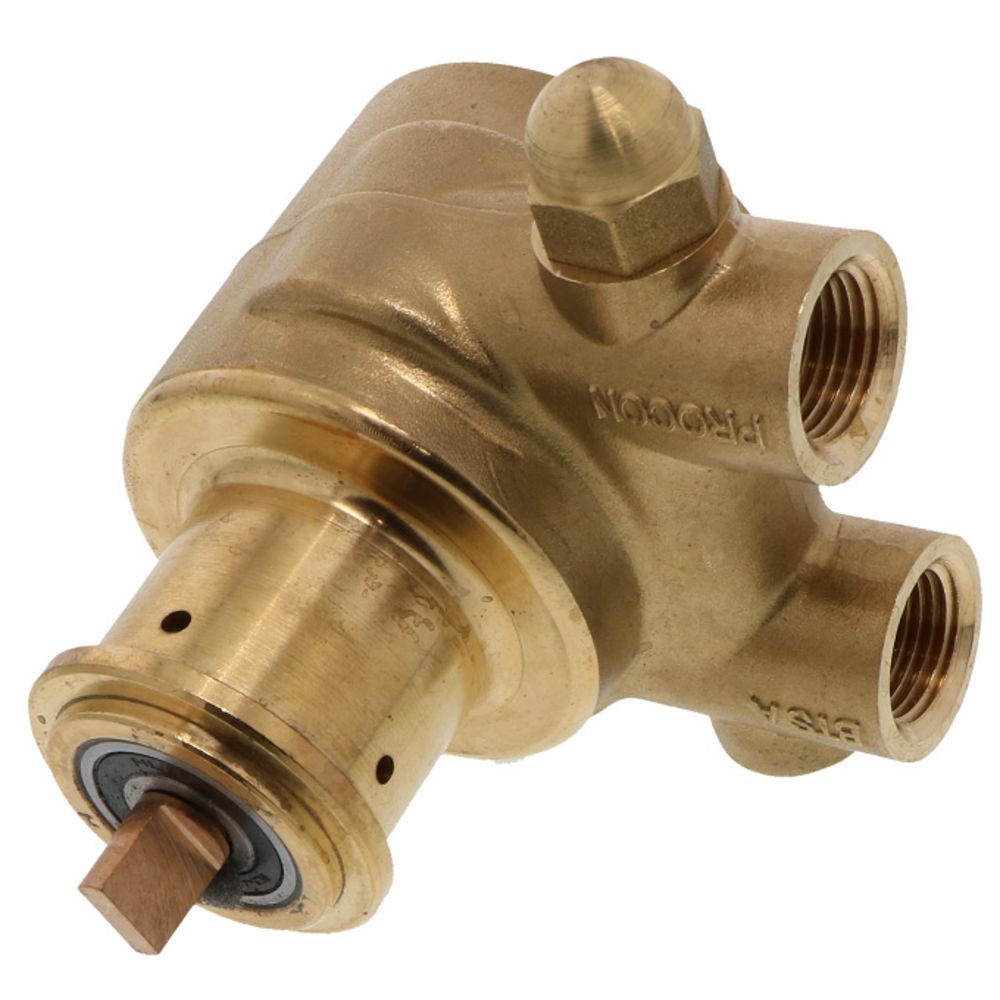

Procon Pump NSF Brass 240 GPH 1/2" NPT - 225 psi PRV w/ 1143 Bronze Coupling (Clamp-on)

The Procon Pump NSF Brass 240 GPH 1/2" NPT - 225 psi PRV w/ 1143 Bronze Coupling (Clamp-on) rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a .188" double flat drive. The inlet and outlet ports are 3/8" NPT, with an intergral strainer, and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 114B240F11BA225 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The default pressure relief valve setting for this pump is 225 PSI. The 114B240F11BA225 pump is designed to be directly connected to the motor with a stainless steel clamp.


Specifications:

• Capacity: 240 GPH
• Nominal Speed: 1725 RPM
• Relief Valve: 225 PSI
• Rotation: Clockwise
• Weight: 2.5 lbs
• Port Size: 1/2" NPT Inlet and Outlet with intergral strainer
• Double Flat Drive: .188"

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	1/2" MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	1/2" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	240
Pump Max Pressure (Psi)	250
Series	4
Size	1/2"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	3.75
Product Length	4.5
Product Width	3.75
Product Weight (lbs)	4
