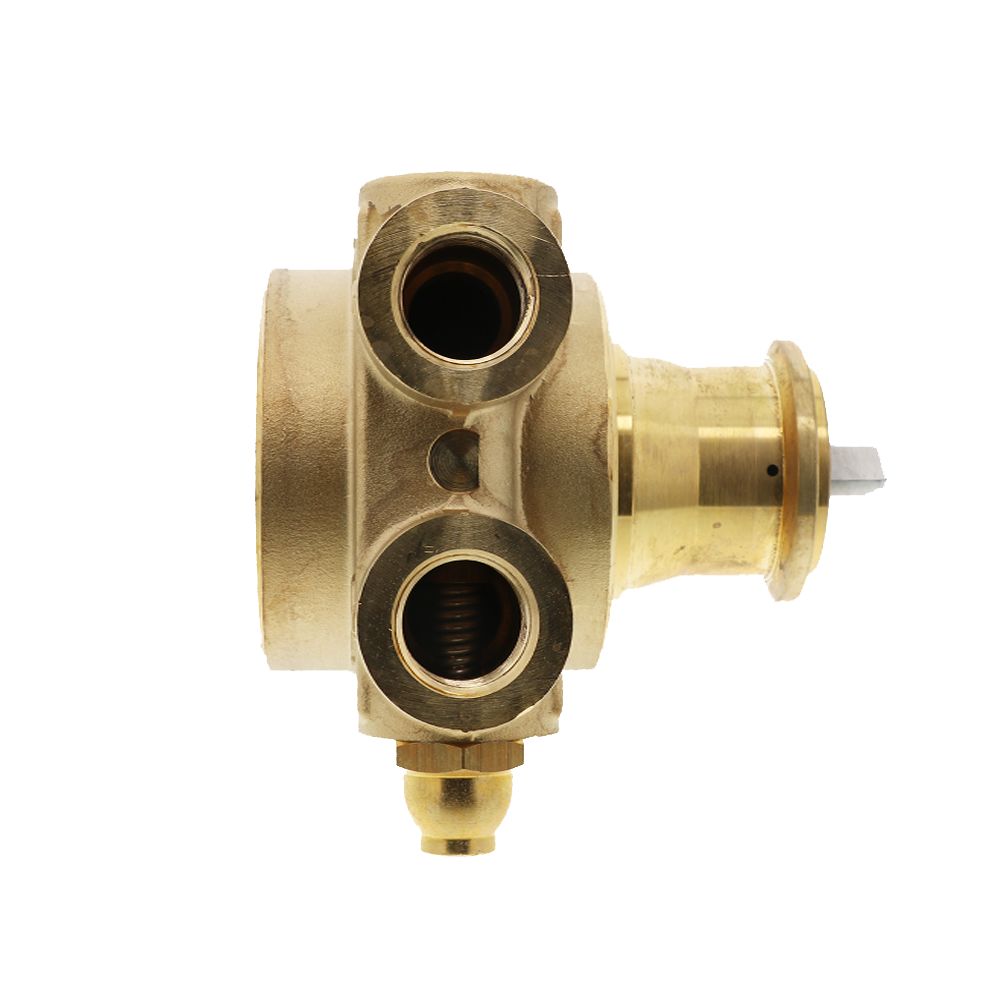

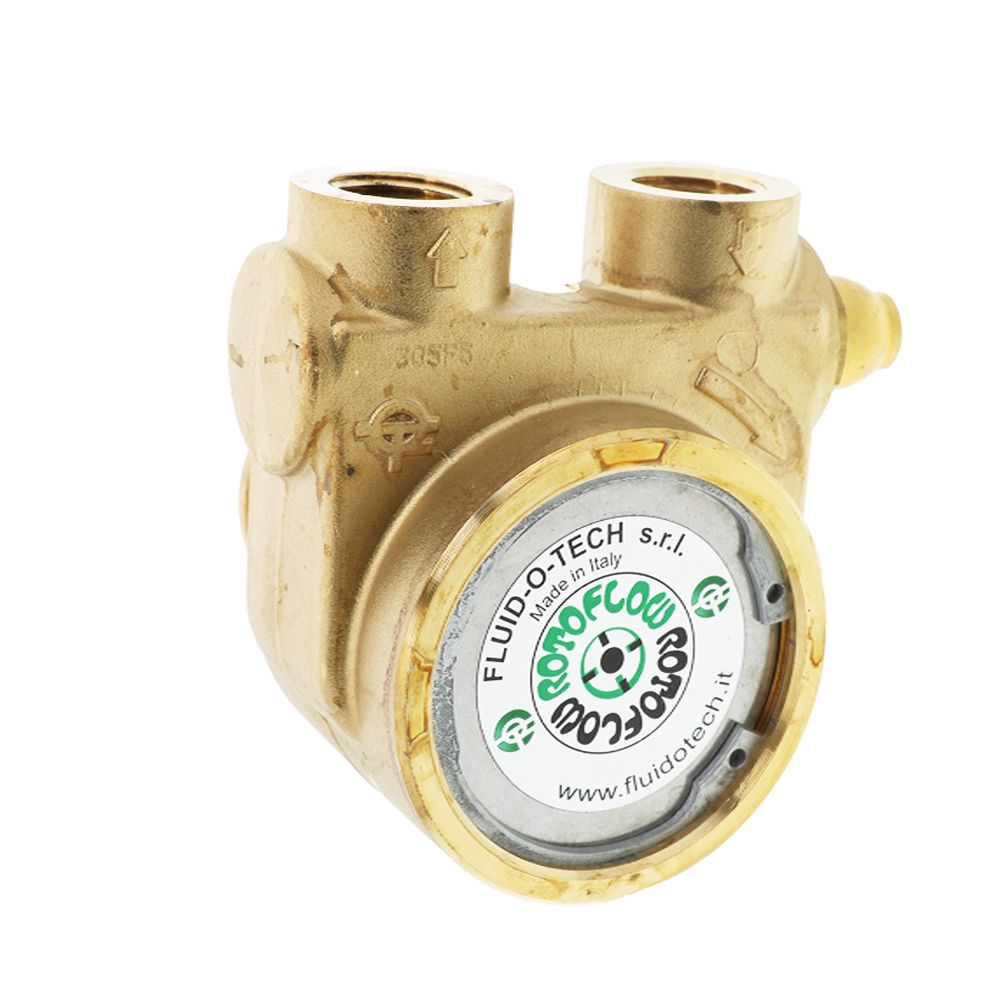

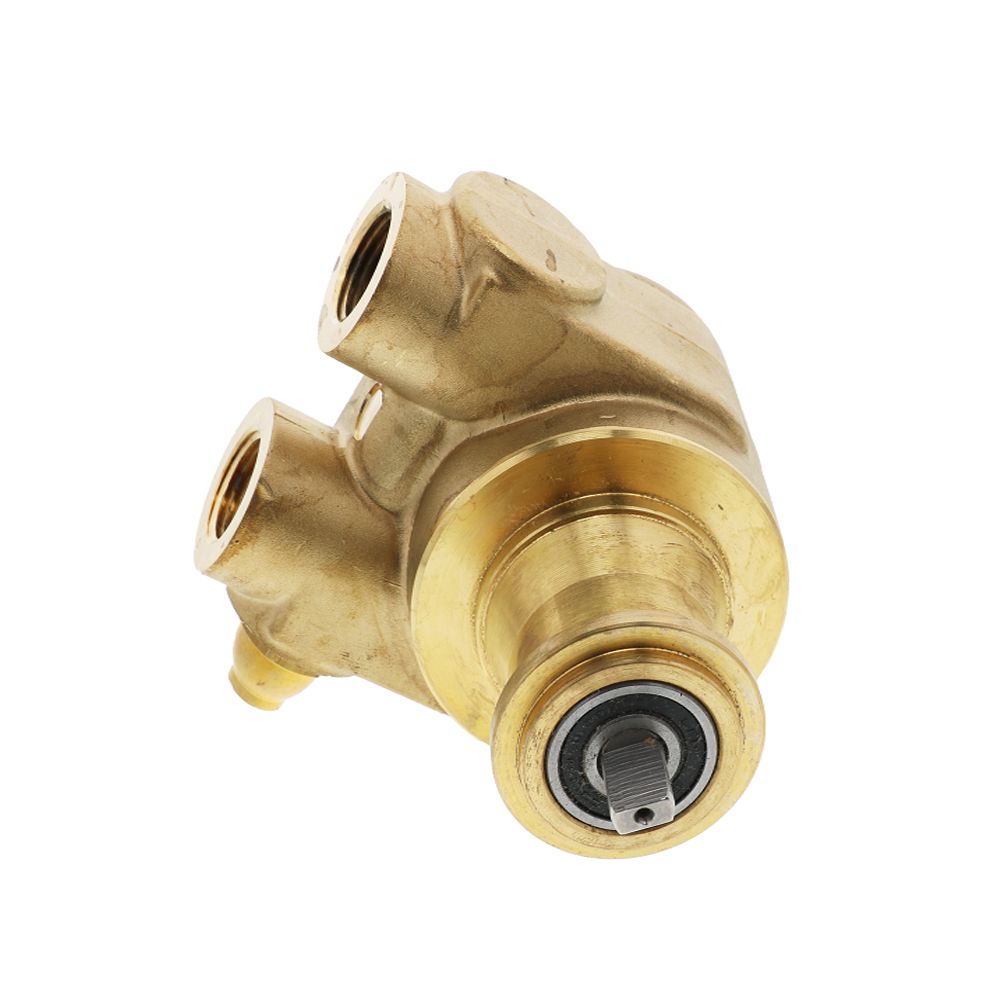

Fluid-o-Tech Lead Free Brass Rotary Vane Pump with Brass Key 190 gph 1/2" NPT

Fluid-o-Tech PV601-225 is a 225 gallon per hour rotary vane pump. The PV601-225 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of lead-free brass, and comes with a band clamp mount and a pressure bypass.

Specifications:

• Flow rate: 225 gallons per hour
• Material: lead-free brass housing, graphite chamber
• 1/2" NPT ports
• Clamp Mount: 4.2 lbs. (1.9kg)
• Max Static Pressure: 290 PSI
• Max Operating Temperature: 158°F
• Max Speed: 1725 RPM

Applications:

• Beverage Vending Machines
• Booster Systems
• Cooling Systems
• Espresso Coffee Machines
• Post Mix Drink Dispensers
• Water Dispensers
• Water Treatment

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Elastomer Type	Buna-N
Inlet Connection	1/2" FPT
Mounting Options	Bolt-On
Outlet Connection	1/2" FPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	190
Size	1/2"
Connection Type	Female (FPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	4.4
