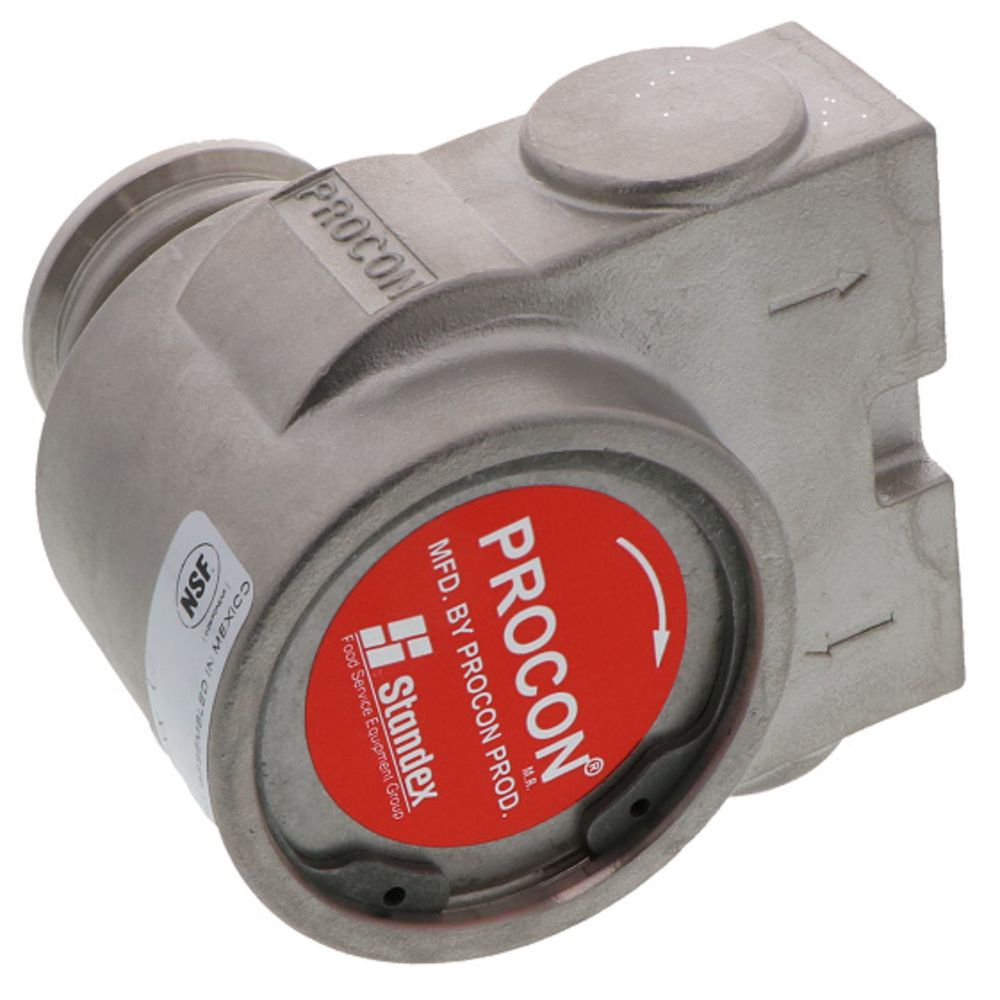

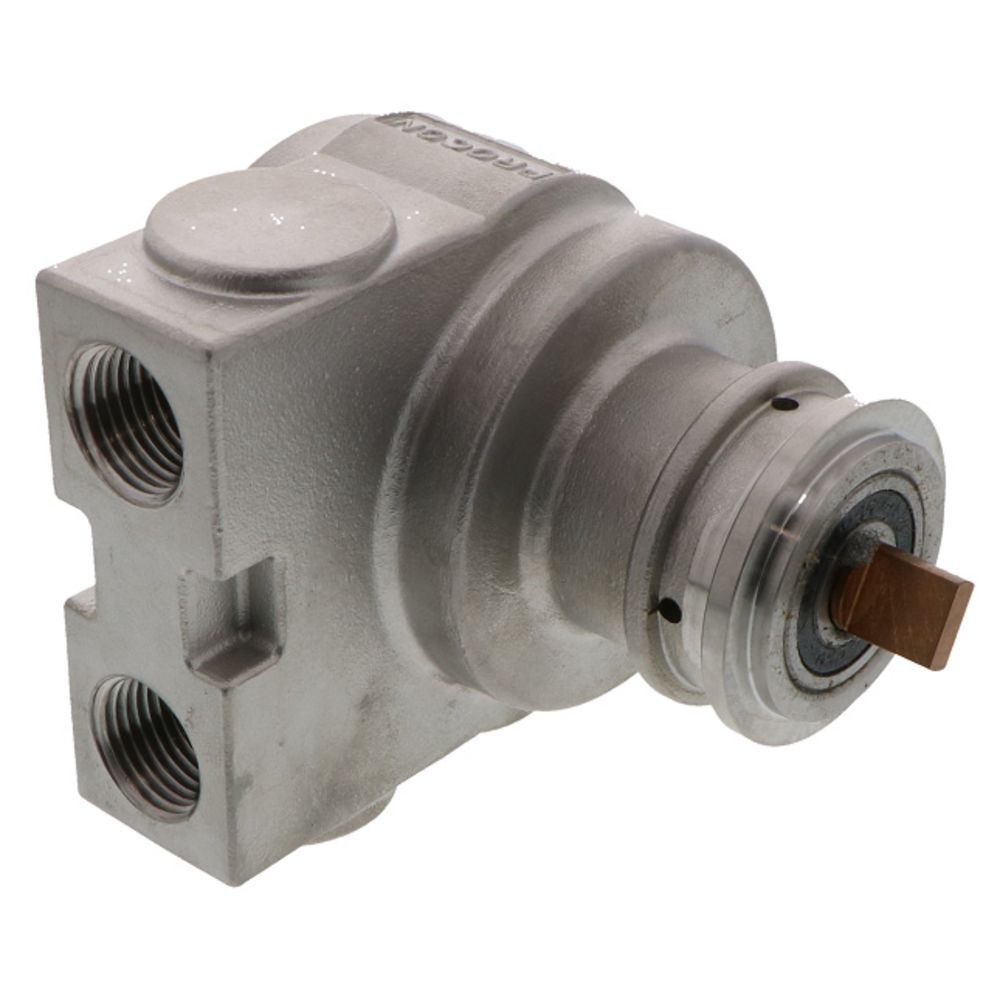

Procon Pump NSF Stainless Steel 190 GPH 1/2" NPT - 250 psi w/ 1143 Bronze Coupling (Clamp-on)

The Procon Pump NSF Stainless Steel 190 GPH 1/2" NPT - 250 psi w/ 1143 Bronze Coupling (Clamp-on) is a positive displacement pump. This Series 5 Procon pump is stainless steel with 1143 Bronze Coupling. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 190 gallons per hour. The seal configuration for the 105B190F31XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 5 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 105B190F31XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Features:

• Leak-free.
• The seal configuration uses Nitrile Type 21, which will prevent leakage.
• NSF Certified
• NSF/Ansi Standard 169 for special purpose food equipment and devices.
• Typical Applications. Beverage, espresso/coffee, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.
• Low Maintenance. The Series 5 pumps are self-priming, so there is virtually no maintenance.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Stainless Steel
Capacity	115-330 GPH
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	1/2" MPT
Mounting Options	Clamp On
Outlet Connection	1/2" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	190
Series	5
Size	1/2"
Change Frequency	115-330 GPH
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	4
Product Length	4.75
Product Width	4
Product Weight (lbs)	4.5
