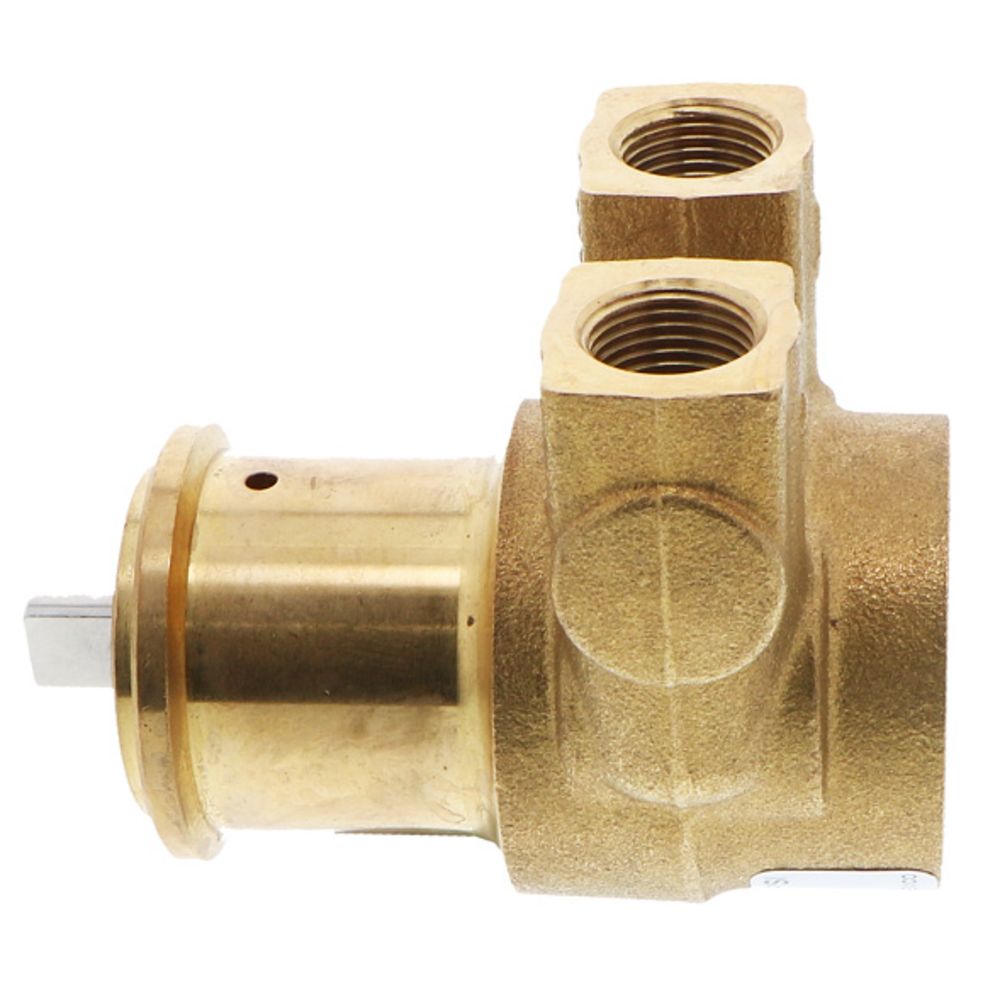

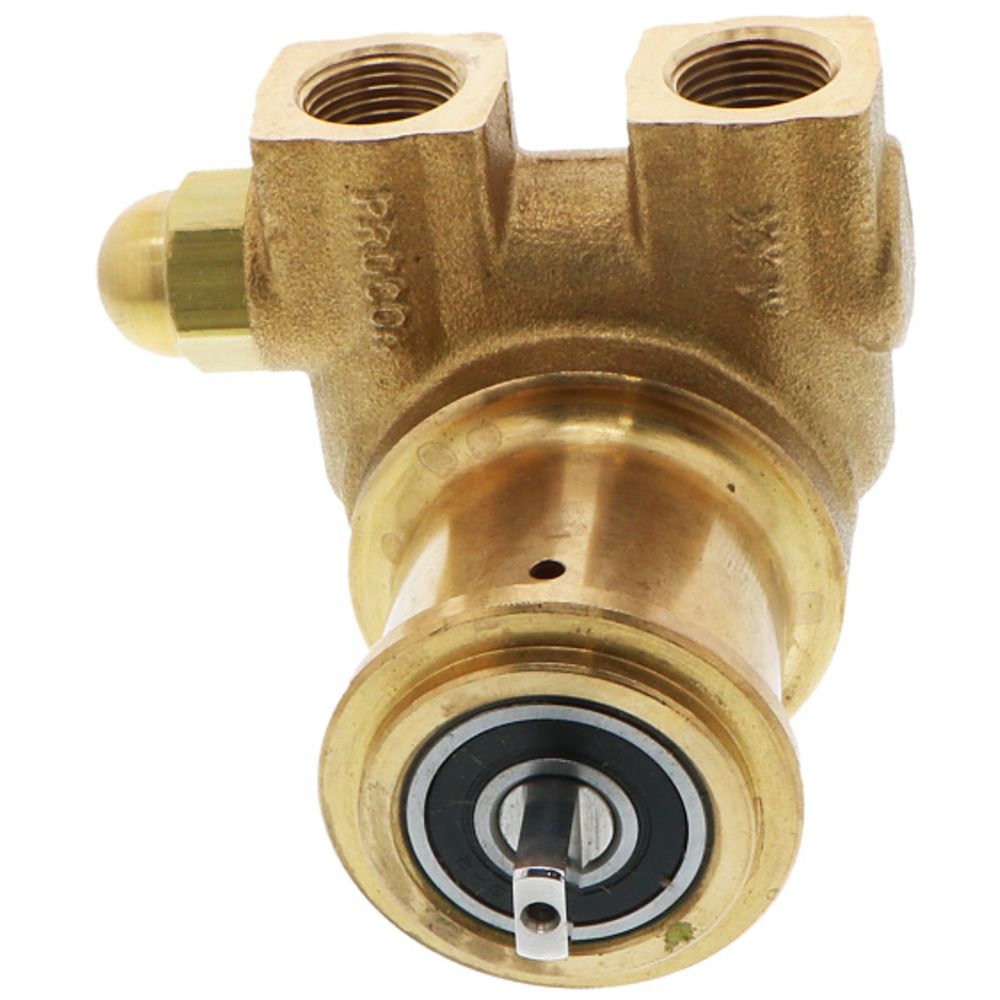

Procon Pump Brass w/ .188" Double Flat Drive 100 GPH 3/8" NPT Fluorocarbon Seal - 225 PSI Relief Valve

Procon 102A100R11BA225 rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 102A100R11BA225 uses Flourocarbon Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 225 PSI. The 102A100R11BA225 pump is designed to be directly connected to the motor with a stainless steel clamp.

Specifications:

• Capacity: 100 GPH

• Nominal Speed: 1725 RPM

• Relief Valve: 225 PSI

• Rotation: ClockwiseWeight: 2.5 lbs

• Port Size: 3/8" NPT Inlet and Outlet

• Double Flat Drive: .188"

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Direction	Clockwise
Elastomer Type	Fluorocarbon
Inlet Connection	3/8" MPT
Min Pressure (Psi)	150
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	100
Pump Max Pressure (Psi)	250
Series	2
Size	3/8"
Surface Area	3.25 Square"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	2.75
