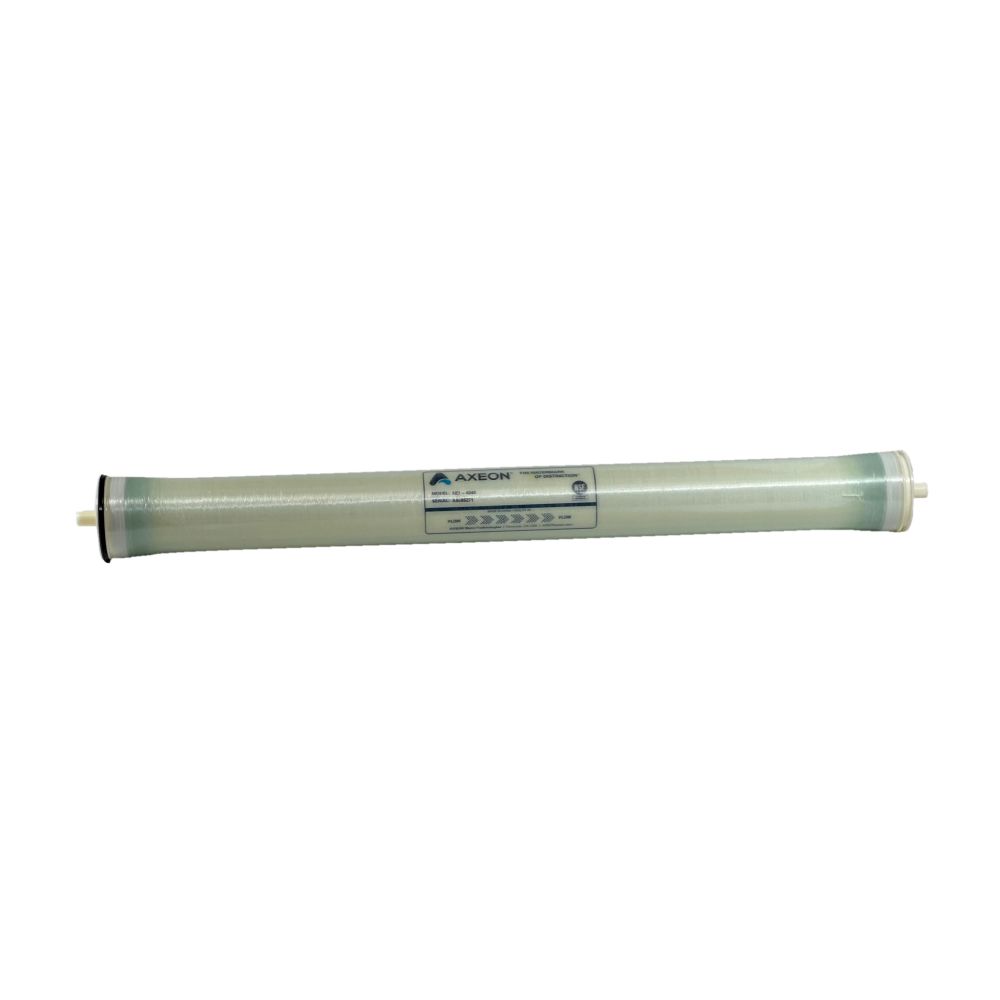

AXEON RE1-4040 2000 GPD RO Membrane Element

The AXEON RE1-4040 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The RE1-4040 RO membrane offers exceptional performance in surface and groundwater applications with high salt concentrations. They are designed to operate at an applied pressure of 225 psi, providing a nominal rejection rate of 99%. AXEON LE1 Series membranes are fiberglass wrapped and manufactured in a state-of-the-art ISO-9001 compliant automated facility providing consistent quality.

Specifications:

• Permeate Flow Rate: 2000 gallons per day
• Membrane Type: Polyamide Thin-Film Composite
• Applied Pressure: 225 psi
• Dimensions: 4" x 40"
• Chlorine Tolerance: 0 ppm
• Maximum Operating Temperature: 113° F
• Applications: Brackish Water
• Comparable to the AXEON HR3-4040

AXEON RO membranes are dry packed

Compatible with:

Filmtec Membranes	TW30-4040, BW30-4040
Coster Engineering	625-001-634
Watts	W-4040-TW, W-4040-BW
Suez	AG4040TF, 1206774, AG4040FF, 1206761
GE Water/Desal	AG4040TF, 1206774, AG4040FF, 1206761
3M Water Filtration	66-18424

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	99%
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	225 PSI
Inner/Outer Wraps	Fiberglass
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	96%
Permeate Flow Rate	2700 gpd
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	15%
Diameter	3.95"
Shipping Dimensions
Shipping Length	41.5 in.
Shipping Width	4.5 in.
Shipping Height	4.5 in.
Product Weight & Dimensions
Product Height	4.5 in.
Product Length	41.5 in.
Product Width	4.5 in.
Product Weight (lbs)	7.3
