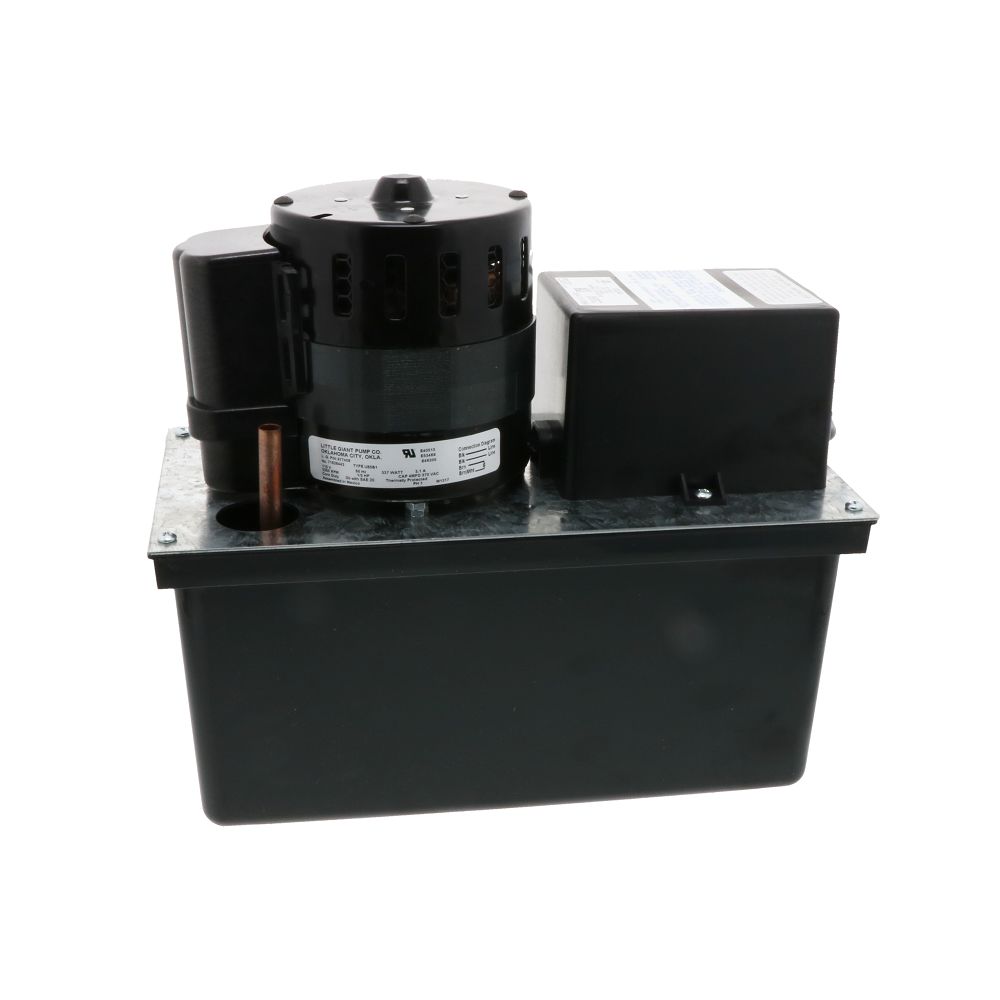

Little Giant VCL-45ULS Automatic Condensate Removal Pump 1/5 HP

The Little Giant VCL-45ULS by Franklin Electric is designed to automatically pump condensate water out of homes or businesses. Condensate removal pumps are required on many different applications such as A/C units, dehumidifiers, high-efficiency furnaces, and other equipment where an automatic drain pump is necessary. The Little Giant VCL-45ULS is a 115-Volt 1/5 HP motor that is thermally protected for the safety of the home or workplace.

Features:

• Vertical Centrifugal Pump Design. The Little Giant VCL-45ULS features a vertical centrifugal pump design and is rated for high-efficiency gas furnaces, A/C units, dehumidifiers and other automatic drain pump applications.
• Two 5" Switch Lead Wire. The Little Giant VCL-45ULS uses a safety overflow switch with two 5" switch lead wires. Inside the 1 gallon tank the safety switch is activated to prevent overflow.
• Automatic Start and Stop. The Little Giant VCL-45ULS is not a manual pump. Once it is plugged in the pump automatically starts and stops itself assuring you peace of mind that the gas furnace will not have an acidic condensate back up.

Additional Specifications:

• Max Temp: 120° F
• Power Cord: 6 feet long
• Motor Shaft: Stainless steel
• Tank Cover: Galvanized steel
• Inlet Openings: 1-1/8" diameter
• Tank, Pump & Switch Housing: ABS
• Impeller Construction: Polypropylen
• Discharge Tubing: 3/8" copper tubing

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	Max 120 °F
Amps	3.5 Amps
Barb Size	3/8" ID
Housing Material	ABS
Liquid Temperature	Max 120 °F
Power	1/5 hp 185 Watts
Power Source	3-prong plug
Pump Max Flow Rate (Gpm)	440
Voltage Type	AC
Type	Condensate Removal Pump
Voltage	115VAC
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	7 in.
Shipping Height	11 in.
Product Weight & Dimensions
Product Height	10-1/2"
Product Length	12"
Product Width	6"
Product Weight (lbs)	5.625
