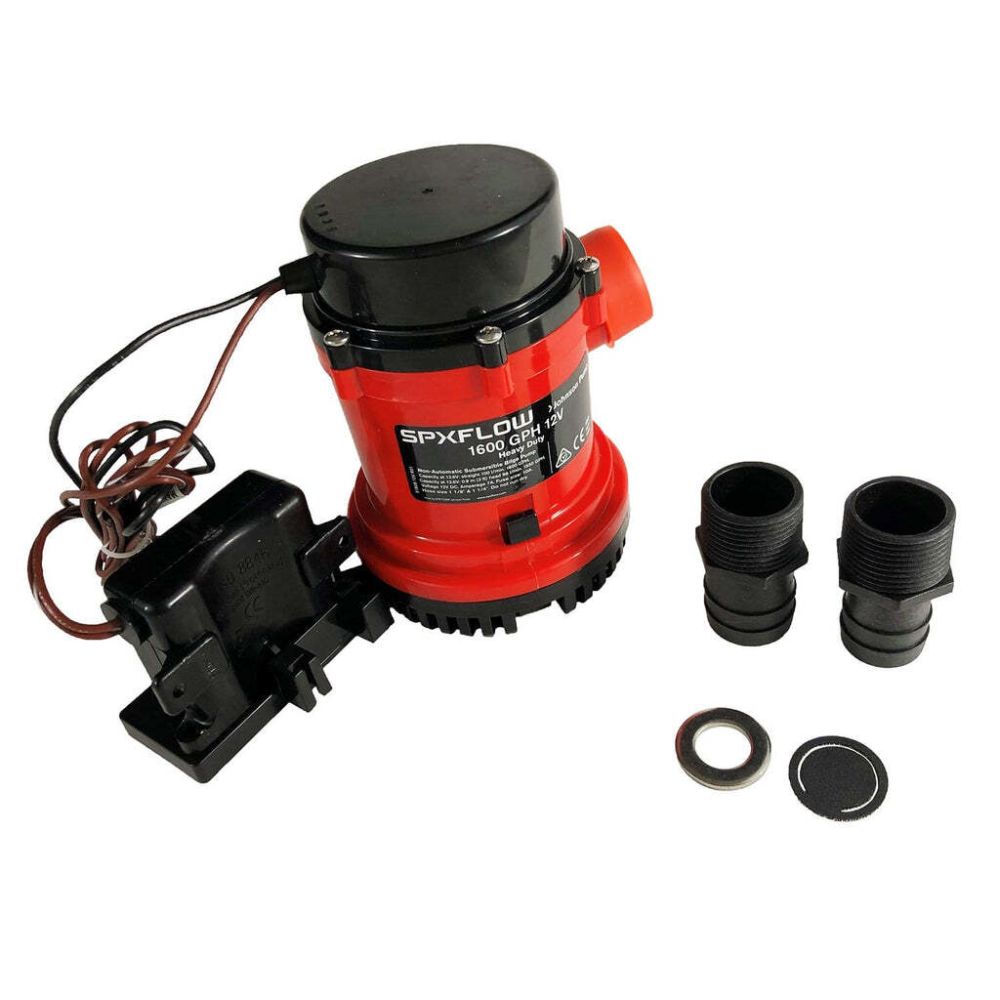

Johnson Heavy Duty - Submersible Bilge Pump 1600 GPH Ultima (with Ultima Switch)

This Johnson Heavy Duty - Submersible Bilge Pump 1600 GPH Ultima (with Ultima Switch) is equipped with the non-clogging electronic switch Ultima Switch. Designed to meet and exceed the tough demands of commercial and recreational duty.

Features:

• Pre-wired with the non-clogging electronic switch Ultima Switch (USA + rest of the world) for automatic operation
• Liquid cooled, 12-pole motor with double ball bearings for extended service life
• 2200 GPH motor is sealed off by a mechanical seal design, while the 1600 GPH model has lipseal
• Impeller is carefully designed and tested to maximize head and flow
• Universal base plate and choice of two different ports makes for a simple installation
• Removable check valve included

Product Catalog

SPX Flow Product Catalog

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Bilge
Body Material	Thermoplastic
Capacity	1.0 m head (13.6V/27.2V) - 100 L/min – 1600 GPH Straight (13.6V/27.2V) - 98 L/min – 1550 GPH
Inlet Connection	1⅛" x 1¼"
Outlet Connection	1⅛" x 1¼"
Wire Option	16 GA/1.8 m - 6 ft
Flow Rate	1600 GPH
Voltage	12V
Shipping Dimensions
Shipping Length	6.25 in.
Shipping Width	6.25 in.
Shipping Height	4.75 in.
Product Weight & Dimensions
Product Weight (lbs)	3.125
