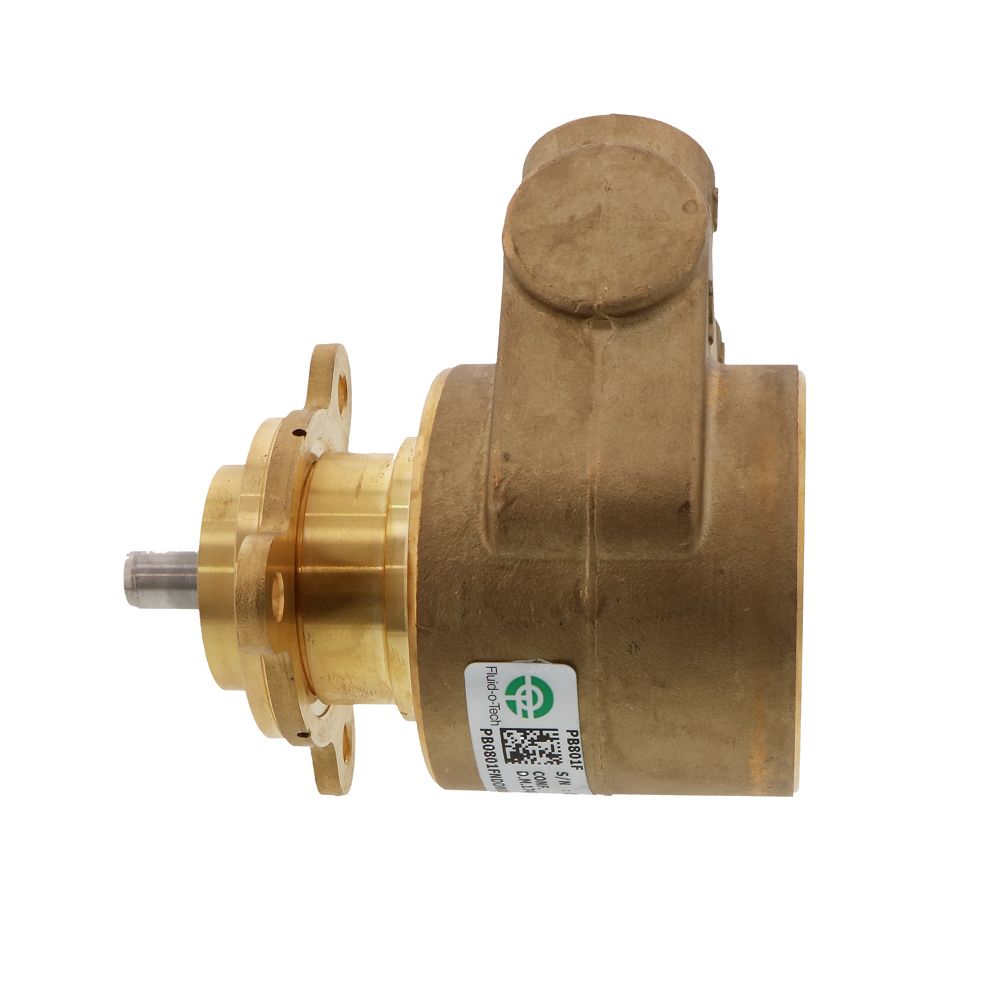

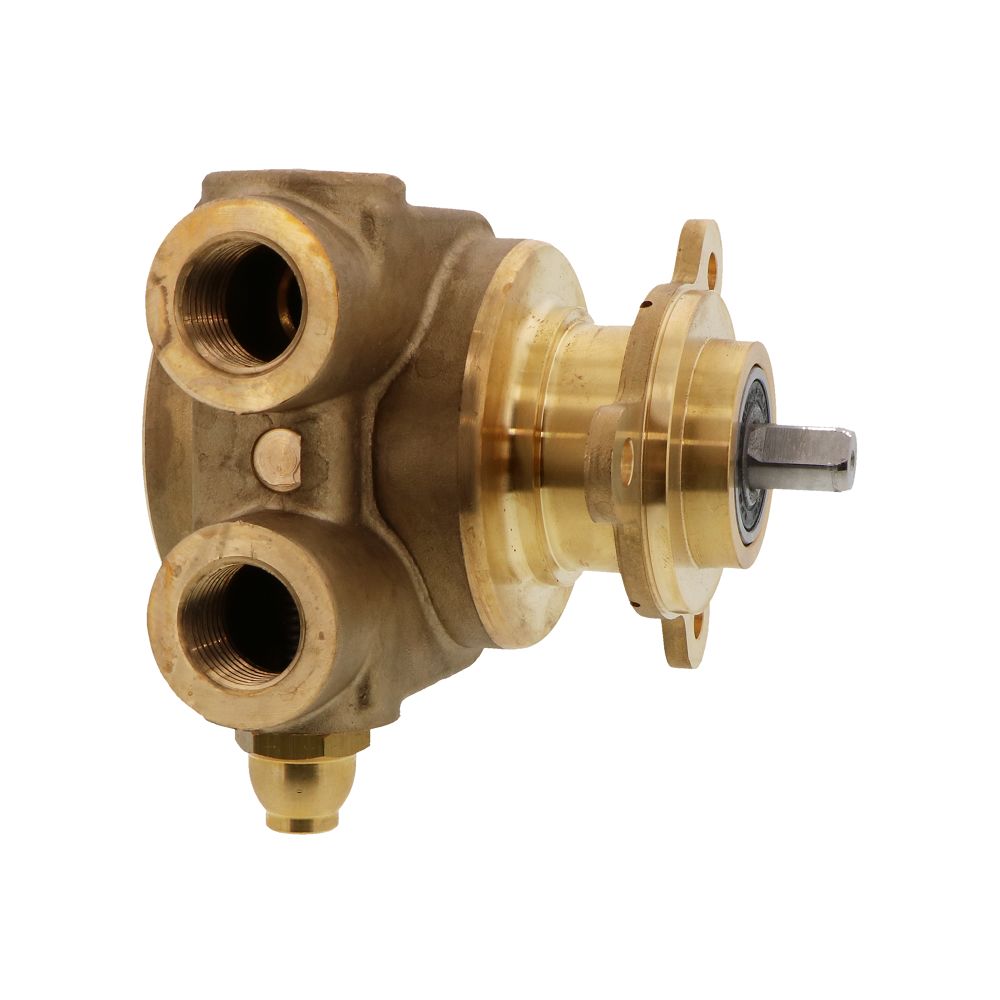

Fluid-o-Tech PB801 Lead Free Brass Rotary Vane Pump 250 gph 1/2" NPT

Fluid-o-Tech PB0801FNDDN0000 is a high volume rotary vane pump. The PB0801FNDDN0000 has an NSF approved Buna-N seal, and a flow rate of 250 gallons per hour. The pump housing is constructed out of lead-free brass, and comes with a three bolt flange mount and a pressure bypass.

Applications:

• Beverage Vending Machines
• Booster Systems
• Cooling Systems
• Espresso Coffee Machines
• Post Mix Drink Dispensers
• Water Dispensers
• Water Treatment

Specifications:

• Flow rate: 250 gallons per hour
• Material: lead-free brass housing, graphite chamber
• 1/2" NPT ports
• NSF approved Buna-N seal
• Three bolt flange mount
• Max Static Pressure: 290 psi
• Max Operating Temperature: 158°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Housing Material	Lead-free Brass
Inlet Connection	1/2" FPT
Motor Rpm	1725 RPM
Mounting Options	Bolt-On
Outlet Connection	1/2" FPT
Pump Max Flow Rate (Gpm)	250
Pump Max Pressure (Psi)	290
Size	1/2"
Connection Type	Female (FPT)
Type	Rotary Vane Pumps
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	4.65
