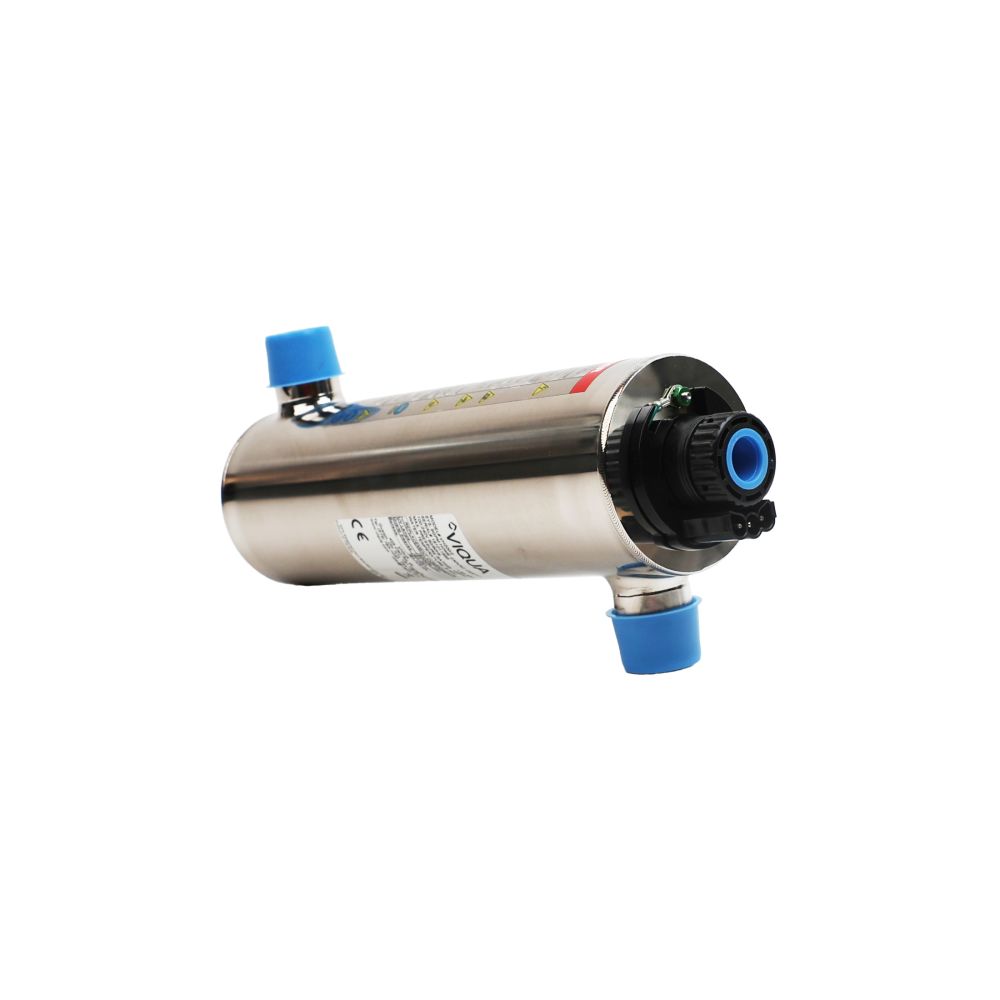

Viqua VH200/2 Cobalt Series UV System Powered By Sterilight 9 gpm - 240 Volt

The Viqua VH200/2 Cobalt Series Ultraviolet System incorporates high-output UV lamp technology coupled with the redesigned Cobalt series chamber, moving the inlet/outlet ports from an axial to S-shaped configuration making it more compact and easier to install.

Features:

• Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
• 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
• Cobalt ICE controller provides constant output current and a universal power input
• Controller alerts user with alarm if UV lamp fails
• Sealed case on the controller helps to prevent damage from accidental water intrusion
• Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
• Compact design reduces installation time and takes less space
• Lamp can be changed without interruption of water flow

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	2-40°C (36-104°F)
Body Material	304 Stainless Steel
Features	Audible Lamp Failure Visual Power On Lamp Timer Flow Restrictor
Frequency Rate	50/60 Hz
Inlet Connection	3/4" FPT 1" MPT
Max Pressure (Psi)	125
Min Pressure (Psi)	4
Outlet Connection	3/4" FPT 1" MPT
Power	35 Watts
Size	3/4" 1"
Connection Type	Male (MPT) Female (FPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	3-1/2"
Flow Rate	16 GPM (16mJ/cm2 Dose) 9 GPM (30mJ/cm2 Dose) 7 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	240 V
Shipping Dimensions
Shipping Length	21 in.
Shipping Width	7 in.
Shipping Height	7 in.
Product Weight & Dimensions
Product Height	7 in.
Product Length	21 in.
Product Width	7 in.
Product Weight (lbs)	7.791
