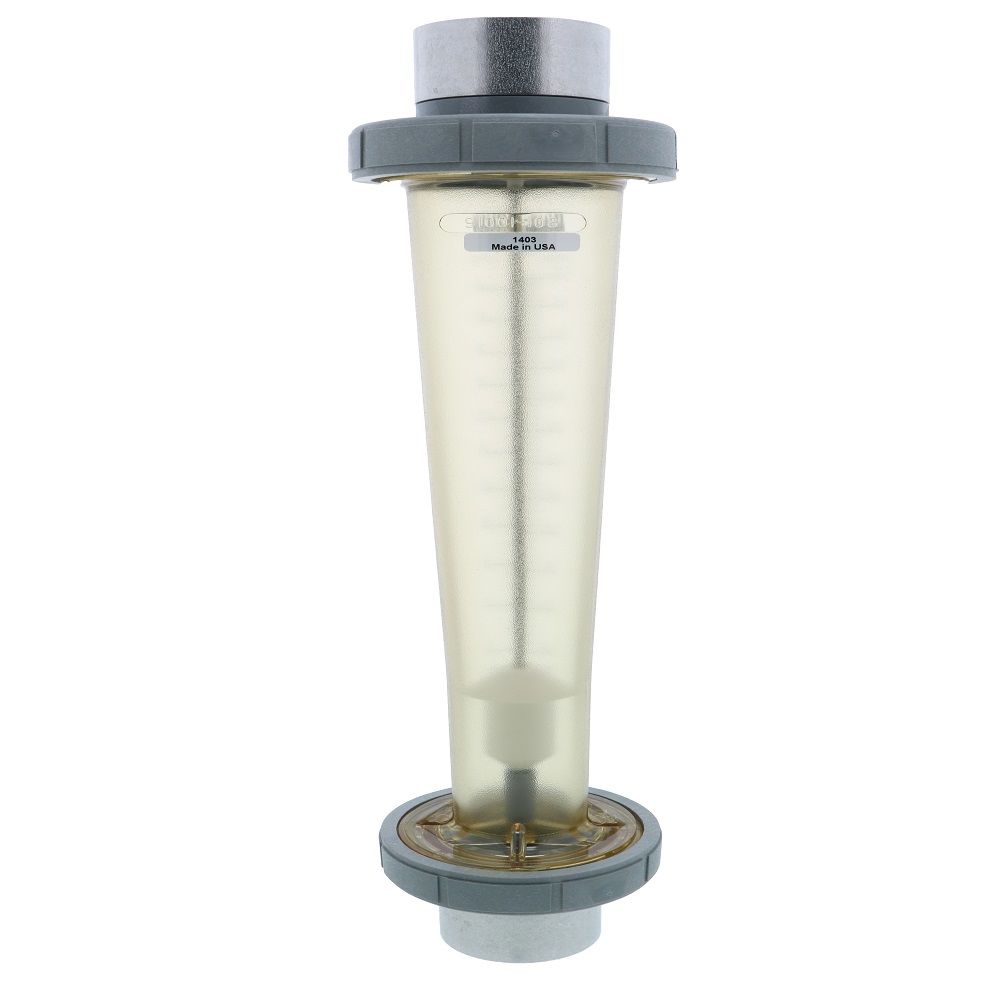

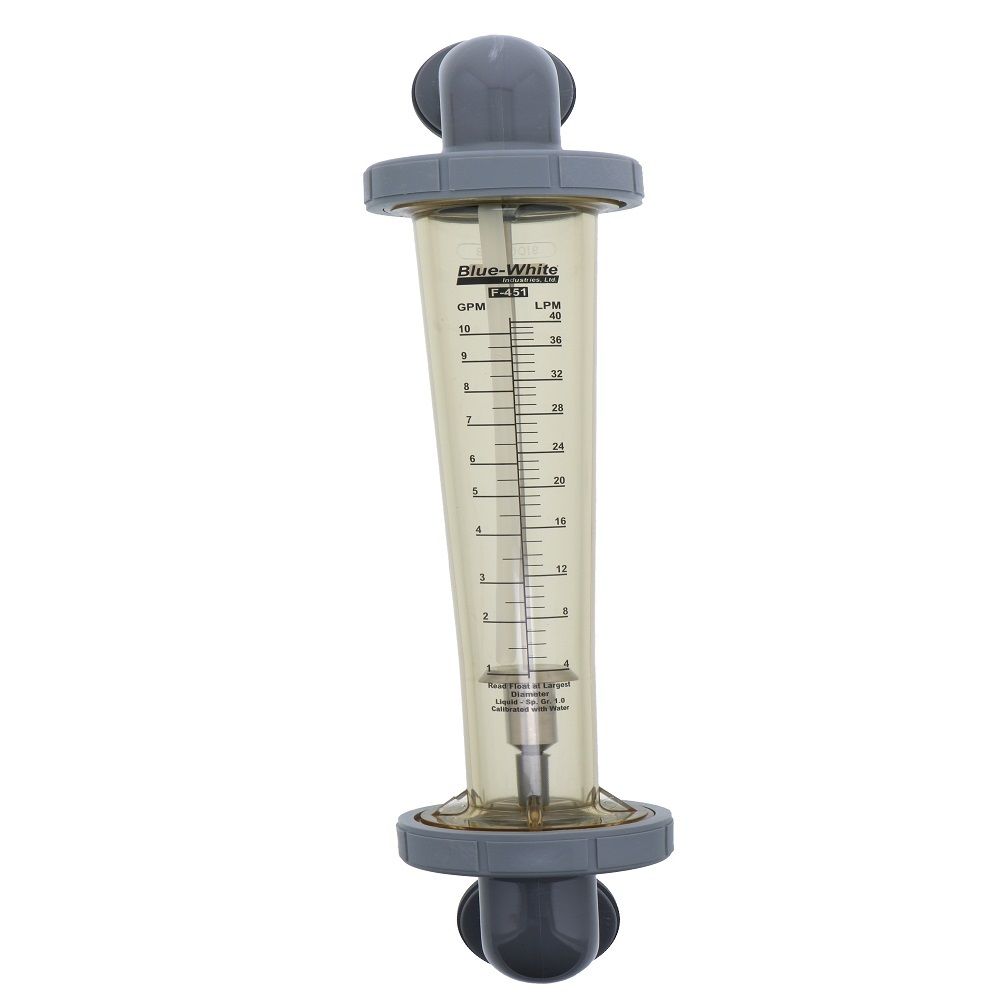

Blue White F-451 Rotameter

Features:

• Injection molded, chemical resistant Polysulfone
• Quick Loc (1/2 union) adapters
• Available in configuration for in-line & panel mount installation
• Dual scale and single scale available
• Polycarbonate shield available

Neo-Pure Compatibles For Blue White

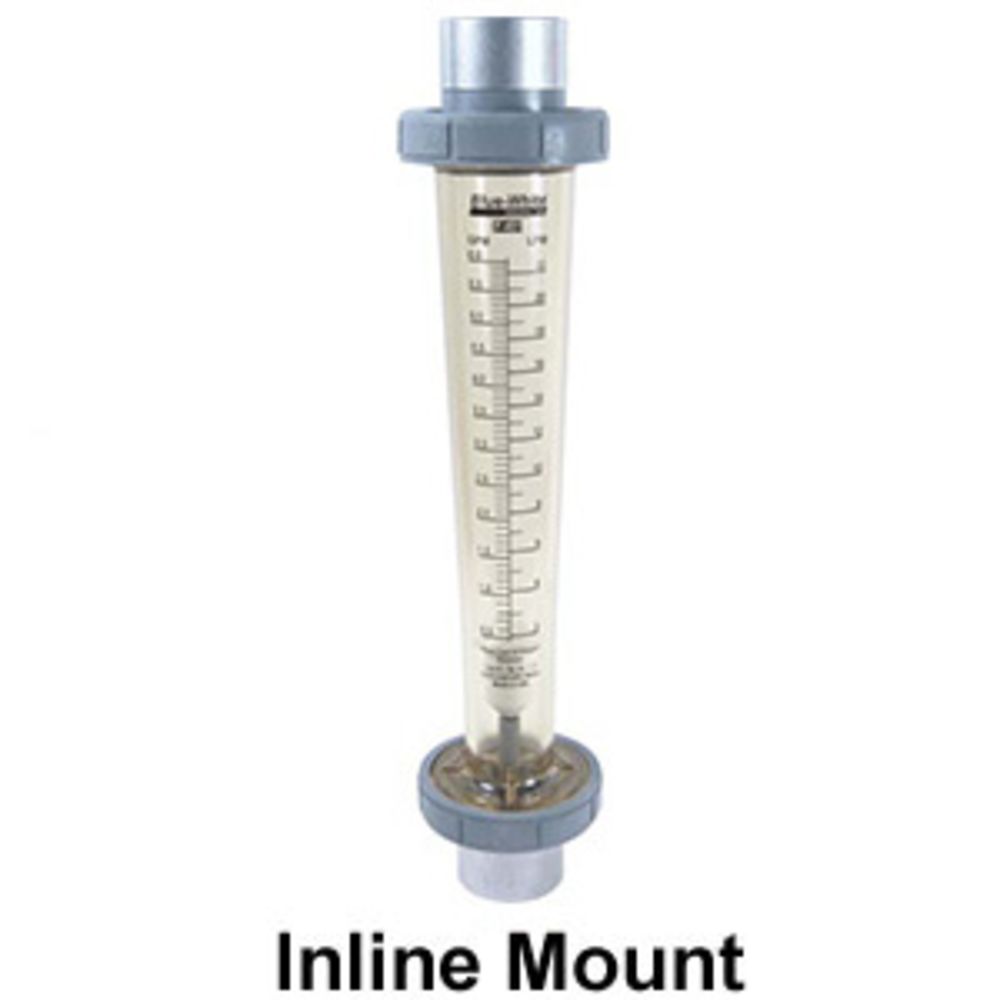

Inline Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.1-1.0 GPM	1/2" FPT	F-40375LN-8	FMS1-011-08
0.2-2.0 GPM	1/2" FPT	F-40376LN-8	FMS1-022-08
0.5-5.0 GPM	1/2" FPT	F-40500LN-8	FMS1-055-08
2.0-20 GPM	3/4" FPT	F-41000LN-12	FMS1-220-16
2.0-20 GPM	1" FPT	F-41000LN-16	FMS1-220-16
2.0-20 GPM	1" FPT	F-451002LHN	FMS1-220-16
3.0-30 GPM	1" FPT	F-451003LHN	FMS1-530-16

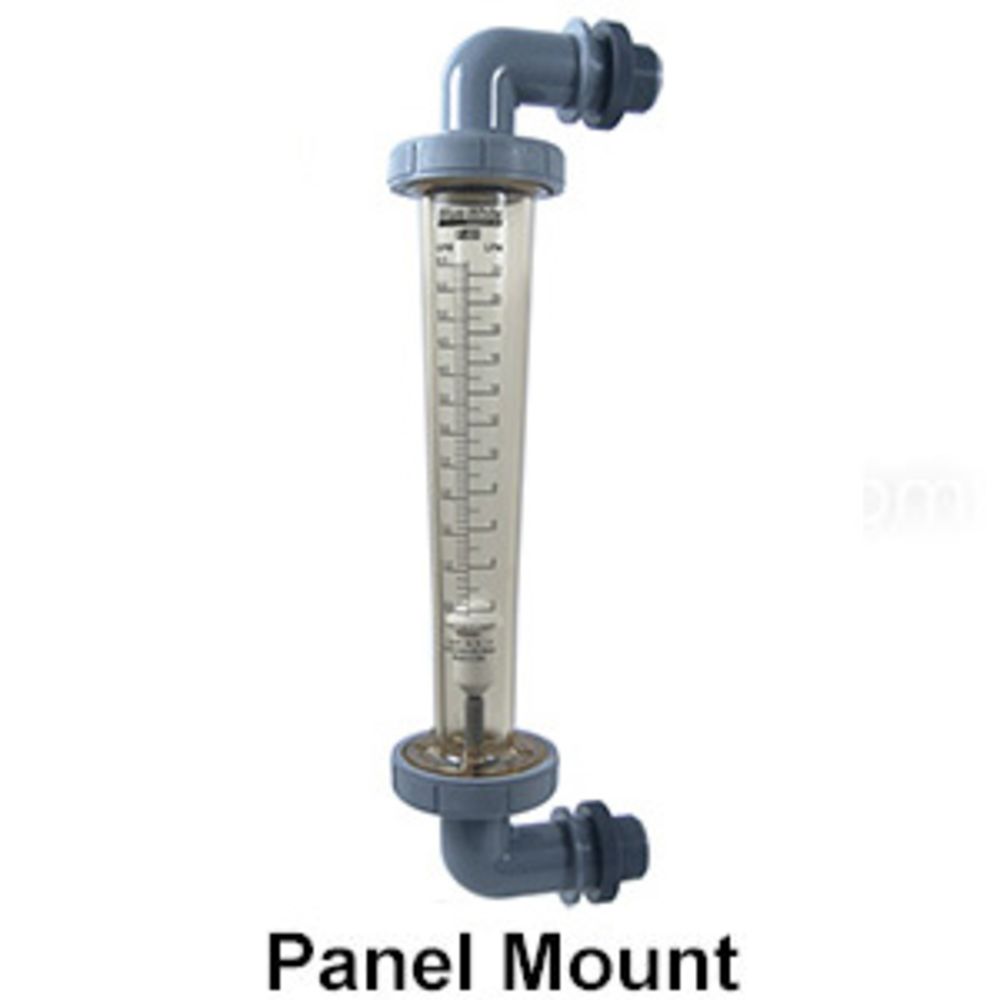

Panel Mounted Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.2-20 GPM	1" MPT	F-55200L*	FMP0-216-16*
0.2-2.0 GPM	3/8" MPT	F-55376L	FMP0-022-06
0.5-5.0 GPM	1/2" MPT	F-55500L	FMP0-055-08
0.1-10 GPM	3/4" MPT	F-55750L	FMP0-210-12



Adjustable Panel Mounted Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.2-20 GPM	1" MPT	F-55200LA**	FMP1-216-16**
0.1-1.0 GPM	3/8" MPT	F-55375LA***	FMP1-011-04***
0.2-2.0 GPM	3/8" MPT	F-55376LA	FMP1-022-06
0.5-5.0 GPM	1/2" MPT	F-55500LA	FMP1-055-08
0.1-10 GPM	3/4" MPT	F-55750LA	FMP1-210-12



Please note: While all Neo-Pure listed are direct replacements for Blue White, the following panel mounted flowmeters differ in mounting spread.

Blue White:
F-55200L* - 8 inch
F-55200LA** - 8 inch
F-55375LA*** - 6.5 inch

Neo-Pure:
FMP0-216-16* - 6.5 inch
FMP1-216-16** - 6.5 inch
FMP1-011-04*** - 5 inch

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Accuracy	±3 %
Body Material	Polysulfone
Max Pressure (Psi)	150
Max Temp (°F)	212
O-Rings	Viton
Flow Rate	.5-40 GPM
Port Size	1" FNPT 1" MNPT 1-1/2" MNPT 1-1/2" FNPT
Shipping Dimensions
Shipping Length	22 in.
Shipping Width	10 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Weight (lbs)	5.65
