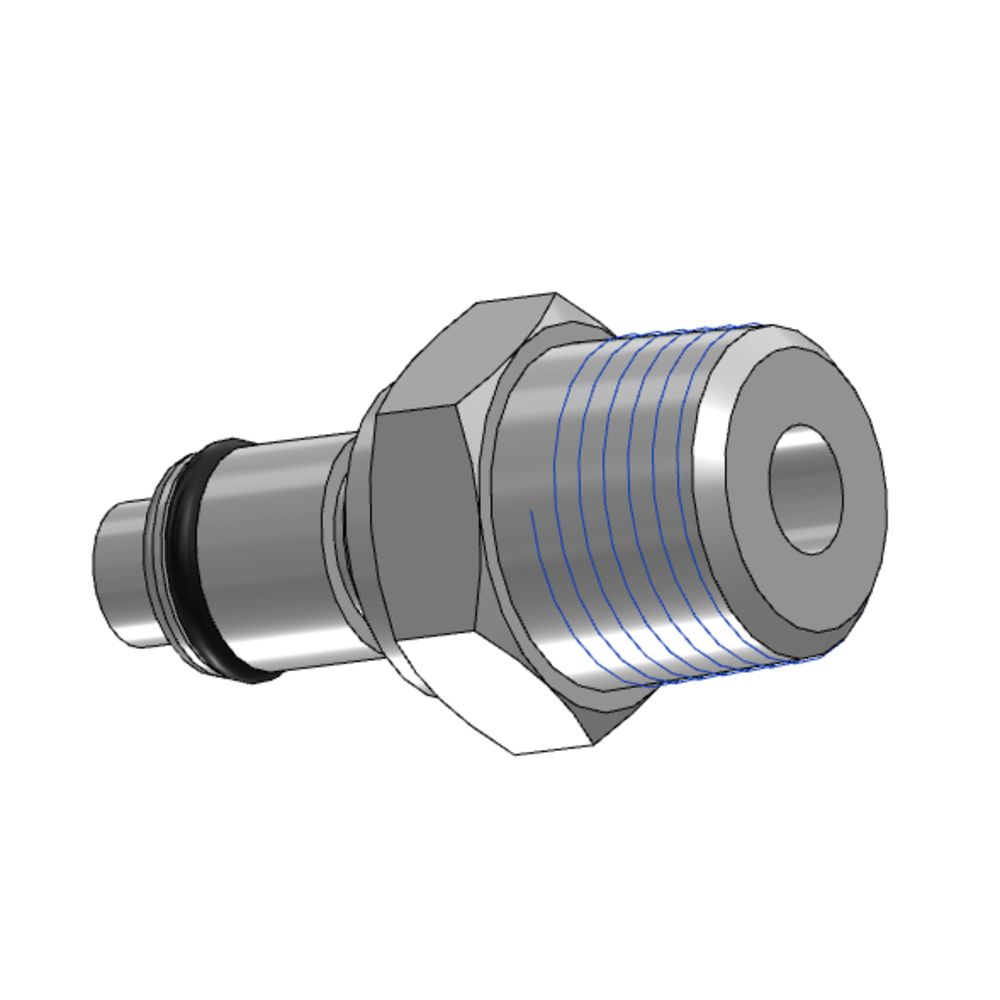

LCD24006VBR Valved Male Thread Coupling Insert 3/8 NPT (Viton) O-rings

Colder’s LC Series brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:

Material: Brass
Pressure Range: Vacuum to 250 psi, 17.3 bar
Mounting Option: 3/8" NPT Thread
Valve Option: Valved
Finish: Chrome
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
NSF Listed Version (part # 72300) Available Upon Request

California residents Prop 65 Warning

warning symbol

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" MPT
Max Pressure (Psi)	250
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Seal Material	Buna-N
Series	LC
Shape	Straight
Size	3/8"
Valve Type	Valved
Color / Finish	Brass
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling Insert
