Neo-Pure BCM22 30" Multi-Cartridge Stainless Steel Housing

The Neo-Pure BCM22 Multi-Cartridge Stainless Steel Housing utilizes twenty-two 30" cartridges providing top-of-the-line filtration for up to 462 gallons per minute. The V-band clamp and swing bolt closure also allows quick change-outs and secure sealing.Neo-Pure BMC Multi Cartridge Housing Replacement Filters

Features:

• Accepts twenty-two 30" cartridges for optimal filtration flow
• Heavy-duty 304L stainless steel construction for maximum durability

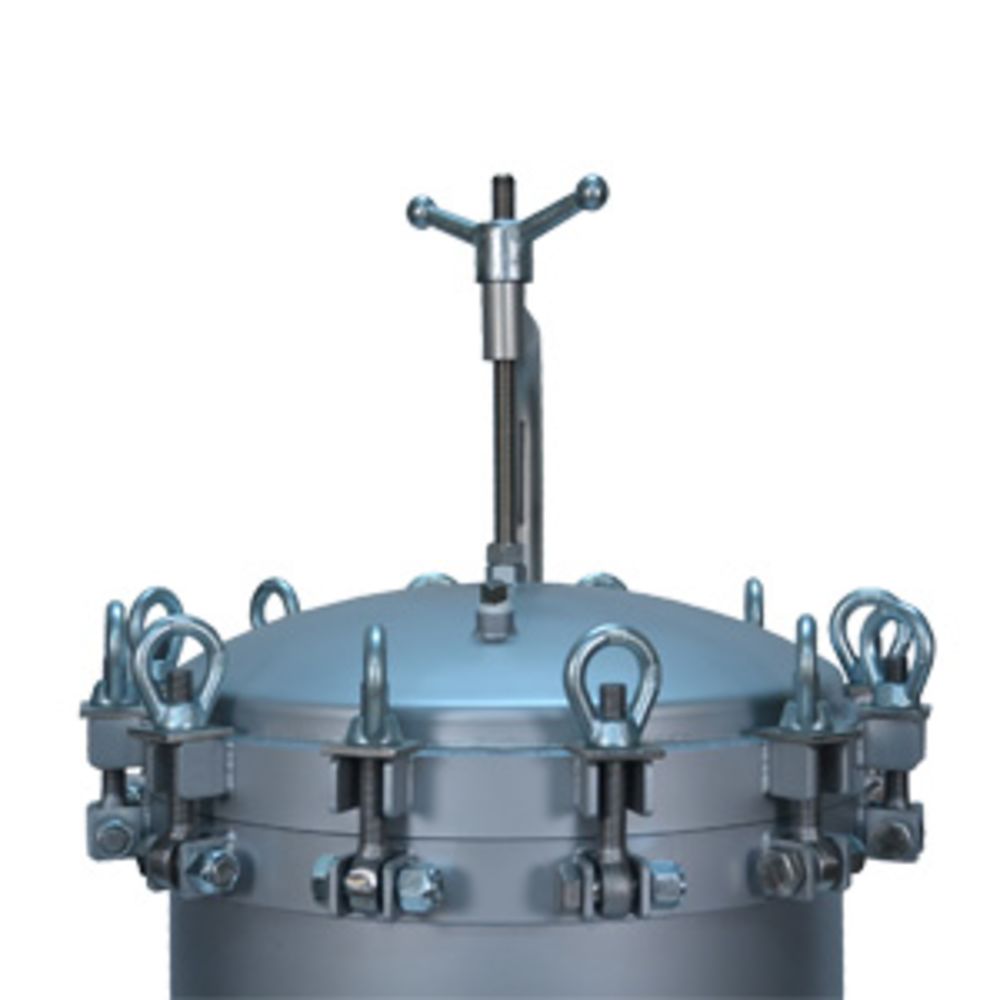

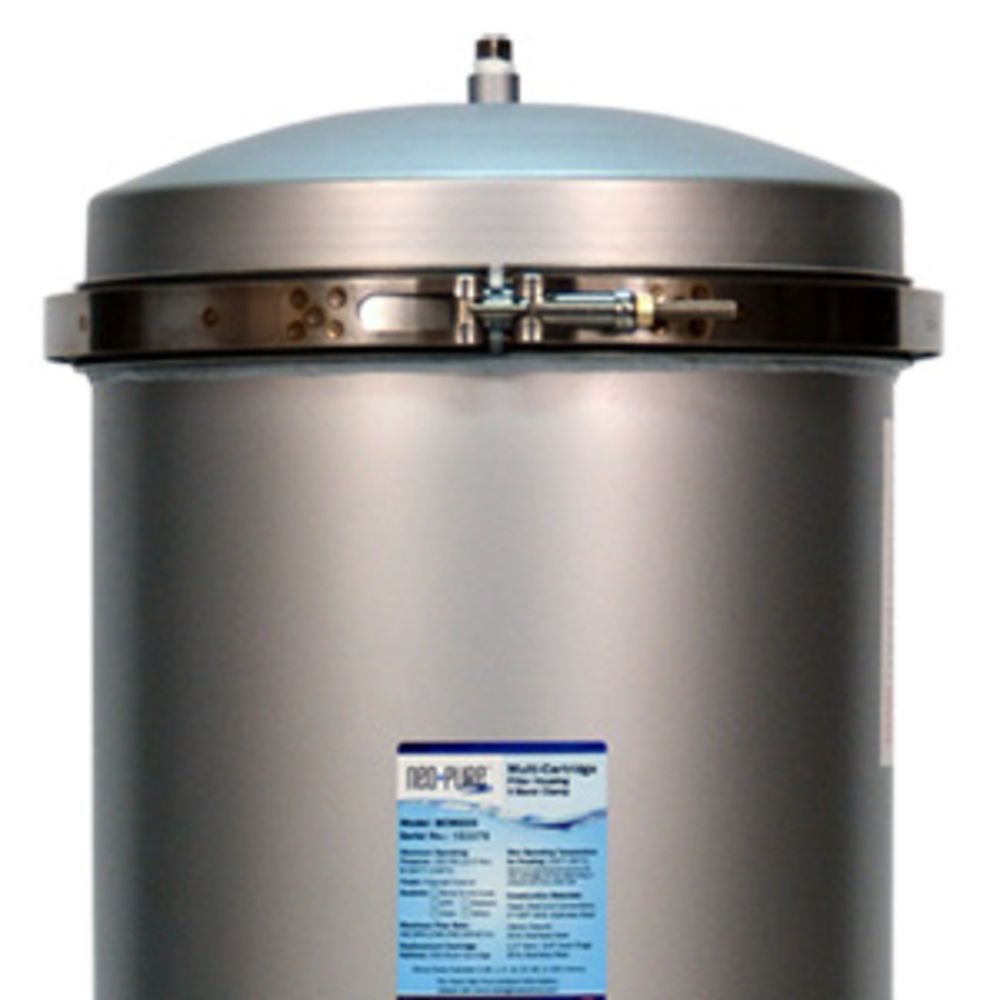

• V-band clamp or swing bolt closure for quick, easy change-outs and secure sealing
• Protective poly-coat finish
• Flow rates up to 462 gallons per minute

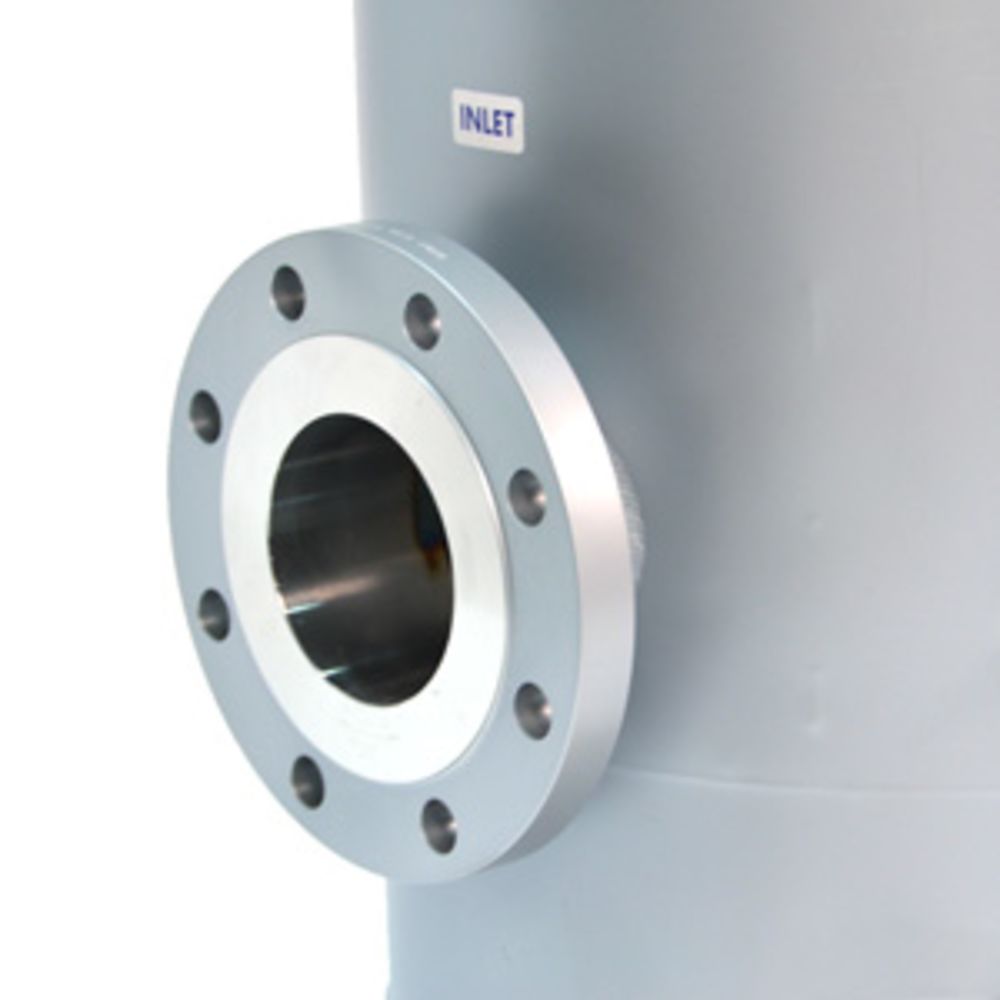

• Inlet/Outlet: 4" RF Flange
• All stainless steel internals

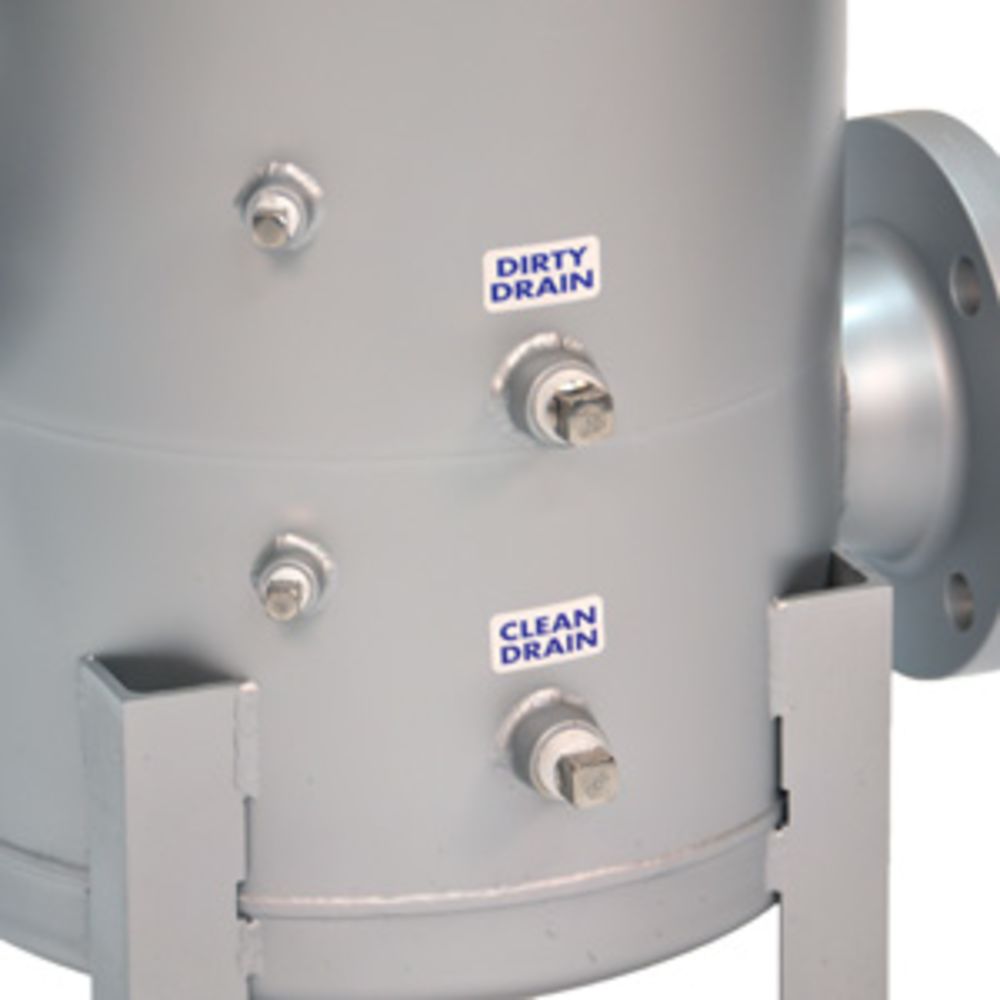

• Standard version comes with gauge ports and mounting legs

Applications:

• Chemicals
• Cooling Tower Filtration
• Desalination Prefiltration
• Electronics
• Food and Beverage
• Oil and Gas
• Paints, Inks, and Coatings
• Paper and Pulp
• Power
• Water

Notes:
* The SBM22X3-316L-3FL features a 3" flange

** Standard option BCM22 series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.


Compatible with:

Harmsco® Compatible

HBC-22-3

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	304L Stainless Steel
Closure Type	V-Band Clamp Swing Bolts
Drain Size	3/4" FPT
Inlet Connection	3" Flange 4" Flange
Material Of Construction	304 Stainless Steel 316 Stainless Steel
Max Flow Rate	462 GPM
Max Pressure (Psi)	150
Max Temp (°F)	225
Number Of Cartridges	22
Outlet Connection	3" Flange 4" Flange
Size	3" 4"
Connection Type	Flange
Origin	U.S.A.
Product Weight & Dimensions
Product Height	50-3/16"
Product Length	30"
Product Weight (lbs)	244
