Clark CLXC-C1 Series Single Jet Totalizing Water Meter 3/4 1 Pulse Per 10 Liters

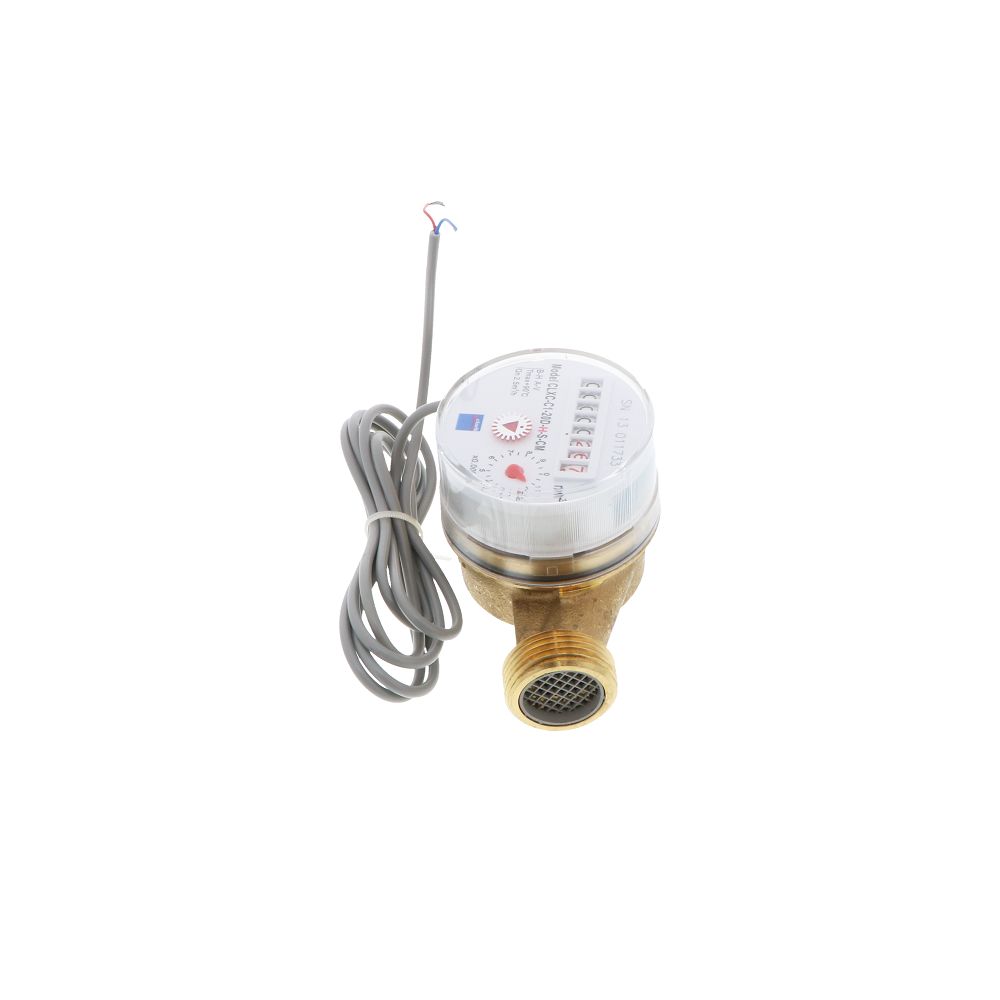

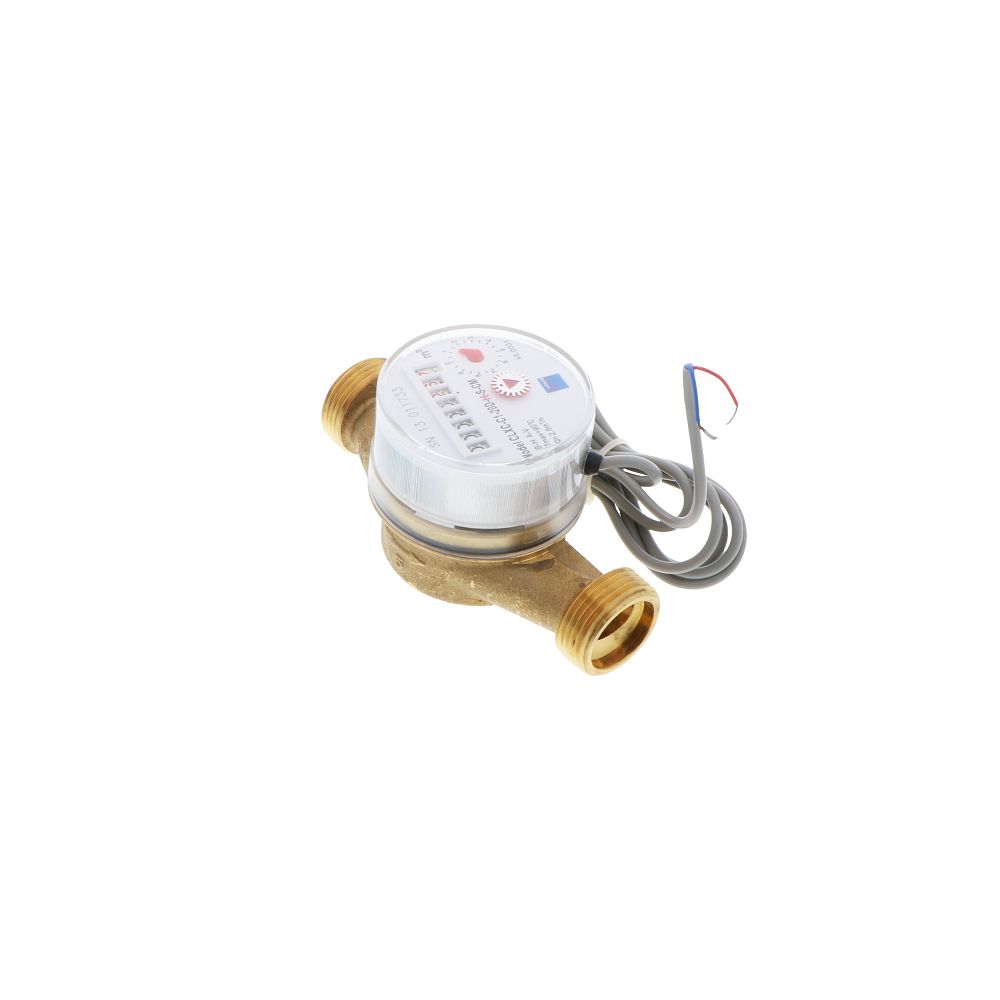

The CLXC-C1-20D-C-S-CM Cold Water Meter is a single-jet dry type totalizing water meter with a pulse output of 1 pulse per 10 Liters. These accurate and reliable meters are an ideal choice for a range of sub-metering applications for apartment and commercial buildings, as well as marinas, RV and camping parks. It is highly recommended to install it at a horizontal orientation. Each meter is supplied with a meter coupling (tailpiece) set, which includes 2 couplings and 2 gaskets. This meter offers a quality and reliable water meter at an affordable price compared to alternative water meters on the market. In addition to be an economical choice, having a water meter installed can also save you money on your water bill by allowing you to be charged only for the water you use, and making you more aware of your water usage.

Features and Specifications:

• Cold Water Meter
• Lead free
• Accurate & reliable
• Produced in a ISO9001 certified facility
• Meter Type: Dry, magnetic coupling between rotor and register movement
• Main Casing Material: Brass
• Installation: Horizontal recommended
• Casing Spud Connections: External Straight threads
• Included Accessories: Meter coupling tailpiece set (2 couplings & 2 gaskets)
• Measuring Principal: Single jet
• Meter Size: 3/4"
• Max Media Temperature: 122°F
• Max Operating Pressure: 150 PSI
• Max Pressure Drop: 15 PSI
• Proof Pressure: 300 PSI
• Max Flow: 22 GPM (5 m³/hr)
• Nom Flow: 11 GPM (2.5 m³/hr)
• Min Flow: 0.22 GPM (0.05 m³/hr)
• Min Reading: 0.01 m³
• Max Reading: 99999.99 m³
• Pulse Output: 1 pulse per 10 liters (0.01 m³)

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Bottom Style	Polycarbonate
Housing Material	Brass
Inlet Connection	3/4" MPT
Max Flow Rate	22 GPM
Max Pressure Drop	15 PSI Max
Max Pressure (Psi)	150
Max Temp (°F)	122
Outlet Connection	3/4" MPT
Size	3/4"
Connection Type	Male (MPT)
Flow Rate	11 GPM
Top Style	Polycarbonate
Type	Series Single Jet
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.35
