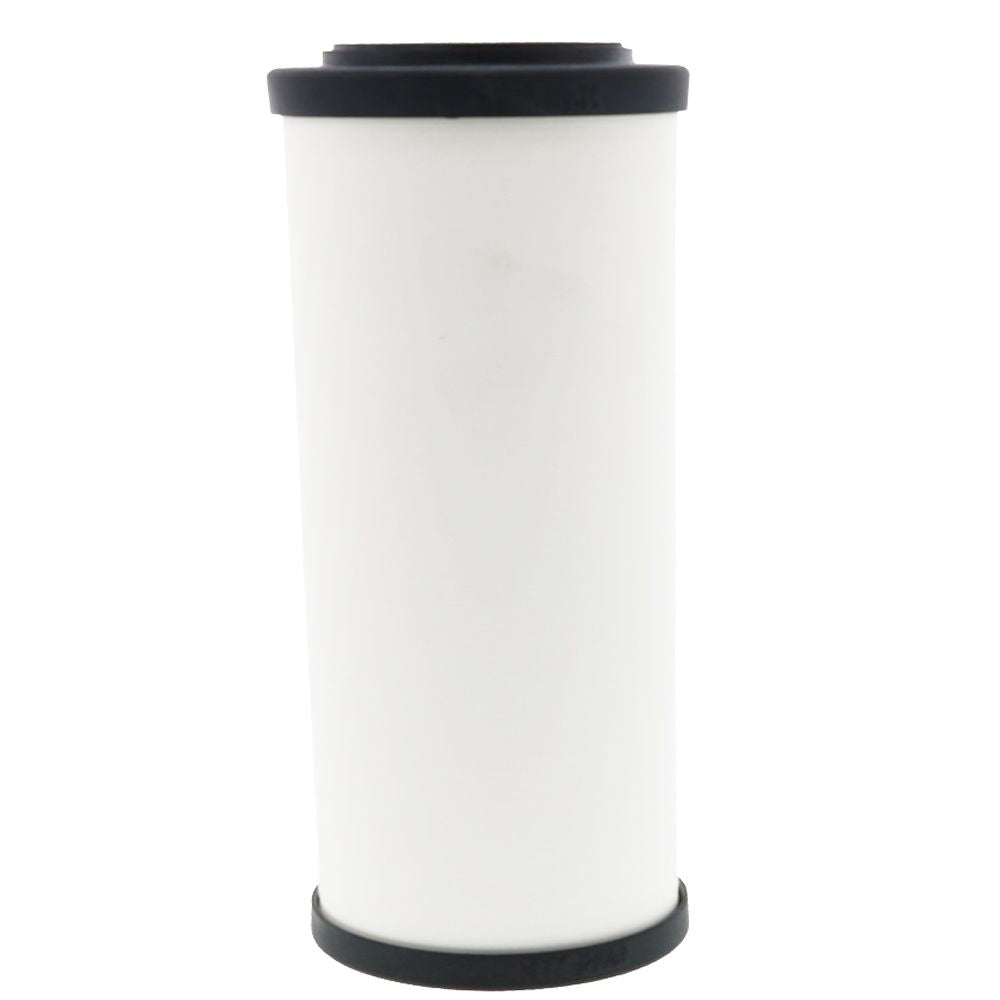

Doulton W9223022 Imperial Ultracarb OBE Ceramic Filter

The Doulton W9223022 “Imperial" elements are designed to fit in most “industry standard" 10 inch housings offering a greater flow rate over the “Slimline" filter elements. All Imperial filters measure 2-3/4" in diameter and 9-3/4" in length. All ceramic elements are based upon the Sterasyl outer shell with various types of core materials for different applications.

The 10" Imperial Ultracarb ceramic filter is manufactured with the highly consistent and controlled pore structure necessary to remove a wide range of water borne contaminants over the life of the ceramic cartridge.
In addition to find particulate matter, bacteria, cysts, and turbidity are removed to a high level of efficiency.

The Doulton Imperial Ultracarb ceramic filter incorporates silver locked within the ceramic structure inhibits the growth of bacteria and gives each cartridge enhanced bacteriostatic and self-sterilizing properties.

Doulton Imperial Ultracarb 10" Ceramic Filter Features:

• The Doulton W9223022 filter is ideal for RO guard and post filtration
• Complimentary to UV systems
• Filtration efficiency of >99.99% at 0.9 micron
• Filtration efficiency of >99.99% at 0.5 to 0.8 micron
• Highly efficient bacteriological filtration
• Tested with live cryptosporidium to a removal efficiency > 99.999%

NOTE: Fits most standard 10" housings, excluding Doulton housings. Replaces p/n W9223013, W9223006


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Capacity	2000 Gallons
Max Pressure (Psi)	125
Max Temp (°F)	100
Micron Rating (Absolute)	0.9 µm
Micron Rating (Nominal)	0.5-0.8 µm
Min Pressure (Psi)	10
Min Temp (°F)	40
Cartridge Style	Drop-in
Change Frequency	6 Months
Contaminants Reduced	Cysts Chlorine/Taste/Odor Sediment/Dirt/Rust Bacteria
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE)
Filter Type	OBE Cartridge
Flow Rate	.9 GPM
Media Type	Carbon Block
Micron Rating	0.5 µm, 0.9 µm ABS
Origin	England
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Length	9-3/4"
Product Weight (lbs)	2
