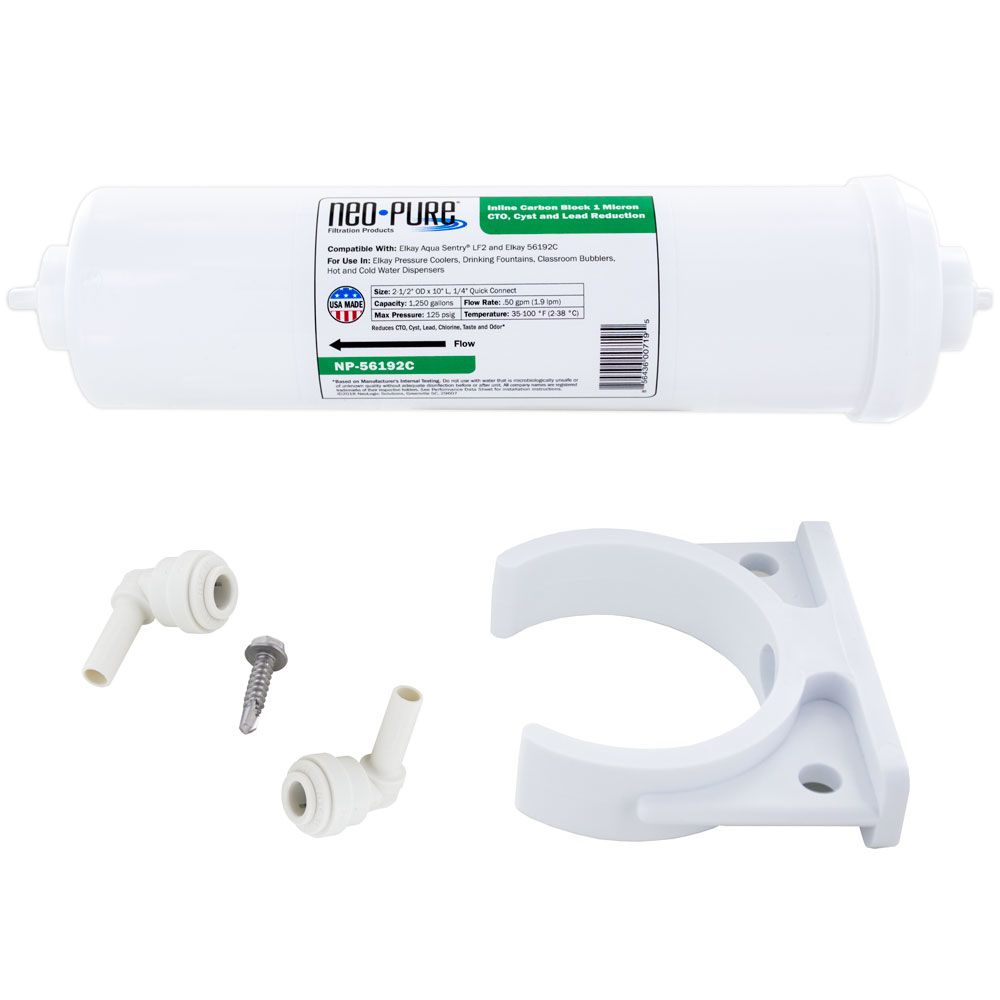

Neo-Pure 56192C Aqua Sentry® LF2 Compatible Filter (1250 gal)

The Neo-Pure Aqua Sentry® LF2 Compatible Filter (1250 gal) is a perfect compatible to the Elkay 56192C Aqua Sentry® LF2 Replacement Filter. This filter is designed to fit into Elkay water coolers, drinking fountains, classroom bubblers and instant hot and cold water dispensers. This filter is uniquely designed to effectively remove lead and dangerous cysts like giardia and cryptosporidium from your water. The Neo-Pure NP-LF2 also removes bad taste, odor, and chlorine. It features a wider diameter, which creates a larger surface area for the activated carbon media to fully treat the water. The Neo-Pure NP-LF2 dispenser filter will continue to assist in removing harmful contaminants from the water supply at your residents, school, or business.

Application:

• Made in the USA All Neo-Pure NP-LF2 Filters are made in the USA to ensure material safety, and reduction claims.
• Quality Assurance The NP-LF2 is warranted to be free from defects in material and workmanship for a period of one year from date of installation. Warranty is limited to repair or replacement of defective component.

Installation Instructions:

1. Install in cold water applications only
2. Shut off water supply
3. Note the flow direction on the filter
4. For Quick Connect® fittings push scratch free tube end into the fitting until it feels tight. Pull back on the tubing to confirm that is it tight.bottom.
5. After installing new filter, open water supply valve and check for leaks.
6. Reconnect electrical power supply.
7. Flush system sufficiently (approximately 3 minutes) to effectively remove small residue of carbon fines

Features & Specifications:

• Size: 2-1/2" OD x 10" L
• Water Inlet Connection: 1/4" QC OD tube
• Water Outlet Connection: 1/4" QC OD tube
• Filter Capacity: 1250 gallons/annually
• Maximum Flow Rate: 0.50 GPM
• Water Temperature: 35 - 100°F
• Maximum Line Pressure: 125 PSI
• Change Frequency: 12 months
• Filter Media: Activated Carbon
• One year limited warranty
• Tested according to NSF Standard 42 for aesthetic effects and Standard 53 for health effects

NOTE:A water shutoff valve should be installed on the incoming water line to aid in future servicing of filter.

Compatible with:

Elkay®	56192C
Halsey Taylor	HWF142
Neo-Pure	NP-LF2

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Capacity	1250 Gallons
Max Pressure (Psi)	125
Max Temp (°F)	100
Micron Rating (Nominal)	1 µm
Min Temp (°F)	35
Cartridge Style	Inline
Change Frequency	6-12 Months
Connection Type	1/4" Quick Connect
Contaminants Reduced	Chlorine/Taste/Odor Lead Cysts
Diameter	2-1/2"
Flow Rate	0.50 GPM
Media Type	Coconut Shell GAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	2 in.
Shipping Width	2 in.
Shipping Height	11.5 in.
Product Weight & Dimensions
Product Length	10"
Product Weight (lbs)	1
