SHURflo 8025-213-236 Delivery Pump 1.4 gpm 60 psi 115V

The SHURflo 8025-213-236 Delivery Pump is ideal in applications that require high pressure and a flow rate of 1.4 GPM and low amp draw. The pump can be mounted in any position, is compact and is designed for long trouble-free life. Spherically shaped valves and diaphragms are available in a variety of materials to meet a wide range of applications.

Additional Specifications:

• 1.4 GPM flow rate
• Demand Switch
• Can run dry without damage
• Self priming up to 9 vertical feet
• 3/8" NPT female ports
• Santoprene® diaphragm
• Built-in check valve
• NSF, UL and CSA listed

Applications:

• Water delivery
• Soil extraction

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	0.31-0.57 Amps @ 0-60 PSI
Diaphragm Materials	Santoprene
Inlet Connection	3/8" FPT
Liquid Temperature	Max 170 °F
Outlet Connection	3/8" FPT
Pump Max Flow Rate (Gpm)	1.4
Series	8000
Size	3/8"
Suction Lift	Self prime up to 9 ft
Voltage Type	AC

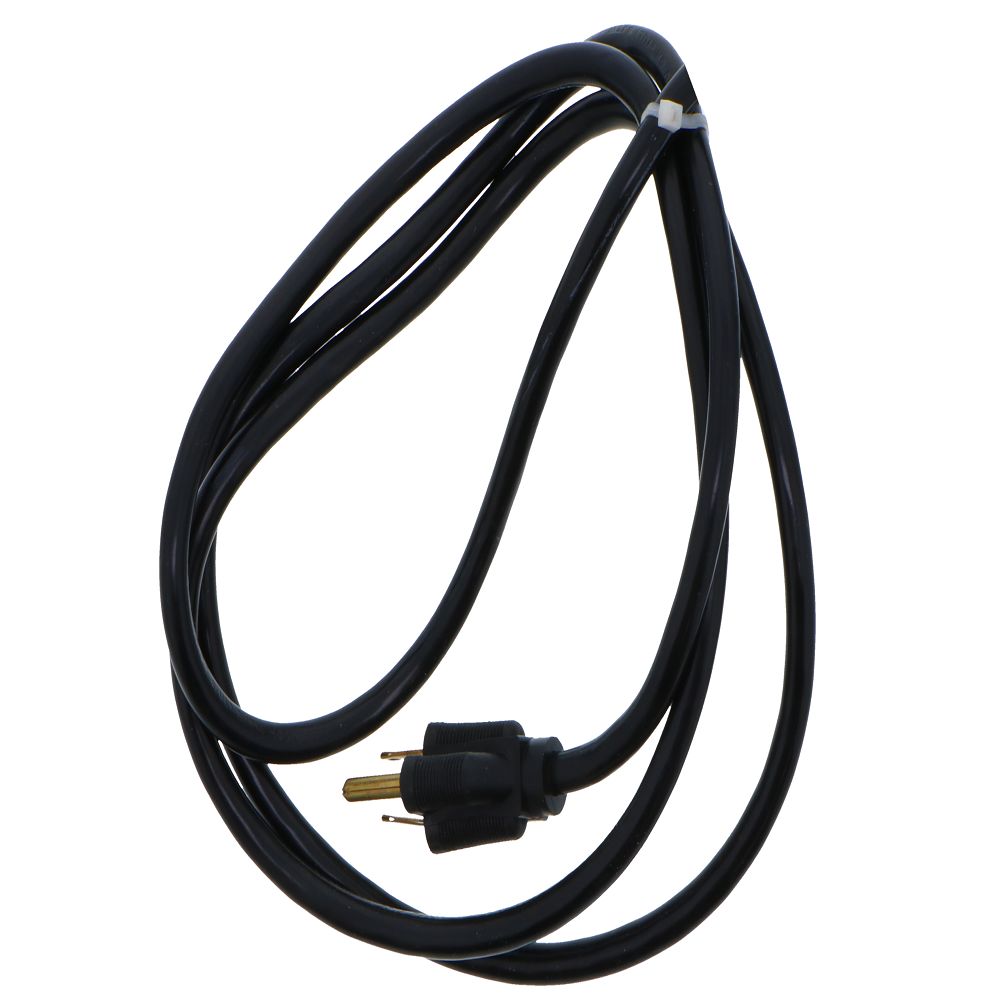

Wire Option	Wall Plug
Connection Type	Female (FPT)
Type	Diaphragm Pump
Voltage	115VAC
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	8
Product Width	4
Product Weight (lbs)	5
