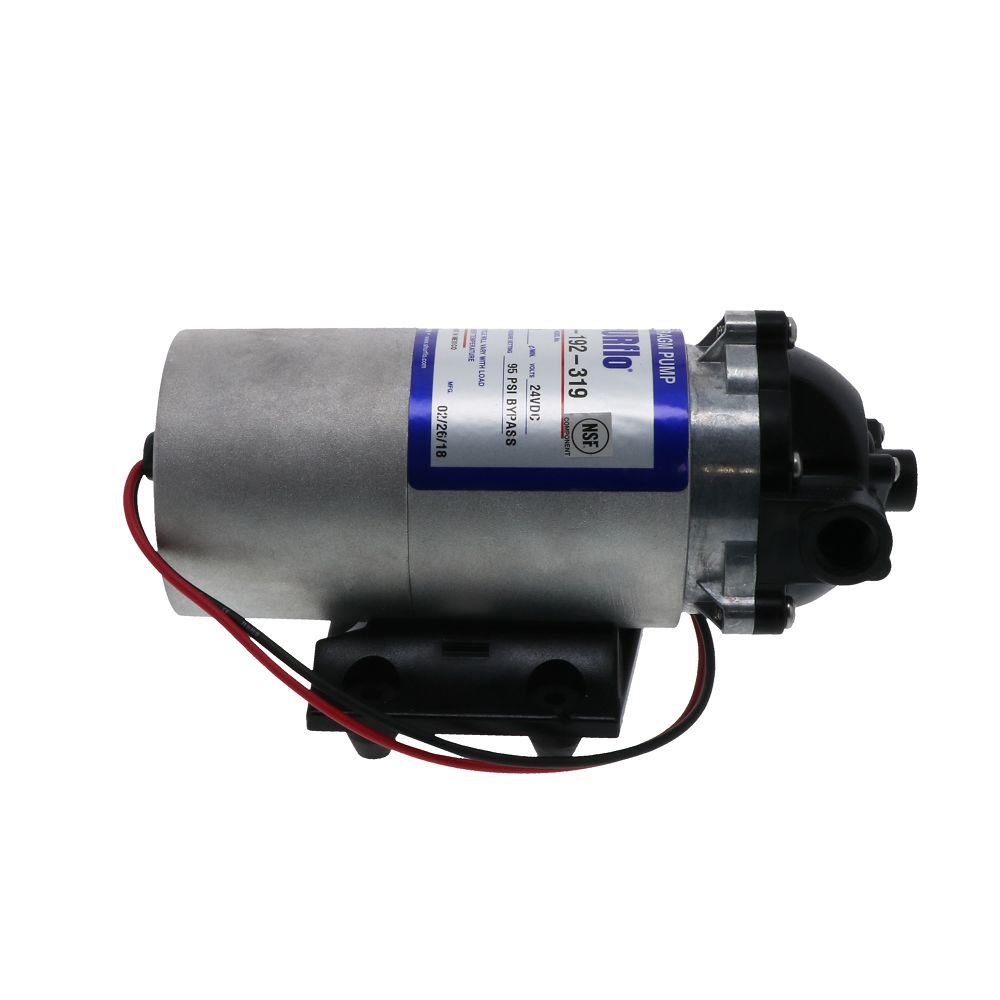

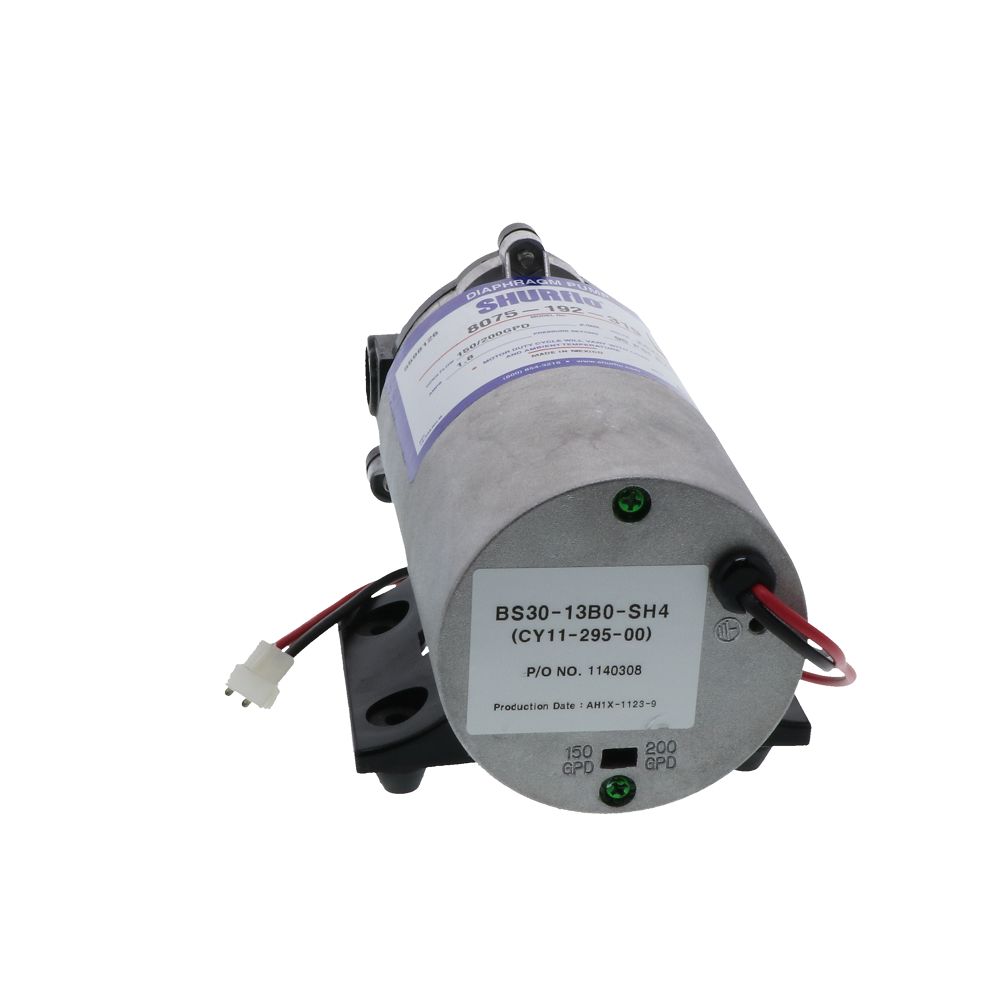

SHURflo 8075-192-319 Brushless DC RO Booster Pump 150-200 GPD 140 PSI 24VDC

The high performance brushless DC RO Booster Pump pushes the envelope in the market. The pump head proves reliability with high efficiency, a long life brushless DC motor, which makes this a versatile work horse. The motor is robustly built to handle the demanding requirements of commercial RO systems. With its unique two speed switch, one pump meets the performance requirements of 150 or 200 GPD with a quick flip of a switch. Brushless DC motors are typically 85-90% efficient, while standard brushgear motors are 75-80% efficient. This booster pump is designed for operation with a Tank Pressure Switch, which monitors the water pressure in the RO unit´s storage tank, and turns the pump on or off in response to the storage tank pressure. A Low Pressure Shut-Off Switch may also be installed, which will ensure the pump is shut off if the feed water is interrupted. Also, a Power Supply/Transformer is required for use with your booster pump.

Features:

• High flow rate supports 150-200+ GPD systems
• Quiet operation at any flow and pressure range
• Extended motor life with brushless technology
• Pressures up to 140 PSI
• Operates on 24V DC power
• NSF Listed

Applications:

• Power Supply/Transformer
• Tank Pressure Switch
• Low Pressure Shut-Off Switch

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	2.2-2.5 Amps
Inlet Connection	3/8" FPT
Outlet Connection	3/8" FPT
Series	8000
Size	3/8"
Voltage Type	DC
Wire Option	Bare Wire
Connection Type	Female (FPT)
Type	Diaphragm Pump
Voltage	24VDC
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	5
Product Length	8.5
Product Width	4.5
Product Weight (lbs)	5
