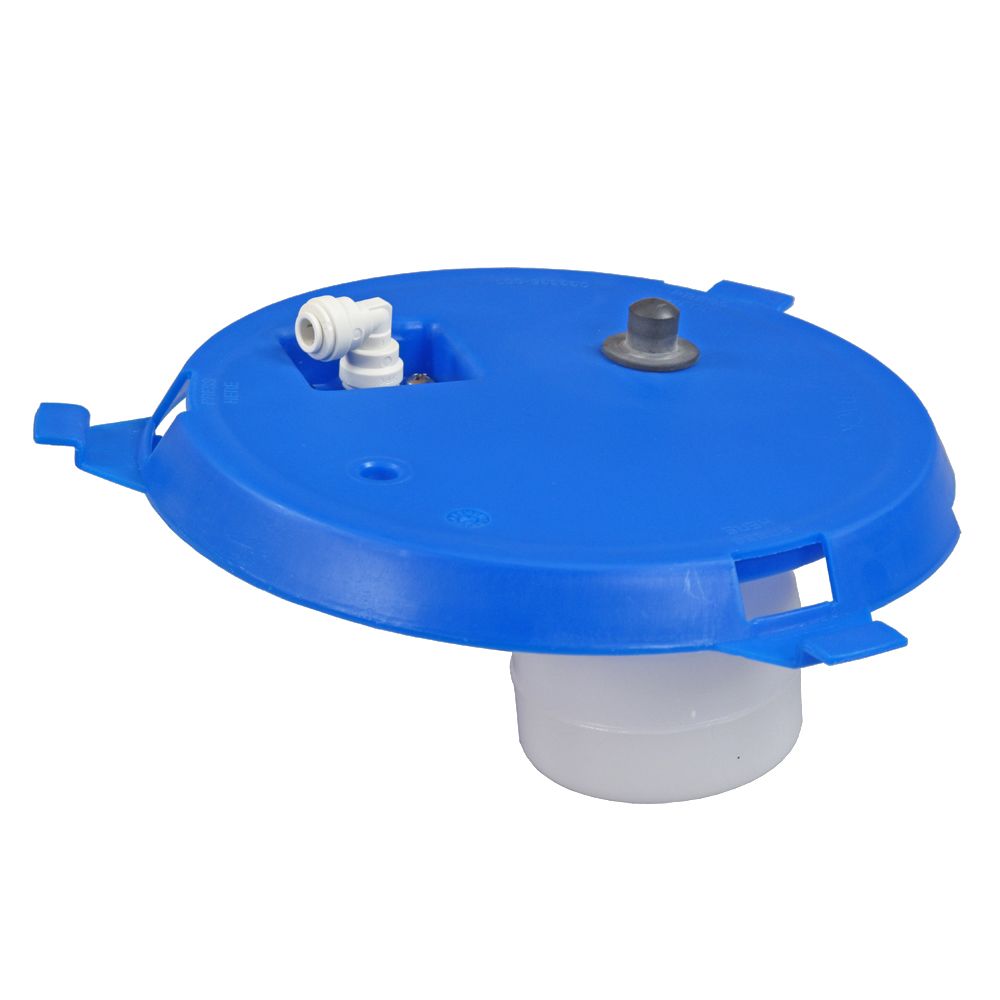

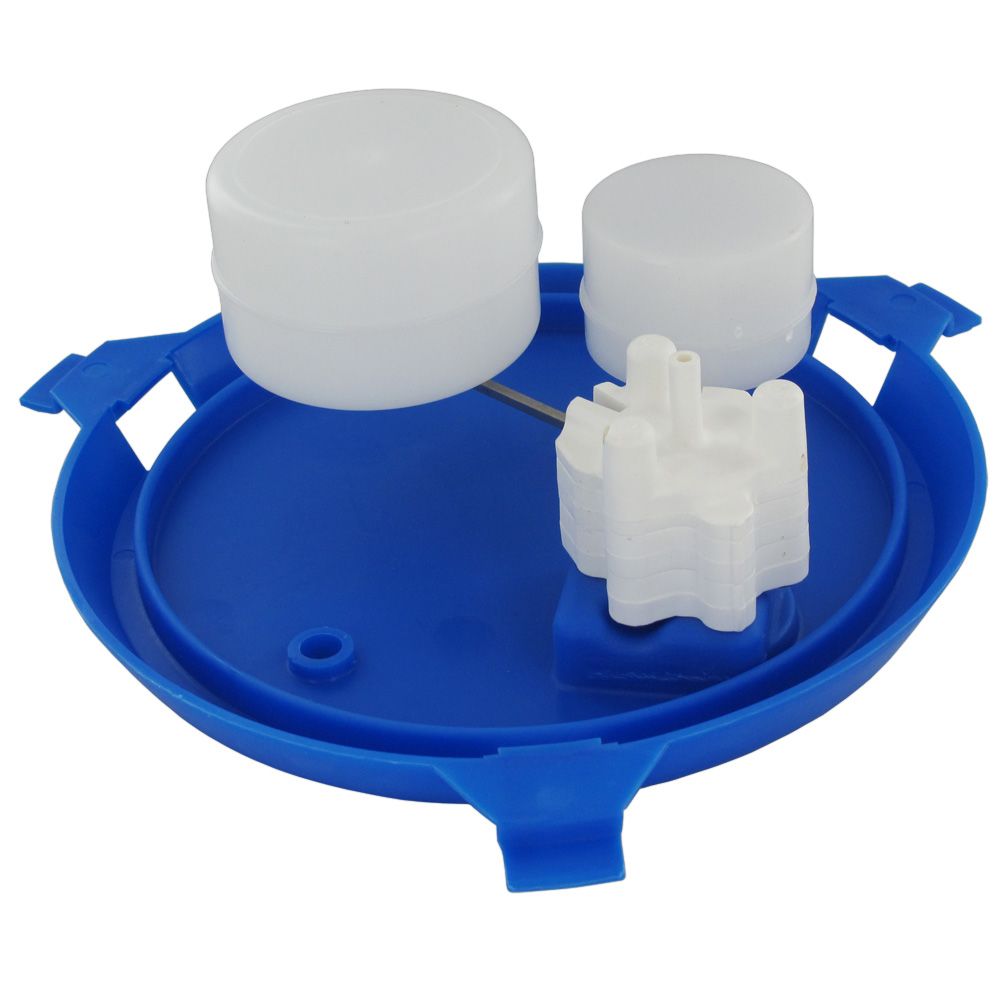

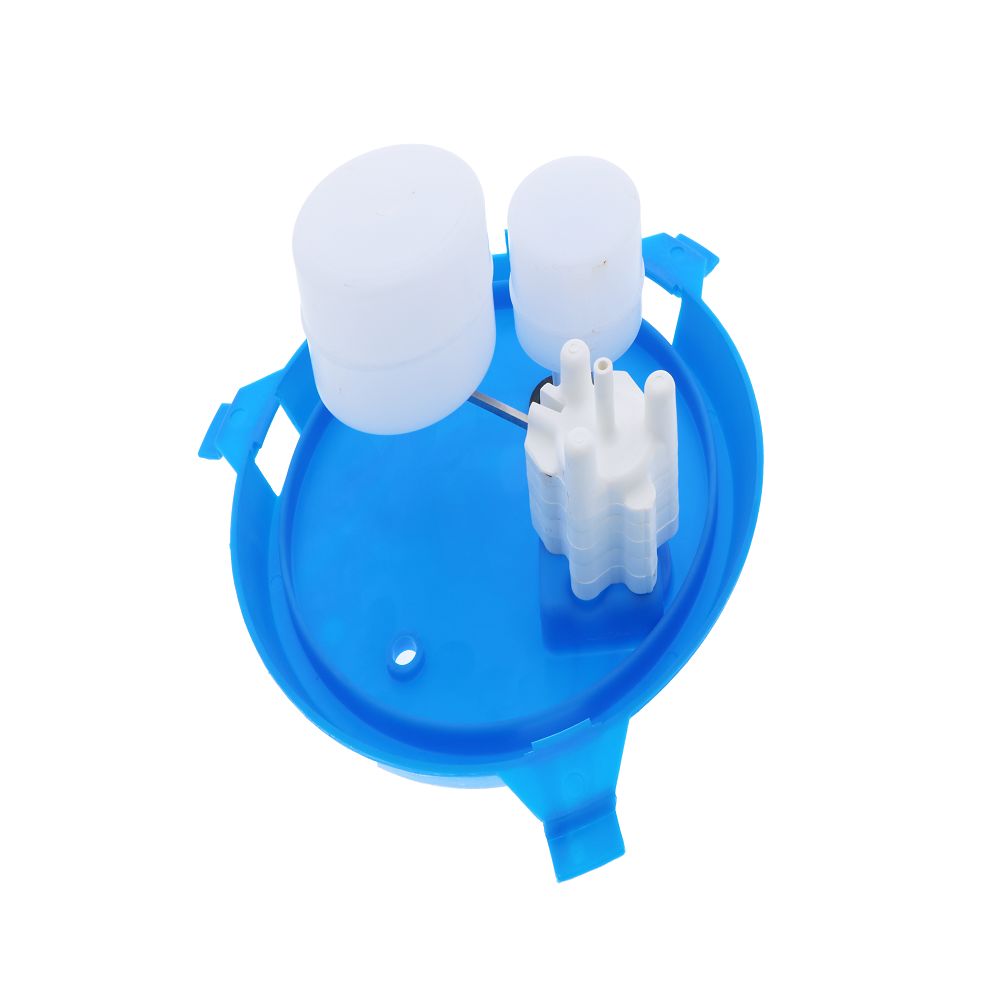

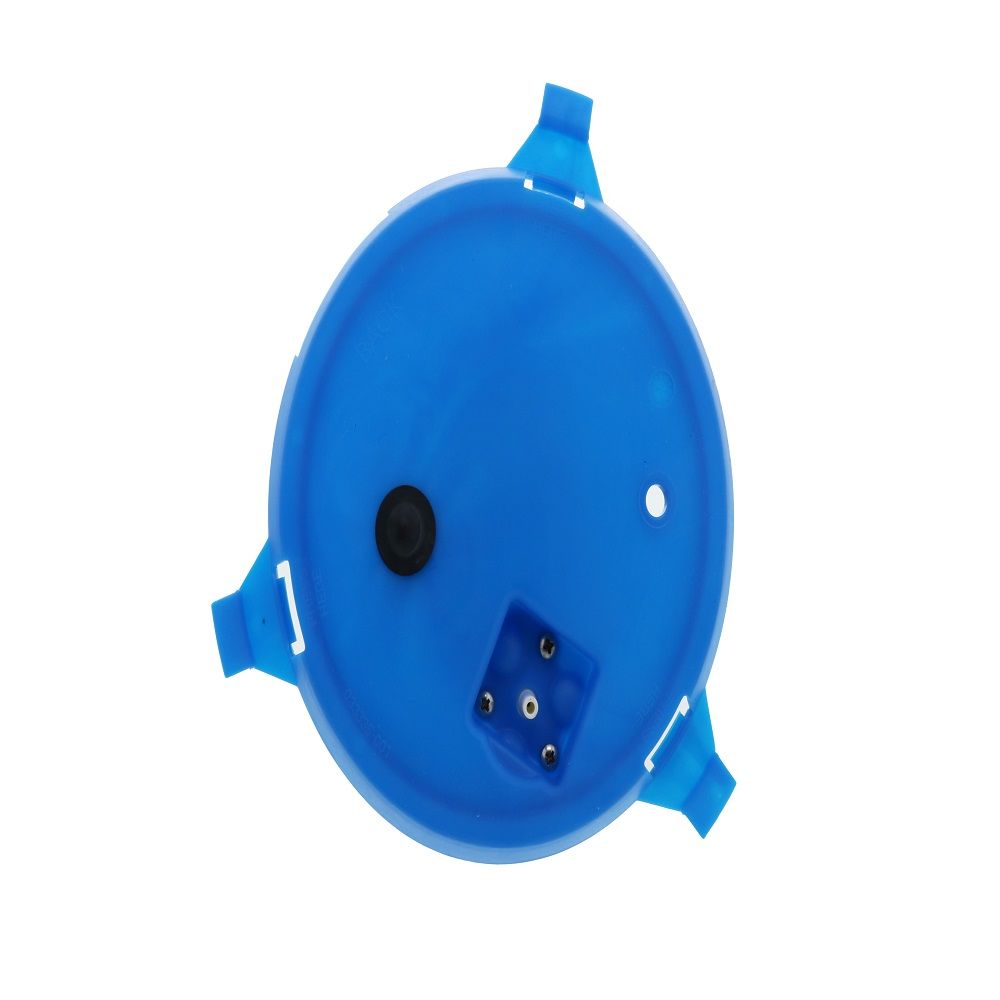

Oasis 033392-004 Mechanical Float Assembly Retrofit Kit

The Oasis 033392-004 Mechanical Float Assembly Retrofit Kit is the replacement float assembly for any Oasis cooler with a removable plastic reservoir. This kit replaces electronic solenoid-operated floats or failed mechanical floats. It can also be used to convert a bottled water cooler to operate as a point of use (POU) cooler, but does not include a new cover for the cooler.

Oasis 033392-004 Mechanical Float Retrofit Kit includes:

Compatible with the following Oasis water coolers:

• POU1RRK-D103
• POU1SRK-D103
• POU1RRHS-D204
• POU1SRHS-204
• POU1RRK
• POU1SRK
• POU1RRHS
• POU1SRHS
• Any Oasis cooler with a removable plastic reservoir

Part Number	Description
031335-002	Seal, Vent Waterguard
032324-002	Cap Assy, RR/SR Reservoir
033264-002	Strainer, In-Line
033275-004	Instructions, Solenoid R
029718-004	Packaging Group
033463-001	Carton, Mech Float Kit
033462-002	Pad, Cap Liner
033461-001	Pad, Mech Float Top
027270-034	Bag, Shipping
027270-010	Bag, Shipping
033396-004	Label, Kit ID
028481-101	Ftg, PP Union Elbow Wht

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Shipping Dimensions
Shipping Length	9.25 in.
Shipping Width	5.5 in.
Shipping Height	9.25 in.
Product Weight & Dimensions
Product Height	9.25 in.
Product Length	9.25 in.
Product Width	5.5 in.
Product Weight (lbs)	1.015625
