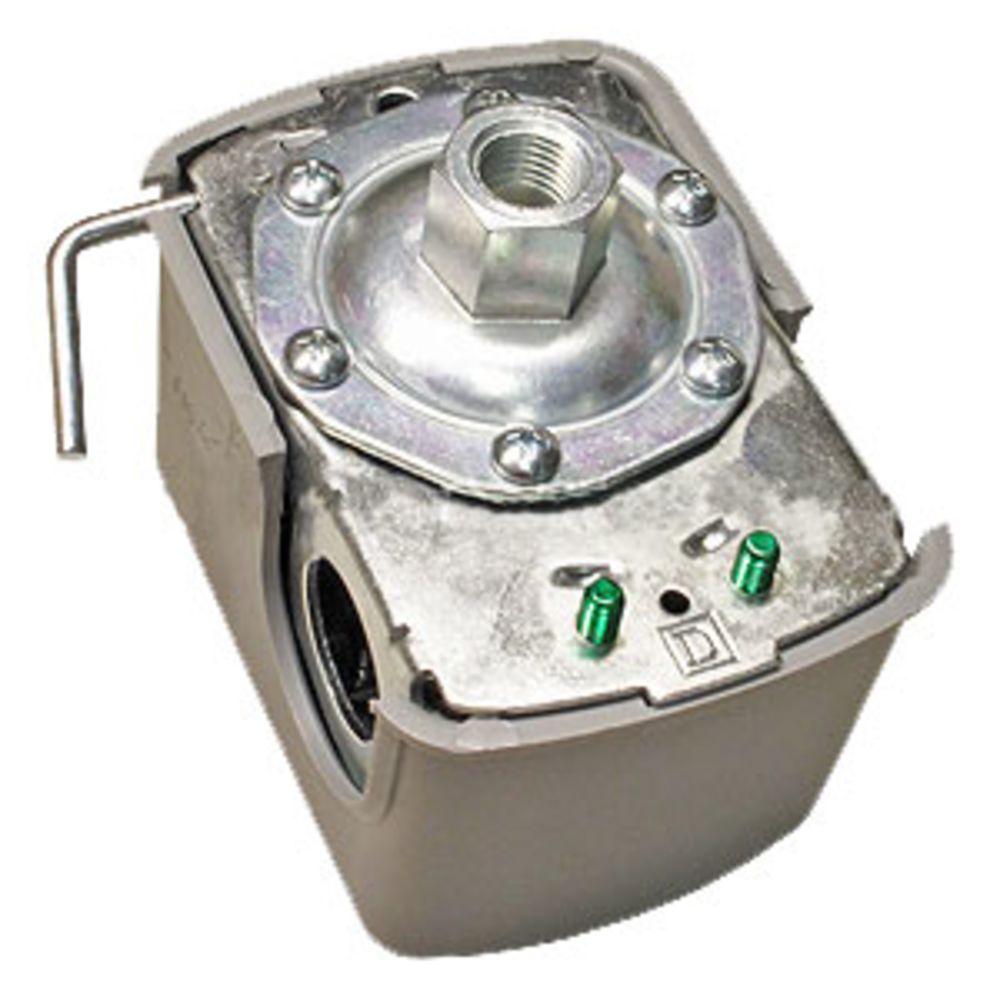

Square D Pressure Switch, Low Pressure 30/50 Adjustable, DPST, Diaphragm 1/4 FPT

Square D Pumptrol 9013FSG2J21M4 well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:

• Amps: 10A
• Actuator Type: Diaphragm
• Diaphragm: Nitrile (Buna N)
• UL Listed and CSA Certified
• Indoor Use
• Pressure Connection: 1/4" FNPT
• Maximum Voltage Rating: 575VAC
• Factory Set Cut-In Pressure: 30 psi
• Factory Set Cut-Out Pressure: 50 psi
• Maximum Allowable Pressure: 220 psig
• Low Pressure Cut-Off: 10 psi below cut-in

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	10 Amps
Diaphragm Materials	Buna-N
Max Pressure (Psi)	50
Min Pressure (Psi)	30
Power	1.5 HP @ 115 VAC (1-phase) 2 HP @ 230 VAC (1-phase) 3 HP @ 230 VAC (3-phase) 1 HP @ 460/575 VAC (3-phase)
Connection Type	Screw Clamp
Origin	Mexico
Voltage	115V 230V
Shipping Dimensions
Shipping Length	3.88 in.
Shipping Width	3.88 in.
Shipping Height	3.88 in.
Product Weight & Dimensions
Approx Depth	2.78"
Product Height	3.88 in.
Product Length	3.88 in.
Product Width	3.88 in.
Product Weight (lbs)	1.75
