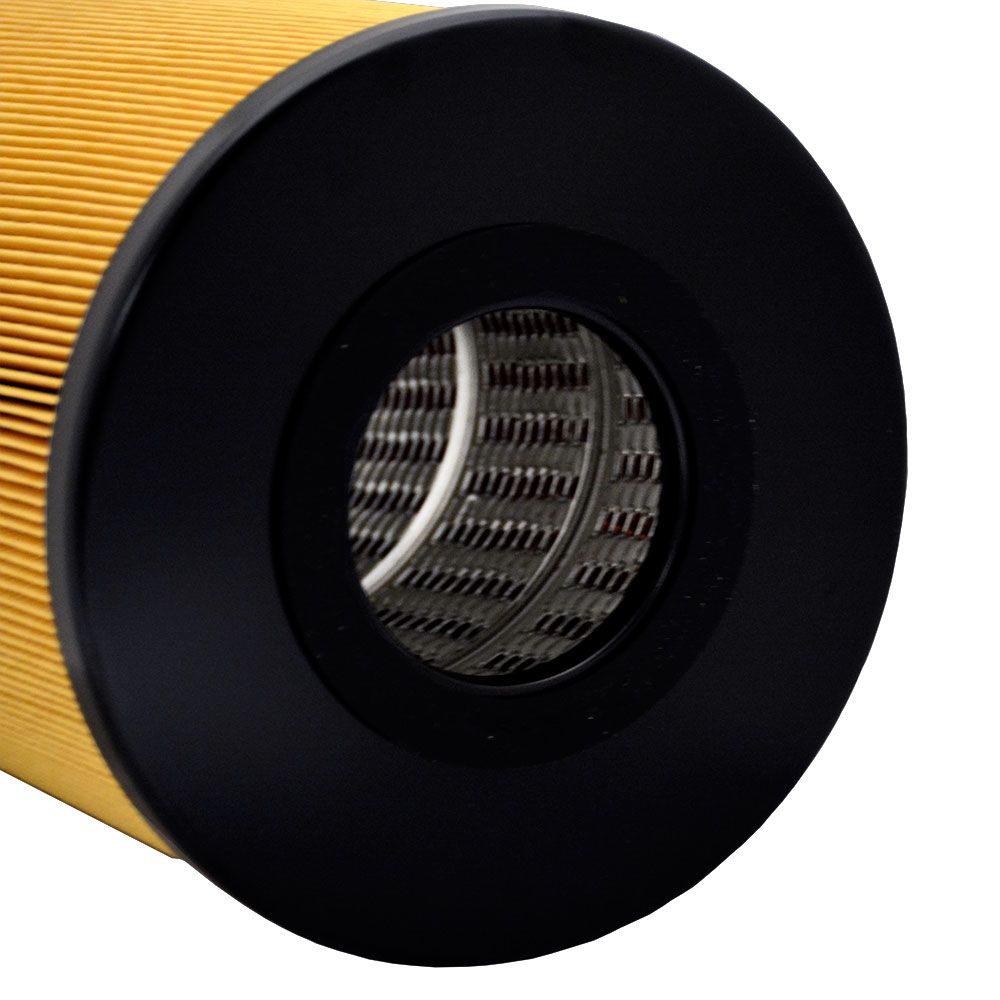

Neo-Pure PSJ-90-01M Pleated High Temp Jumbo Cartridge 1 micron

The Neo-Pure PSJ-90-01M Pleated High Temperature Jumbo Cartridge is manufactured in the USA and designed to be used in applications where temperatures may range up to 250°F. Neo-Pure High Temperature Cartridges are constructed out of pleated phenolic impregnated cellulose media and come with Buna-N gaskets. The pleated surface area increases filter life, loading capacity, and particle removal.

Specifications:

• Pleated design for increased surface area, dirt holding capacity and increased particle removal
• Fewer cartridges to change results in lower maintenance costs
• Media: Pleated phenolic impregnated cellulose
• Epoxy coated center core
• Gaskets: Buna-N
• Filter Dimensions: 19-1/2" x 7-5/8"
• Max Temperature: 250°F
• Made in the USA

Applications:

• High Temperature Industrial Water
• Filtration
• Lubricating Oil
• Cutting Fluids
• Solvents
• Distillate Fuel
• Fuel Oil
• Hydraulic Fluids

Compatible with:

American Filtration Technologies

820-1B

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Gaskets	Buna-N
Max Pressure (Psi)	75
Max Temp (°F)	250
Micron Rating (Nominal)	1 µm
Surface Area	Approximately 90 Square Feet
Cap Material	Electro Plated Tin
Cartridge Style	Drop-in
Change Frequency	As needed
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	7-5/8"
Media Type	Phenolic Impregnated Cellulose
Origin	U.S.A.
Shipping Dimensions
Shipping Length	8 in.
Shipping Width	8 in.
Shipping Height	21 in.
Product Weight & Dimensions
Product Length	19 1/2" (49.5 cm)
Product Weight (lbs)	6.875
