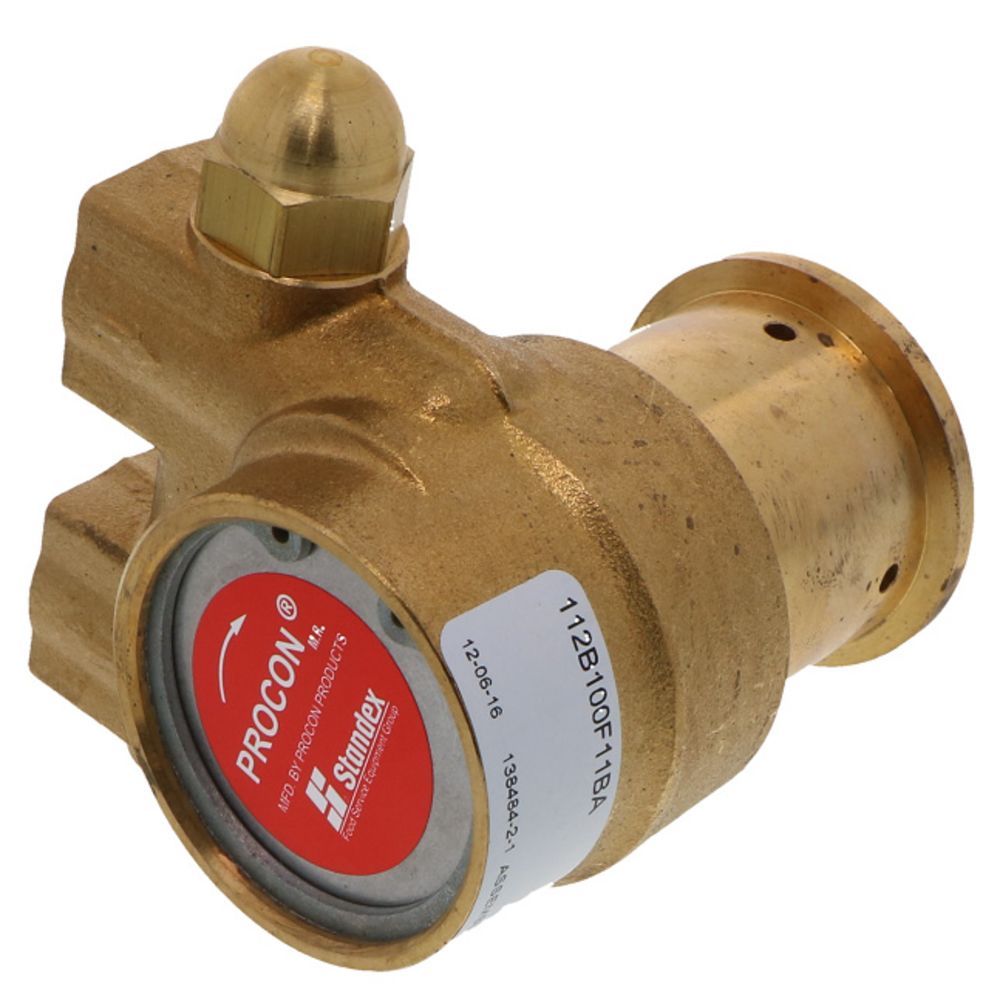

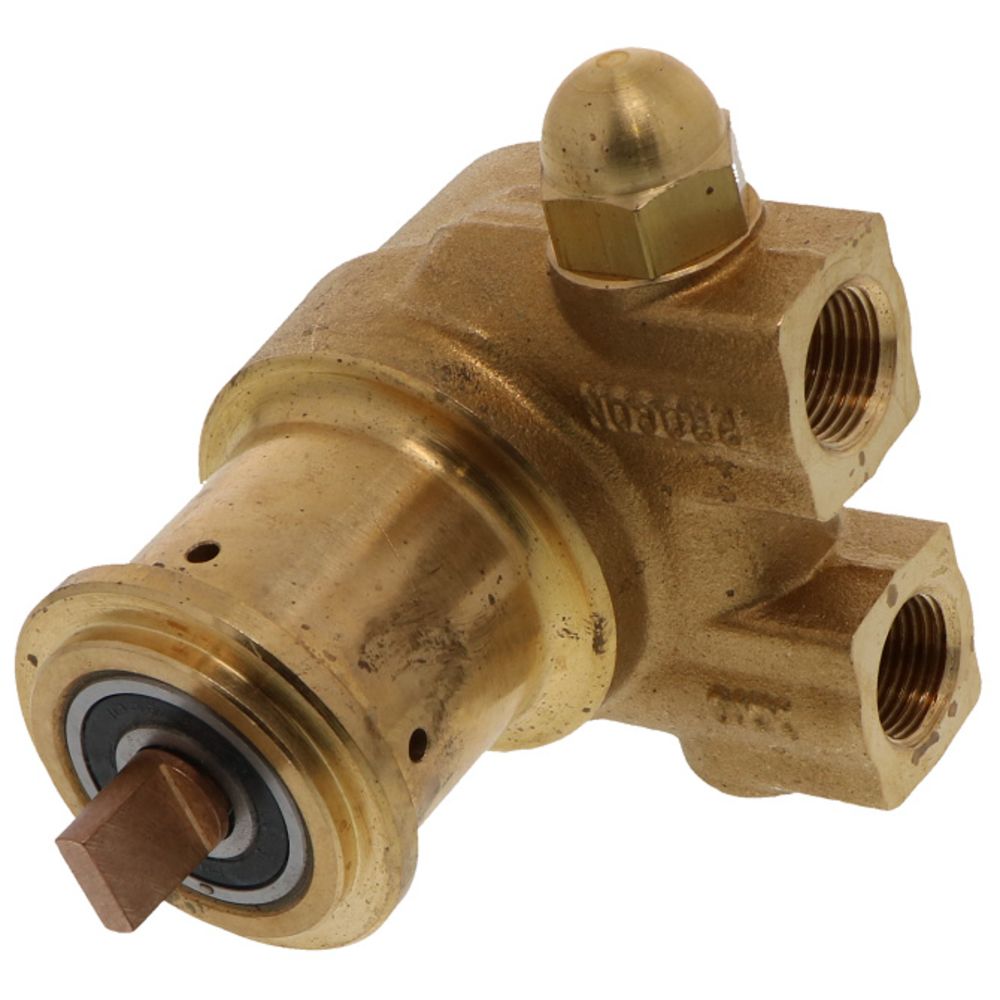

Procon Pump NSF Brass 100 GPH 3/8" NPT - 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on)

The Procon Pump NSF Brass 100 GPH 3/8" NPT - 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on) is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive and 1143 bronze coupling. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 112B100F11BA250 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 250 PSI. The 112B100F11BA250 pump is designed to be directly connected to the motor with a stainless steel clamp.

Leak-free. The seal configuration uses Nitrile Type 21, which will prevent leakage.

NSF Certified.
NSF/Ansi Standard 169 for special purpose food equipment and devices.

Typical Applications. Beverage, espresso/coffee, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Low Maintenance. The Series 2 pumps are self-priming, so there is virtually no maintenance.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8" MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Pump Max Flow Rate (Gpm)	100
Pump Max Pressure (Psi)	250
Series	2
Size	3/8"
Surface Area	3.25 Square"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	3.5 in.
Shipping Width	3.5 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	3.5
