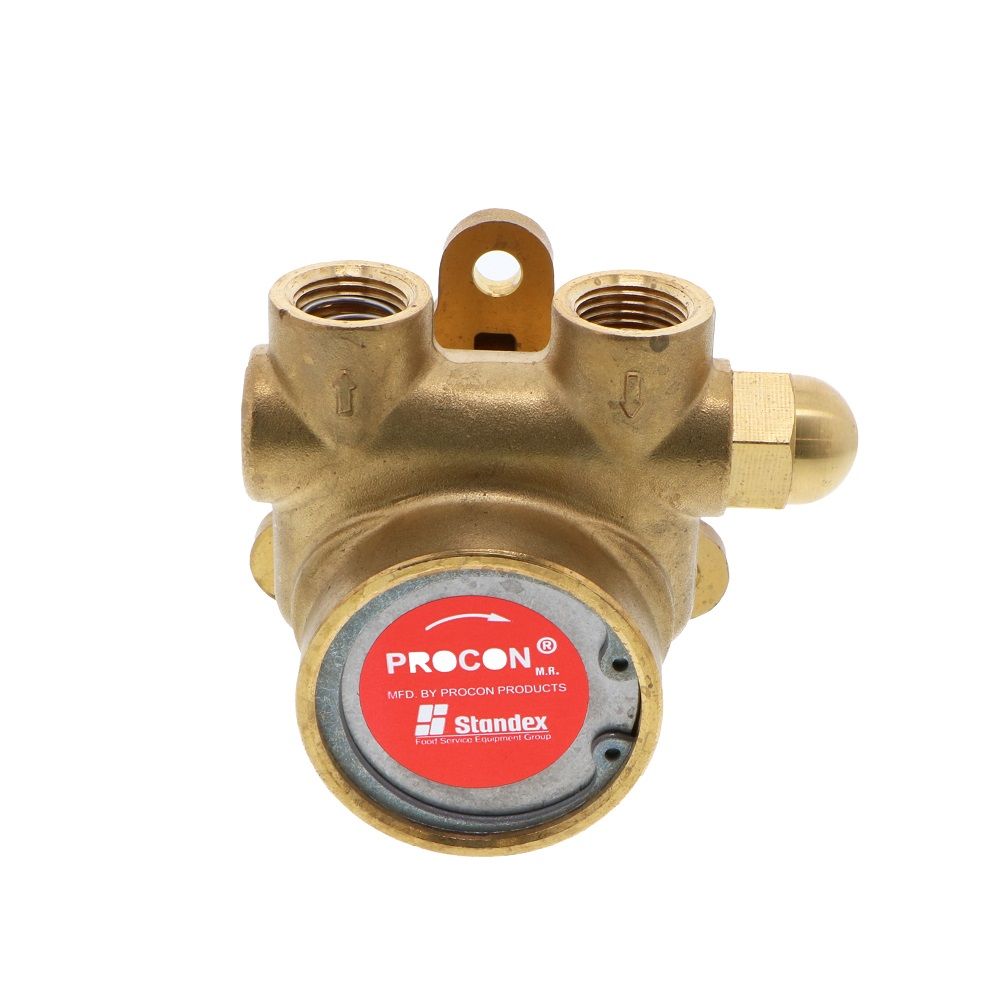

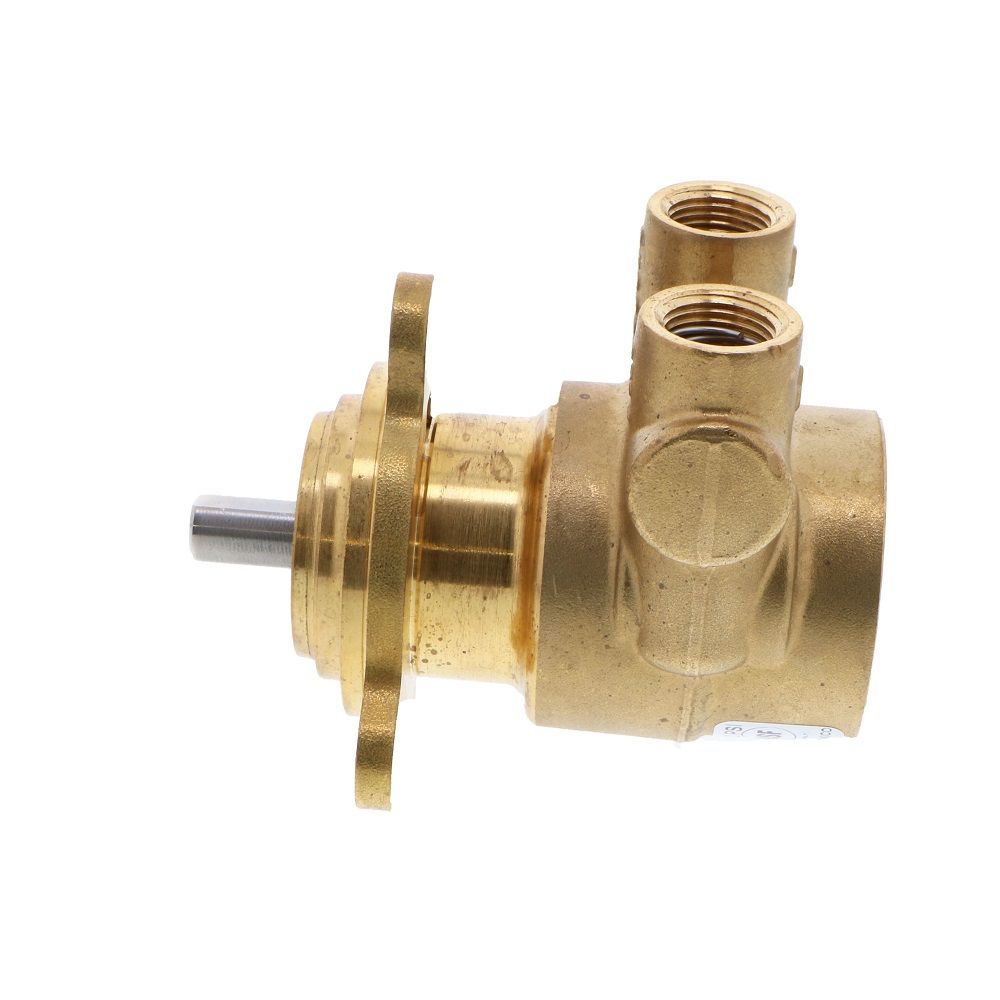

Procon Pump NSF Brass 60 GPH 3/8" NPT w/ Single Flat Drive (Bolt-on)

The Procon Pump NSF Brass 60 GPH 3/8" NPT w/ Single Flat Drive (Bolt-on) Rotary Vane Pump is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive. The inlet and outlet ports are 3/8" NPT with a flow-rate of 60 gallons per hour. The seal configuration for the 112E060F11AB uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The 112E060F11AB pump is designed to be directly bolt mounted to the motor.

Features:

• Leak-free: The seal configuration uses Nitrile Type 21, which will prevent leakage.
• NSF Certified: NSF/Ansi Standard 169 for special purpose food equipment and devices.
• Applications: Beverage, espresso/coffee, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.
• Low Maintenance: The Series 2 pumps are self-priming, so there is virtually no maintenance.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8" MPT
Min Pressure (Psi)	100
Mounting Options	Bolt-On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	60
Pump Max Pressure (Psi)	150
Series	2
Size	3/8"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	3
Product Length	4.25
Product Width	3.25
Product Weight (lbs)	3
