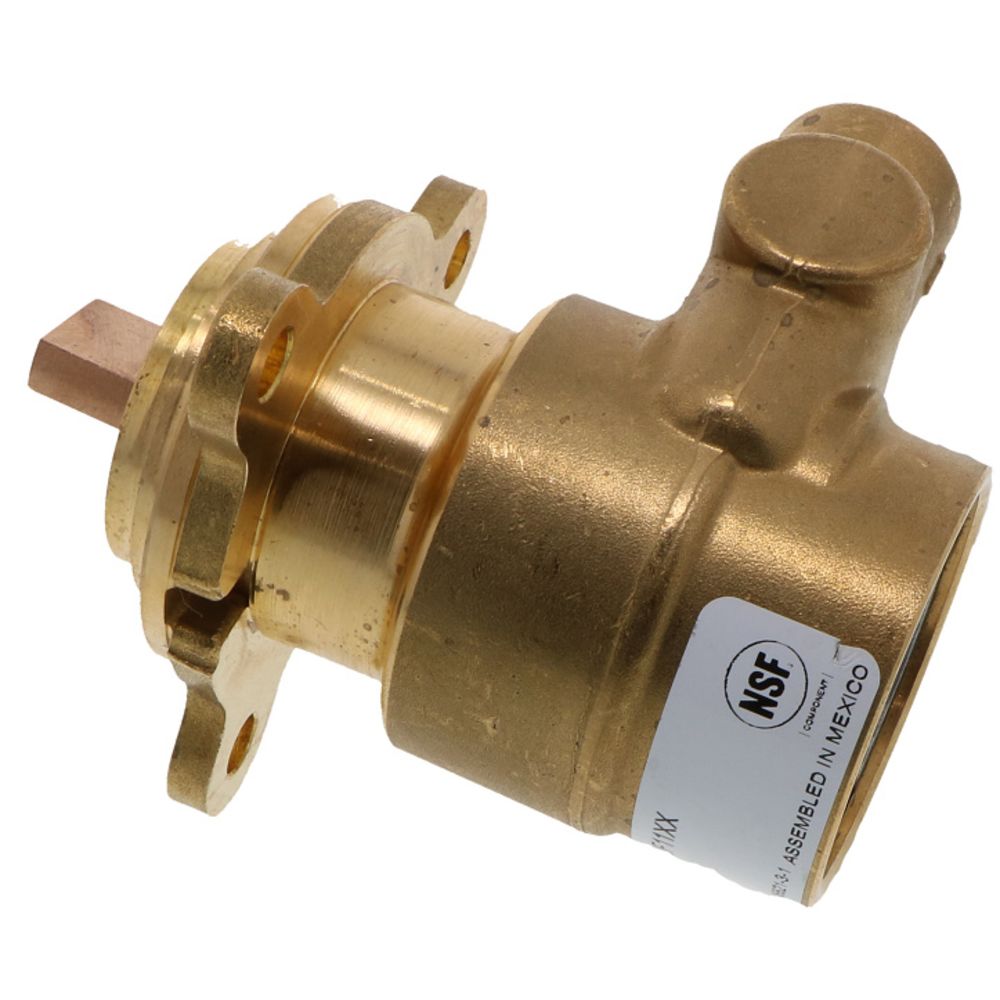

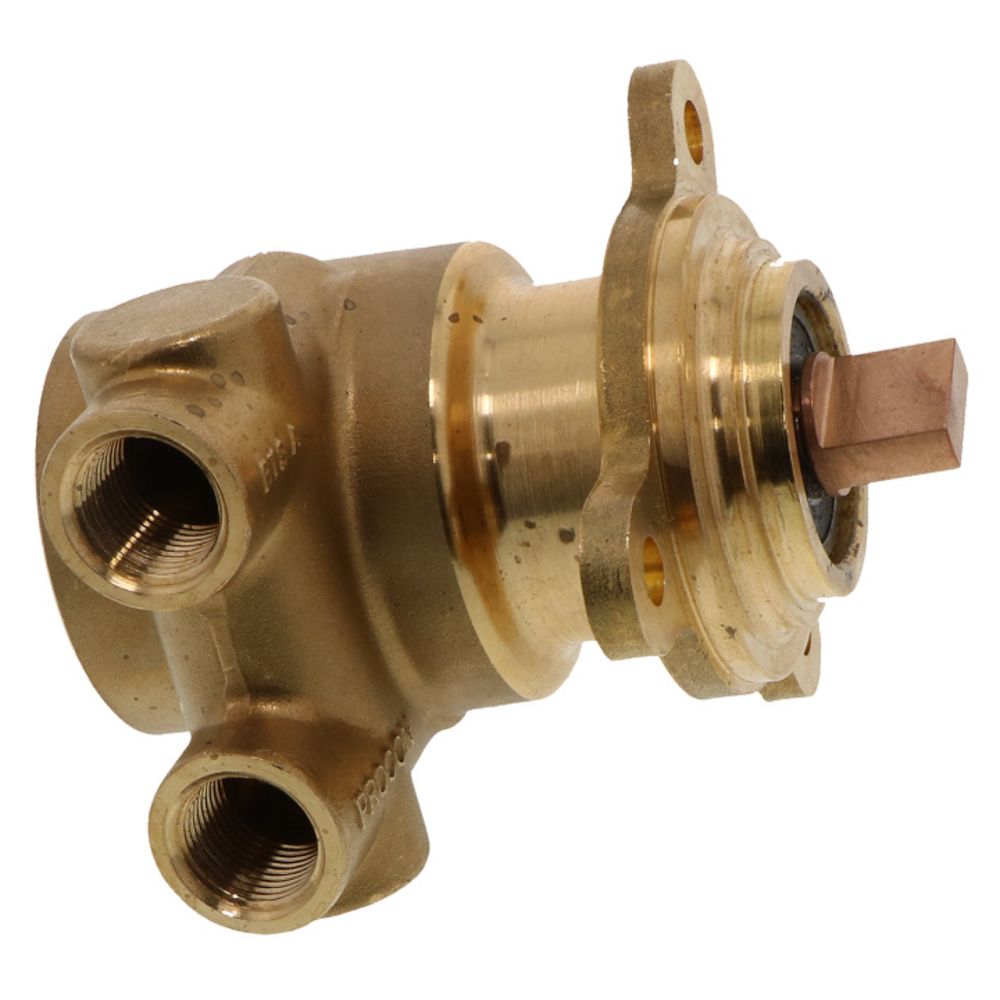

Procon Pump NSF Brass 100 GPH 3/8" NPT w/ Oversize Coupling (Bolt-on)

The Procon Pump NSF Brass 100 GPH 3/8" NPT w/ Oversize Coupling (Bolt-on) is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive with an oversized coupler. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 112L100F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 112L100F11XX pump is designed to be bolted directly to the motor.

Features:

• The seal configuration uses Nitrile Type 21, which will prevent leakage.
• NSF/Ansi Standard 169 for special purpose food equipment and devices.
• The Series 2 pumps are self-priming, so there is virtually no maintenance.

Applications:

• Beverage, espresso/coffee, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Note: The NSF Procon 112L100F11XX is the replacement pump for Haskris Chillers.



California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8" MPT
Mounting Options	Bolt-On
Outlet Connection	3/8" MPT
Pump Max Flow Rate (Gpm)	100
Series	2
Size	3/8"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	3
Product Length	3.25
Product Width	3
Product Weight (lbs)	3
