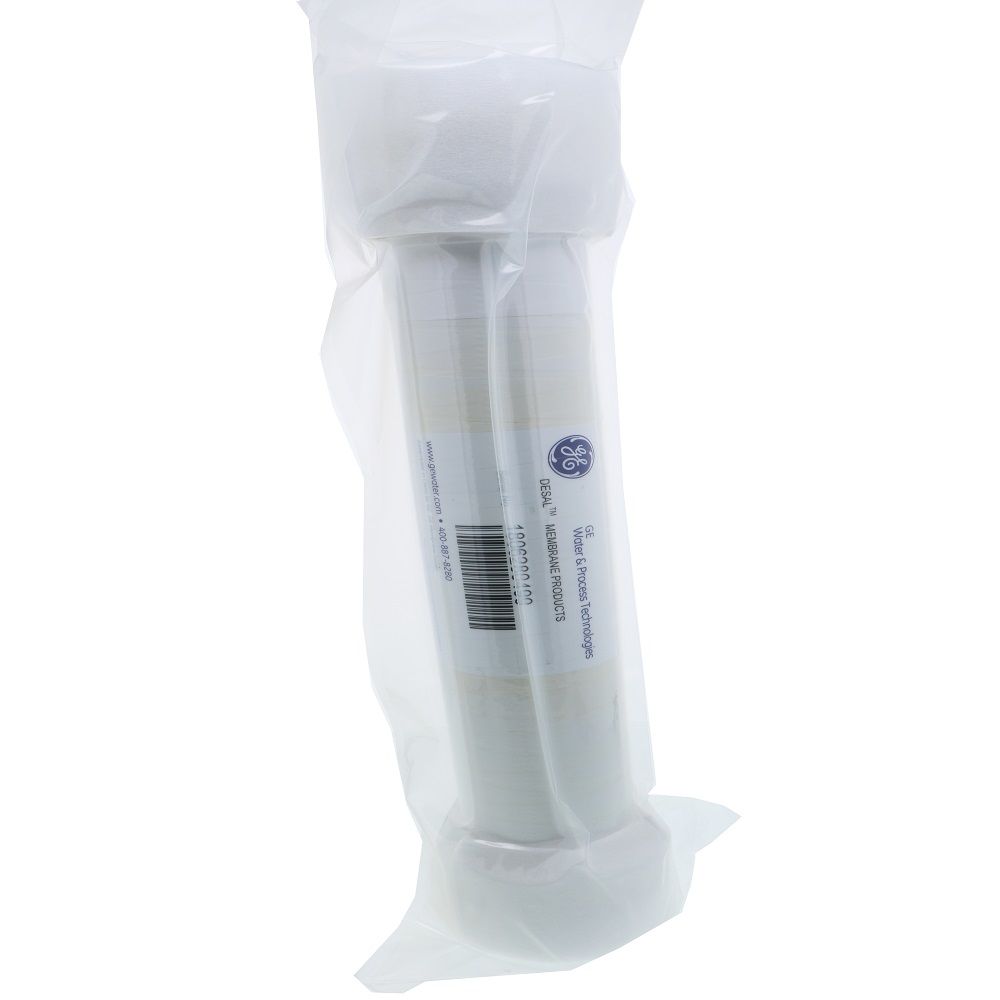

Veolia Osmonics Desal AG3218TM 755 GPD RO Membrane Element

The Veolia Osmonics Desal AG-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures are desired. These elements allow moderate energy savings since good rejection is achieved at operating pressures as low as 200 psig, and are considered a standard in the industry.

Specifications:

• High Flux and Excellent NaCL Rejection
• Thin-Film Reverse Osmosis Membrane Element
• 755 Gallons Per Day
• Dimensions: 3.2" x 18"
• Male End Connections
• Tape Outer Wrap
• 28 mil Feed Spacers
• Operating Pressures as low as 200 PSIG

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	29 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	1,000 ppm-hrs
Direction	Outside - In
Inlet Pressure	200 PSI
Inner/Outer Wraps	Tape
Max Pressure (Psi)	450psi
Max Temp (°F)	122 °F
Membrane Type	Spiral Wound
Permeate Tube Diameter	3/4"
Cartridge Style	Drop-in
Diameter	3.2"
Shipping Dimensions
Shipping Length	25.75 in.
Shipping Width	5 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	22.5
Product Width	4.5
Product Weight (lbs)	3.041
