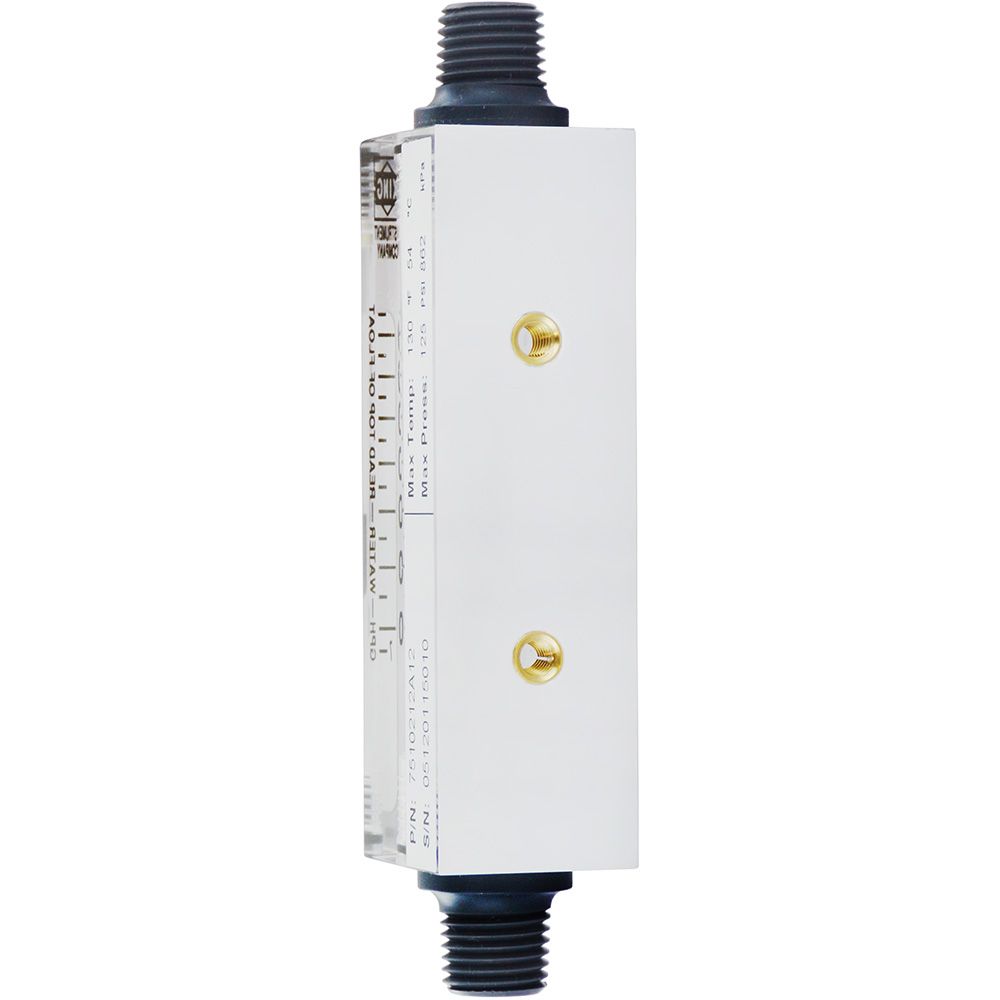

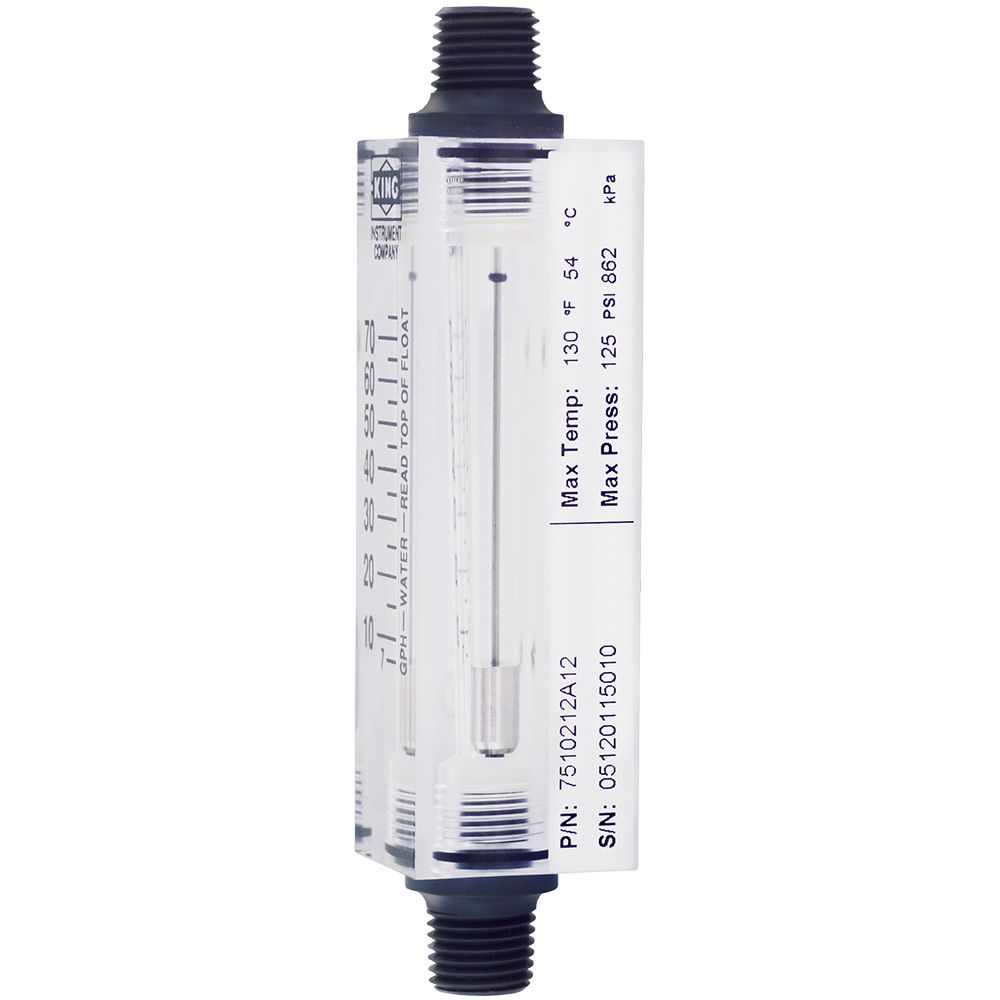

King 7510212A12 Acrylic Tube Flowmeter 75 GPH

The King 7510 Series Acrylic Tube Flowmeter features a float and tapered tube design, which provides it with longer and more linear scales, better pointer stability, and 40% more accuracy than competing rotometers, all at a competitive price. These flowmeters are precision-machined from durable cast acrylic stock, and internal components and fittings are made with 316L stainless steel. Connections are in-line for easy installation.

Specifications:

Metering Tube: Machined cast acrylic
Internal Components Material: 316L SS
Fitting Material: PVC
O-Ring Material: EPR
Water Flow Capacity: 75 GPH

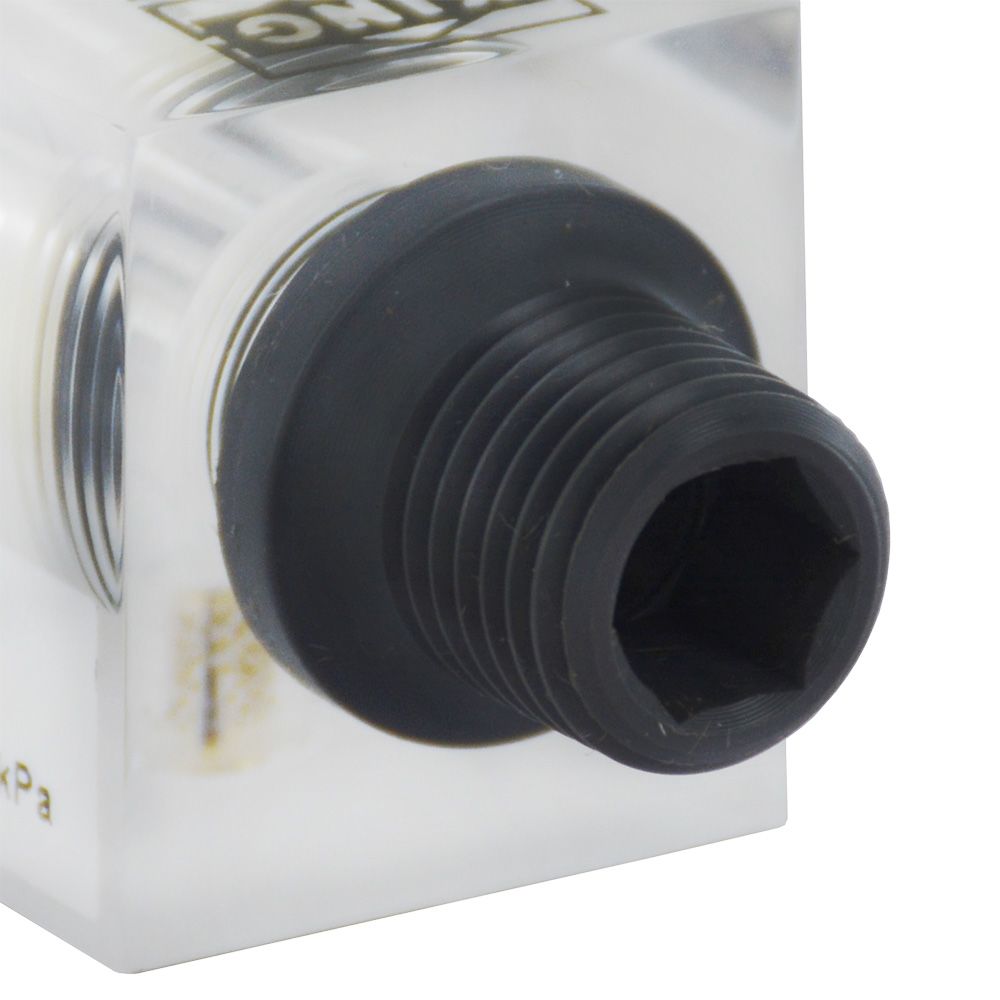

Connection Size: 1/4" FNPT
Accuracy: ±6% of full scale flow
Turndown: 10:1
Repeatability: 3% 50mm scale
Maximum Water Pressure: 125 psig
Maximum Liquid Temperature: 130°F (54°C)
Dimensions: 4.75" x 1"

California residents Prop 65 Warning

warning symbol

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Accuracy	±6 %
Body Material	Acrylic
Max Pressure (Psi)	125
Max Temp (°F)	130
O-Rings	EPDM
Flow Rate	75 GPH
Port Size	1/4" FNPT
Type	Acrylic Tube Flowmeter
Shipping Dimensions
Shipping Length	2 in.
Shipping Width	2 in.
Shipping Height	7 in.
Product Weight & Dimensions
Product Weight (lbs)	0.5
