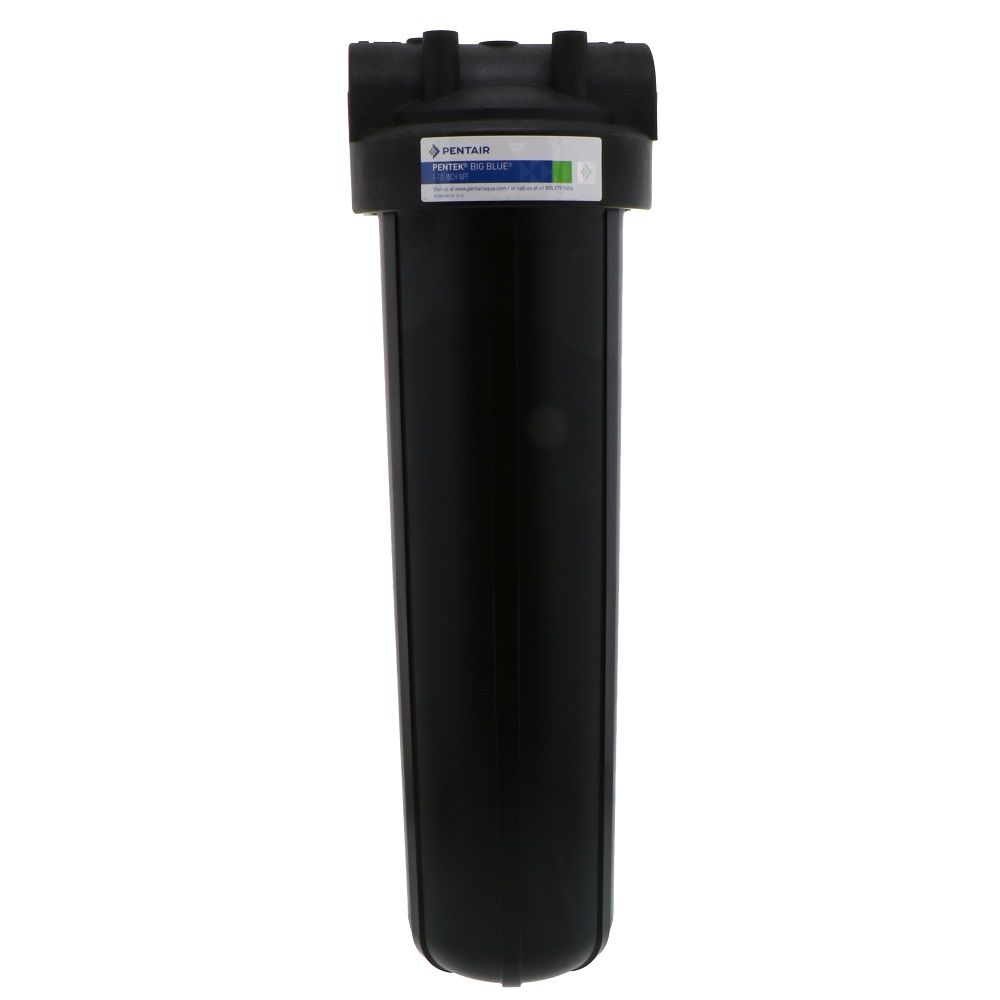

Pentek 20" Big Black Water Filter Housing No Pressure Relief

Pentek 20" Big Black Water Filter Housings are ideal substitutes for costly low-pressure stainless steel vessels. Big Black filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Big Black Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:

• Sump Material: Polypropylene Sump

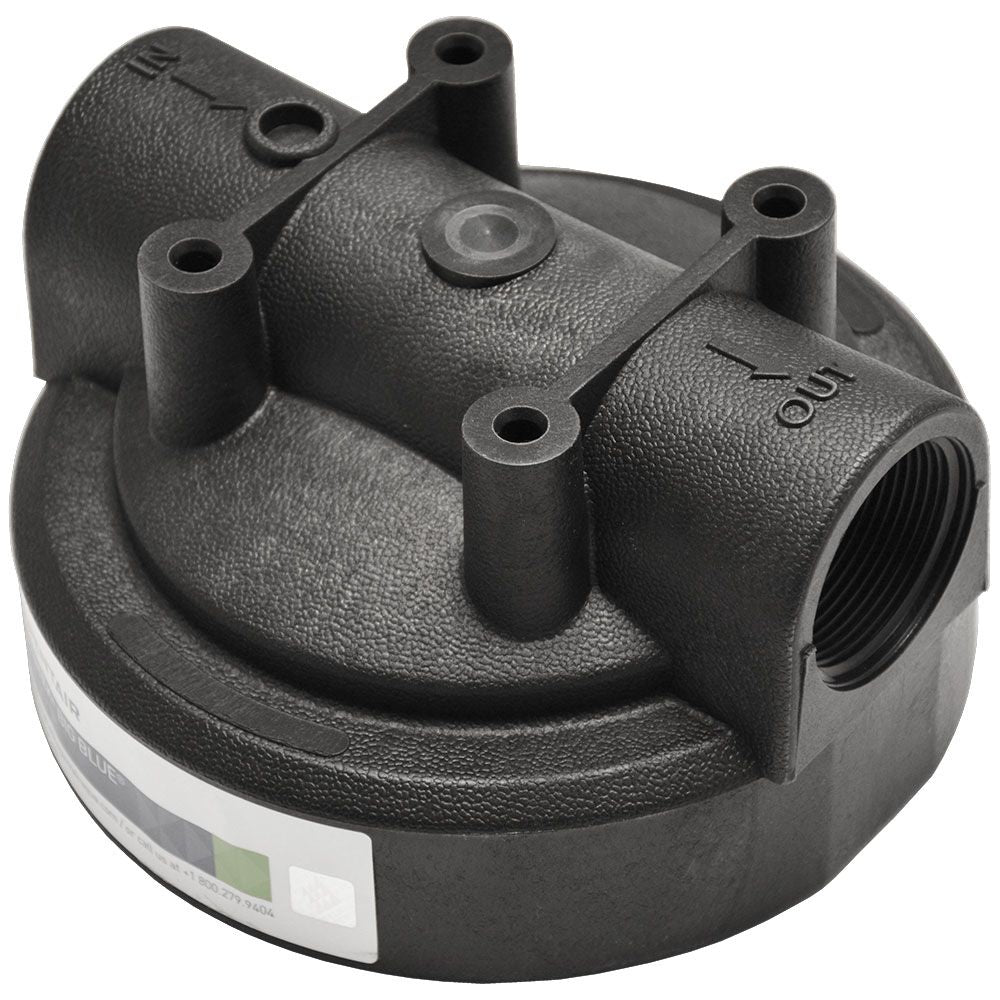

• Cap Material: Polypropylene (HFPP) Cap
• Inlet/Outlet: 1" FPT
• O-ring: 151122 Buna-N
• Max Temperature: 100°F
• Max Pressure: 20": 90 psi (6.2 bar)
• Certifications: NSF Certified to Standard 42

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Cap Color	Black
Features	No Pressure Relief
Inlet Connection	1" FPT
Material Of Construction	Polypropylene
Max Pressure (Psi)	90
Max Temp (°F)	100
O-Rings	Buna-N
Outlet Connection	1" FPT
Psid@Flow Rate	2 PSI @ 15 GPM
Size	20"
Cap Material	Polypropylene
Color / Finish	Black
Connection Type	Female (FPT)
Type	Heavy Duty Big Blue® - White - Black
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	7 in.
Shipping Width	7.5 in.
Shipping Height	13 in.
Product Weight & Dimensions
Product Height	23-3/8"
Product Width	7-1/4"
Product Weight (lbs)	17
