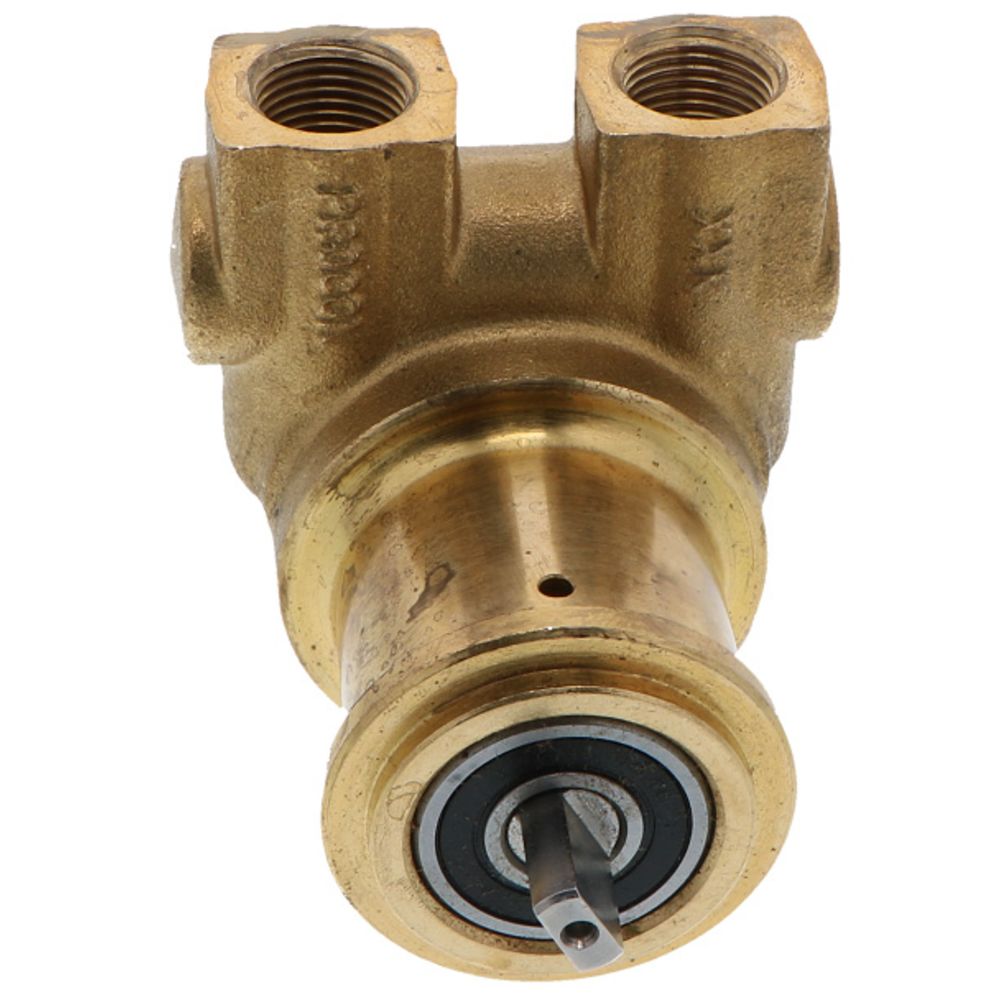

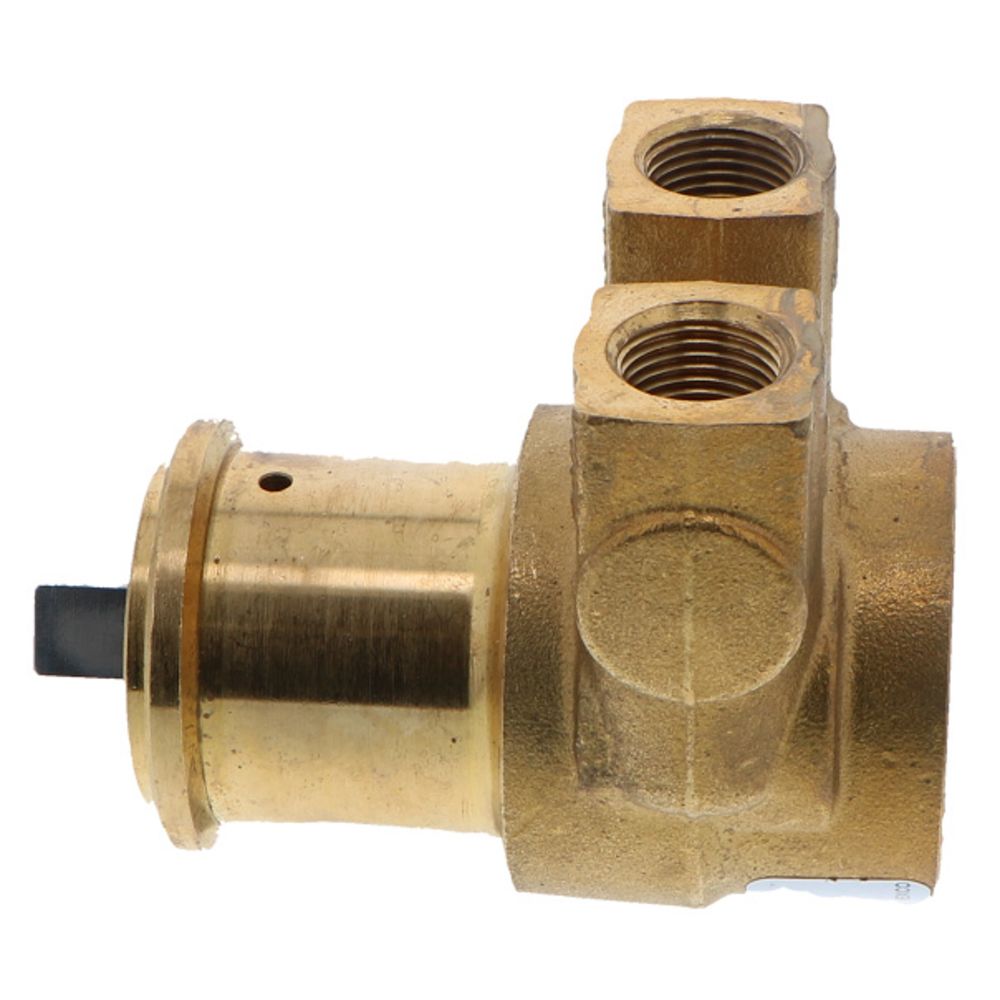

Procon Pump Brass w/ .188" Double Flat Drive 80 GPH 3/8" NPT

Procon 102A080R12XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass and has a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 80 gallons per hour. The seal configuration for the 102A080R12XX uses Flourocarbon Type 21 which will prevent leakage.

Features:
The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 102A080R12XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:

• Capacity: 80 GPH
• Nominal Speed: 1725 RPM
• Maximum Discharge Pressure: 250 PSI
• Rotation: Clockwise
• Weight: 2.5 lbs
• Port Size: 3/8" NPT Inlet and Outlet
• Double Flat Drive: .188"

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Fluorocarbon
Inlet Connection	3/8" MPT
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Pump Max Flow Rate (Gpm)	80
Series	2
Size	3/8"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Product Weight & Dimensions
Dimensions	SPCL Clearance (1x) Liner & BRGS
Product Weight (lbs)	3.7
