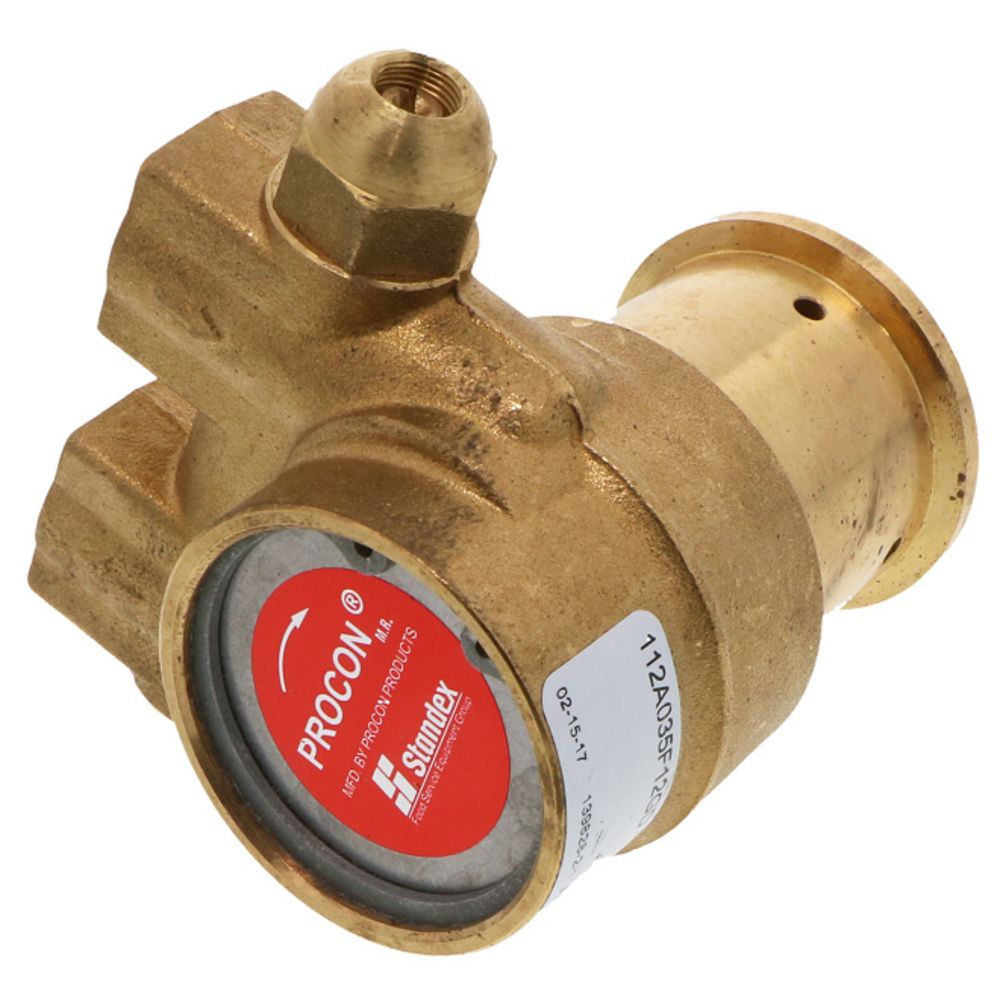

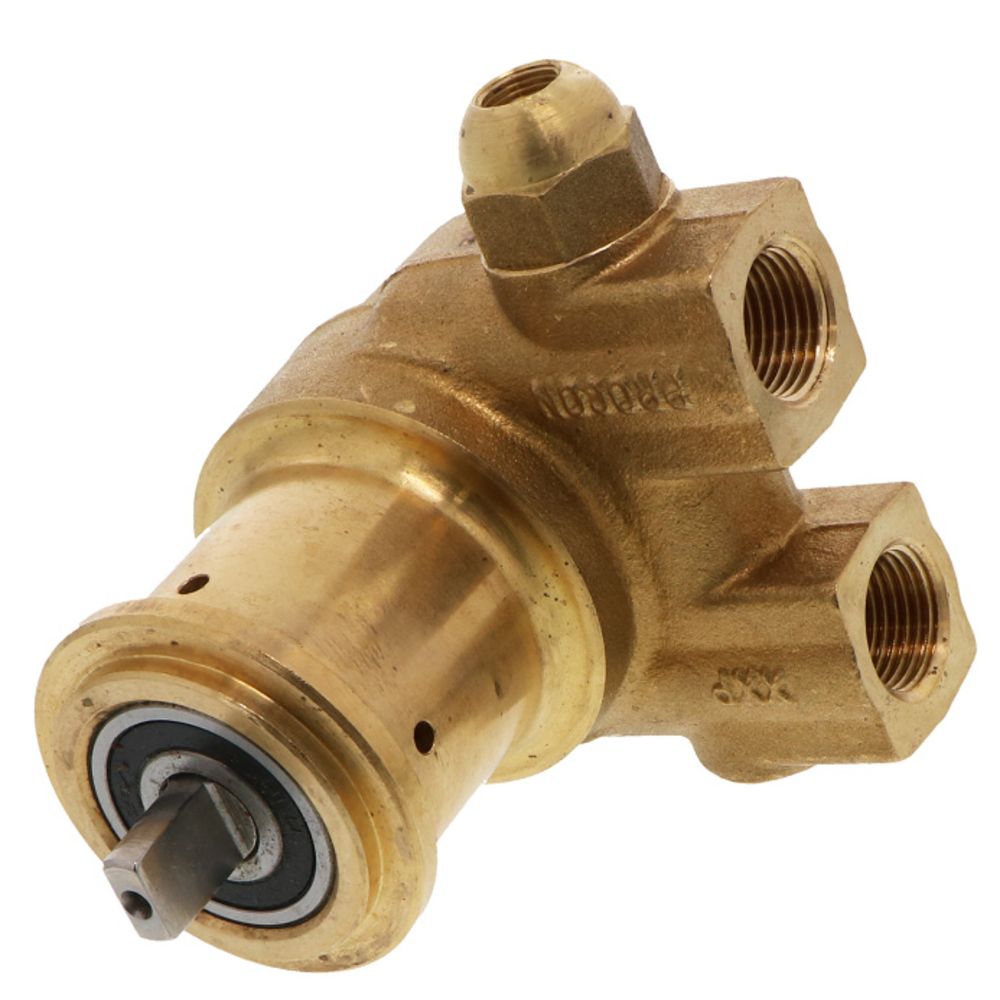

Procon Pump NSF Brass 35 GPH 3/8" NPT - 50 psi PRV w/ .188" Double Flat Drive (Clamp-on)

The Procon Pump NSF Brass 35 GPH 3/8" NPT - 50 psi PRV w/ .188" Double Flat Drive (Clamp-on) rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive. The inlet and outlet ports are 3/8" NPT, with an intergral strainer, and the pump has a flow-rate of 110 gallons per hour. The seal configuration for the 112A035F12GD050 uses Nitrile Type 21 seals which prevents leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The pressure relief valve for this pump is set for 50 PSI. The 112A035F12GD050 pump is designed to be directly connected to the motor with a stainless steel clamp.

Features:

• Leak-free- The seal configuration uses Nitrile Type 21, which will prevent leakage.
• NSF Certified
• NSF/Ansi Standard 169 for special purpose food equipment and devices.


Applications:
Beverage, espresso/coffee, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Low Maintenance The Series 2 pumps are self-priming, so there is virtually no maintenance.


Compatible with:

Rotary Vane Pumps

102A035F12GD050

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Elastomer Type	Buna-N
Inlet Connection	3/8" MPT
Mounting Options	Bolt-On
Outlet Connection	3/8" MPT
Pump Max Flow Rate (Gpm)	35
Size	3/8"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.25
