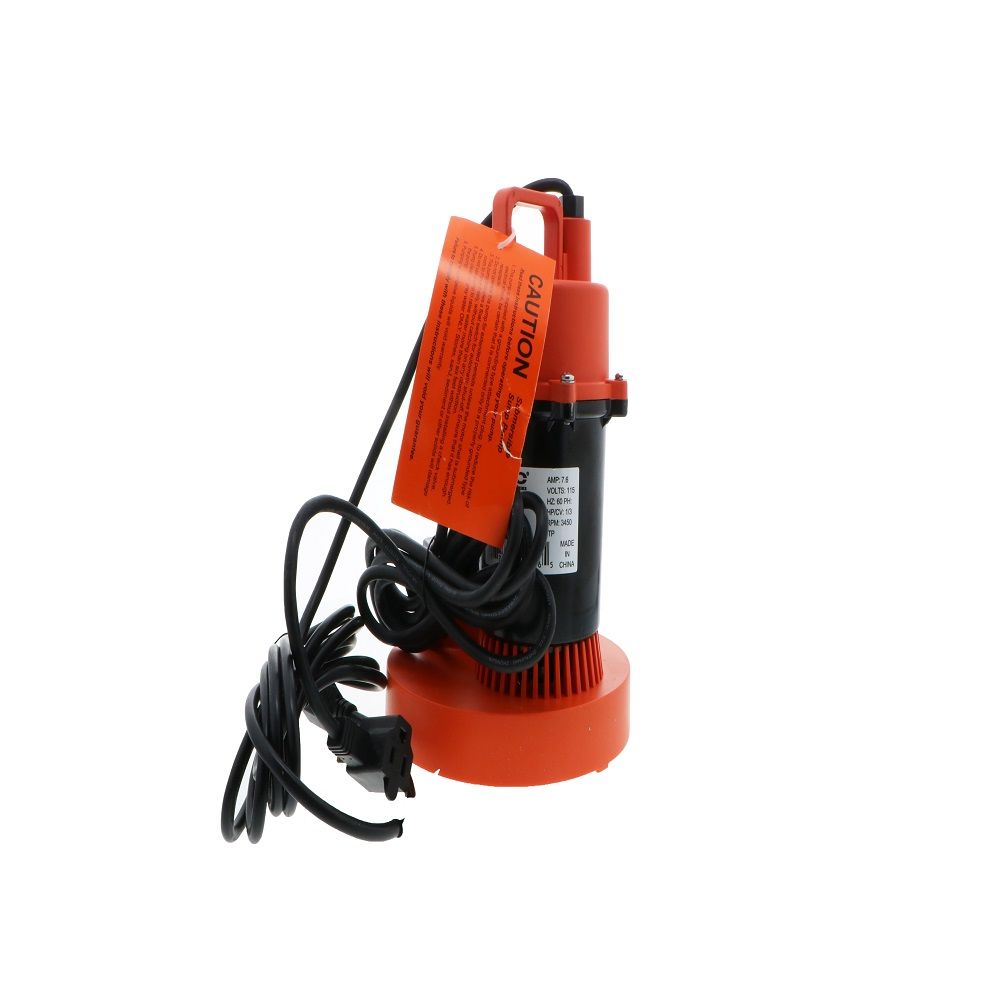

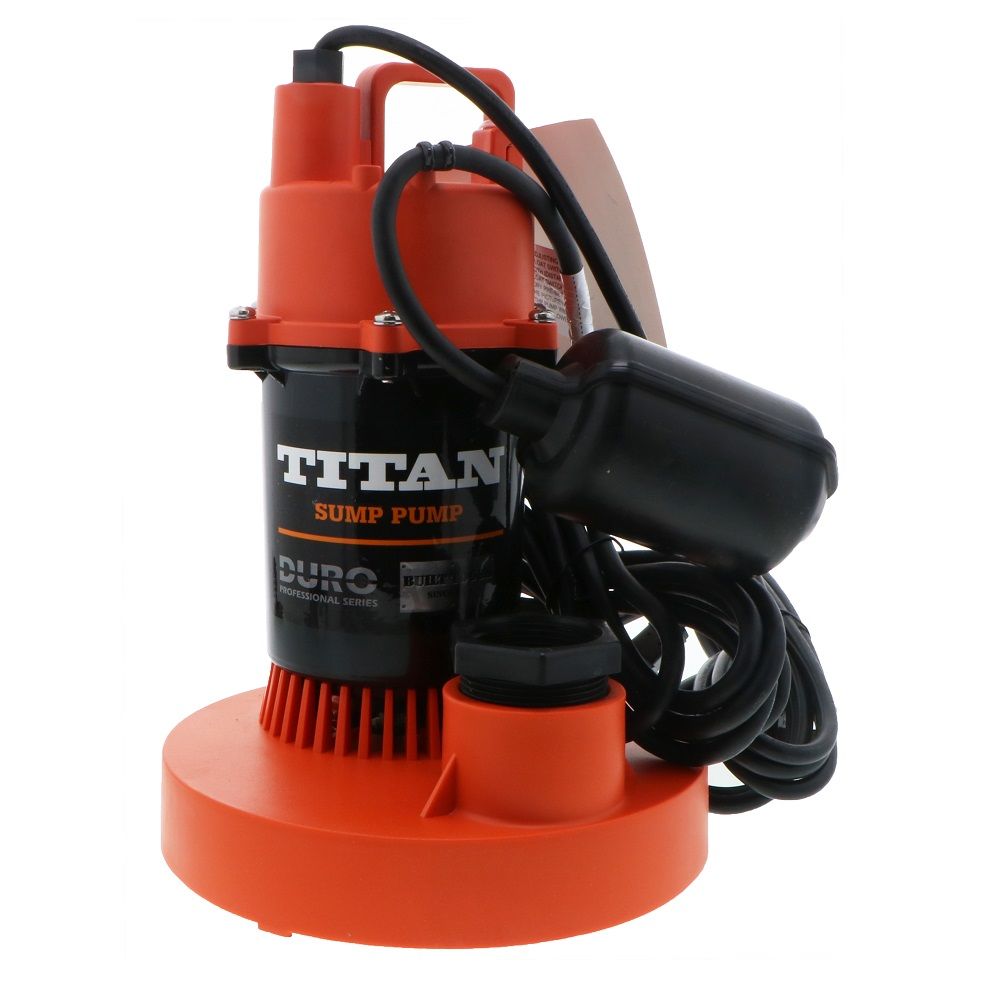

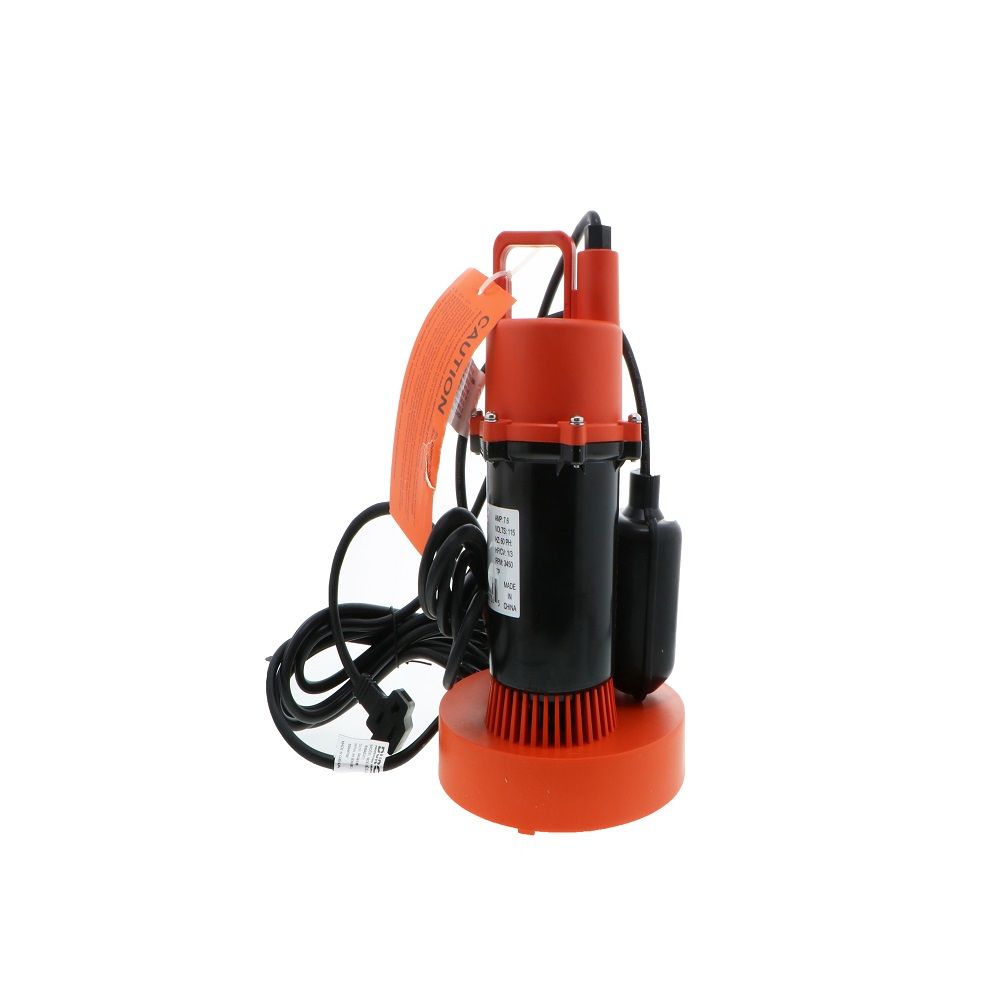

Titan Basement Submersible Sump Pump 1/3 HP - Vertical Float

The Titan DSB250V Home and Basement Submersible Sump Pump is designed for quick and simple installation, easy maintenance and smooth operation. Since 1932 Titan Sump Pumps has one of the lowest failure rates . The DSB250V has a vertical float switch that controls the 1/3 HP pump which operates at a flow rate of 53.3GPM.

Additional Specifications:

• Aluminum die-casting and engineered thermoplastic for impact and corrosion resistance.
• Stainless steel hardware for long lasting durability.
• Screened top inlet prevents pieces of debris larger than the pump can handle from entering and damaging the impeller.
• Thermoplastic vortex impeller designed for high lift and flow capacity.
• Carbon / ceramic mechanical seals and lip seals to ensure positive protection from water and oil leakage.
• Upper and lower NSK ball bearings for improved pump performance and extended operating life.
• Piggyback tethered float switch
• 1-1/2" or 1-1/4" NPT discharge.
• 10 foot power cord with 3-prong adapter, plugs into a wall outlet for simple solder-less wiring connection of the home and basement sump pump.
• Two Year Warranty
• To compare The Titan home and basement sump pump to the Zoeller 49, Little Giant ES33, and other submersible sump pumps see the main Sump Pump category.

Comparable to other basement and home sump pumps such as Myers S33, Zoeller M53, StormPro BA-33M, Basement Watchdog BW1033, Wayne SPF33, Superior Pump 92341, Wayne CDU790, Superior Pump 92352, Superior Pump 92372, Little Giant SC33S, Little Giant SP33V



California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Housing Material	Aluminum Die Casting/Thermoplastics
Inlet Connection	1-1/4" FPT 1-1/2" FPT
Liquid Temperature	32-140 °F
Outlet Connection	1-1/4" FPT 1-1/2" FPT
Power	1/3 hp
Power Source	10´, 3-prong
Pump Max Flow Rate (Gpm)	53.3
Size	1-1/4" 1-1/2"
Voltage Type	AC
Connection Type	Female (FPT)
Type	Sump Pump
Voltage	115VAC
Warranty & Certifications
Warranty	2 Years
Product Weight & Dimensions
Product Height	11"
Product Length	11"
Product Width	7-3/4"
Product Weight (lbs)	12.3
