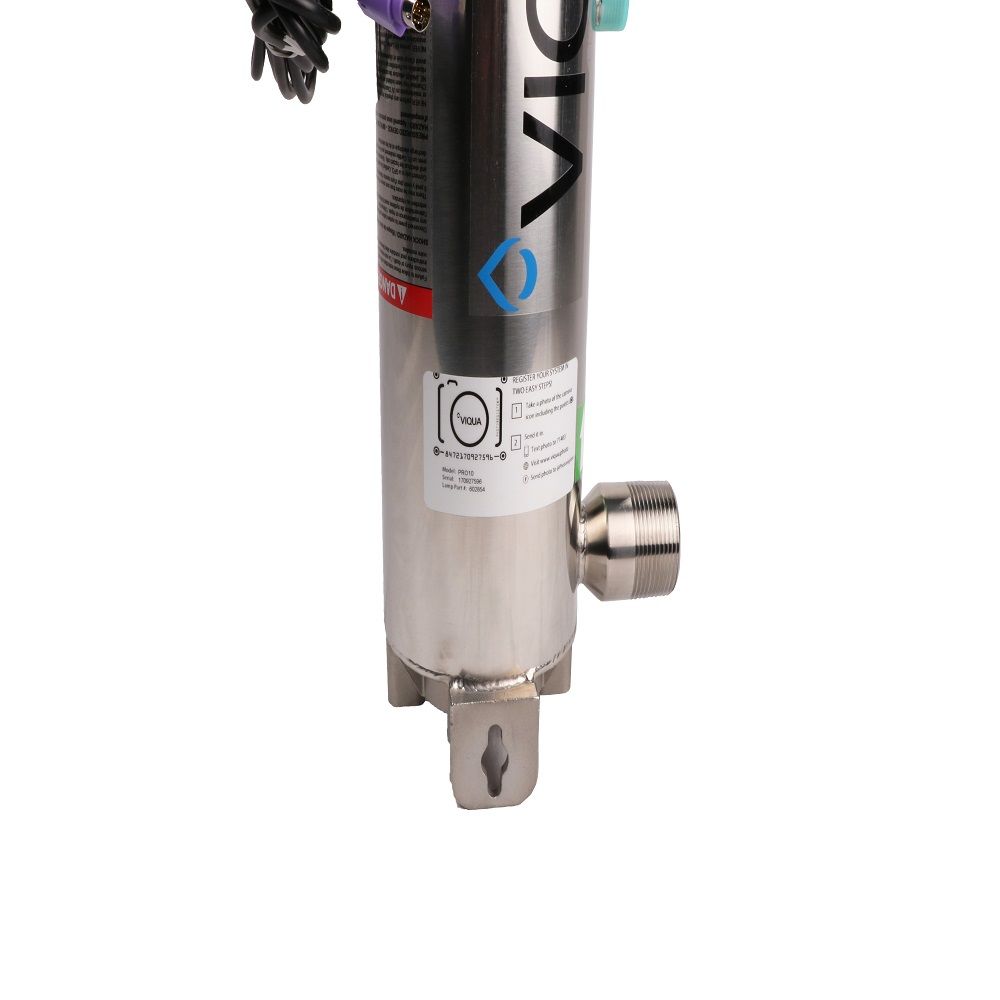

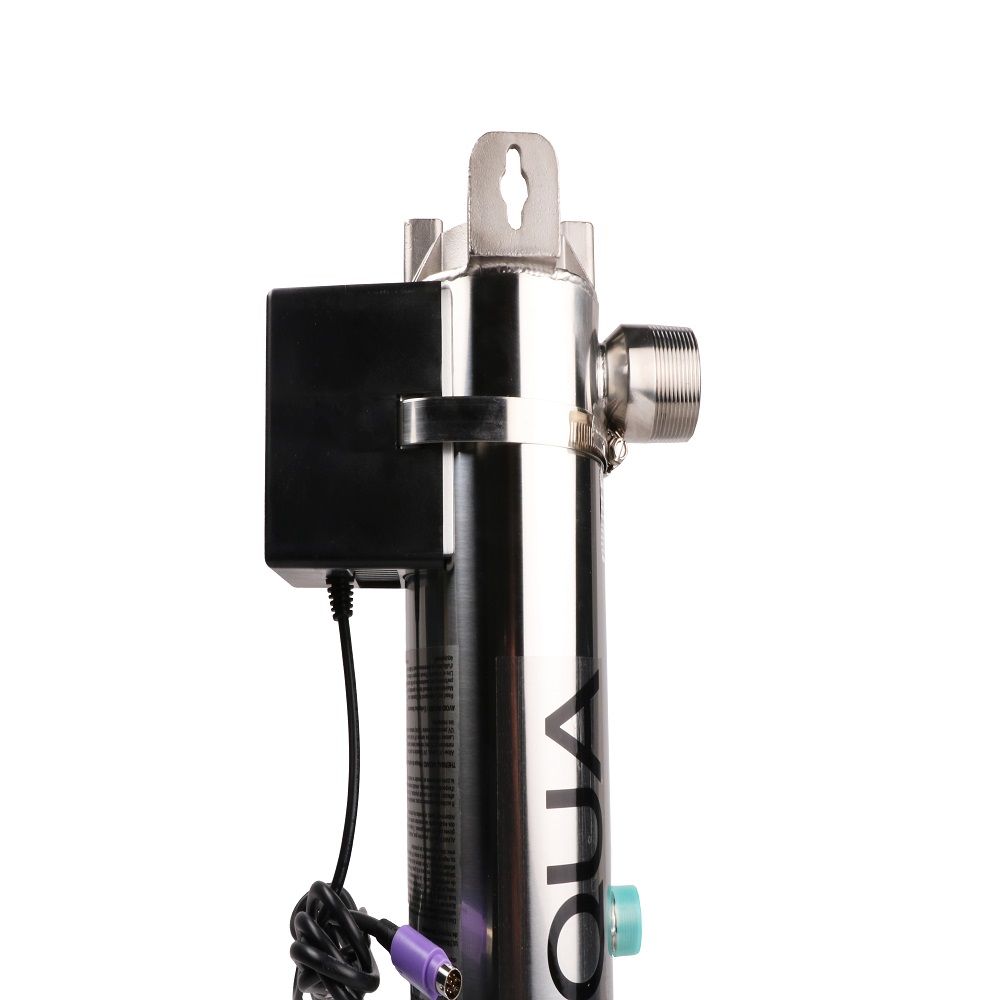

Viqua Pro10 NSF Class A Monitored UV System Powered by UVMax 10 gpm

The Viqua Pro10 UV System Powered by UVMax offers a compact design incorporating plug and play connections, a sophisticated UV monitor, and a revolutionary flow restrictor. An optional solenoid valve kit can be added to all Viqua Pro10 UV systems, which is equipped with a manual override to make shocking the water lines easy. This system is great for residential and light commercial applications that need Class A NSF certification.

Specifications:

• Reactor Construction: 316 Stainless steel
• Connections: Color coded
• UV lamp has twice the output of current high-output lamps. Lamp last two years, reducing maintenance requirements
• UV monitor has self-diagnostic testing
• Solenoid Valve Kit w/ manual override for shocking the water lines is also available
• CoolTouch fan included
• Flow-Restrictor included
• NSF/ANSI Standard 55 Class A
• Full 5 year warranty

NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems:
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications.Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level.Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
This system is compatible with the 602854 Trojan Lamp and the 602974 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for Pro10 includes:

• Trojan Lamp (1): 602854
• Trojan Quartz Sleeve (1): 602974
• Trojan O-Rings (2): 2233

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	316 Stainless Steel
Features	UV Intensity Monitor Audible Lamp Failure
Frequency Rate	50/60 Hz
Inlet Connection	1-1/4" MPT 1" FPT
Max Pressure (Psi)	100
Min Pressure (Psi)	10
Outlet Connection	1-1/4" MPT,1" FPT
Power	120 Watts
Size	1-1/4" 1"
Connection Type	Male (MPT) Female (FPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Flow Rate	10 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V,230 V
Shipping Dimensions
Shipping Length	29.25 in.
Shipping Width	15 in.
Shipping Height	8 in.
Product Weight & Dimensions
Power Supply Dimensions	13" x 6-1/2"
Product Height	8 in.
Product Length	29.25 in.
Product Width	15 in.
Product Weight (lbs)	25.55
